Best Price for Injection Molding Machine For Air Filters - Automatic Bullet 0.01Mpa Polyurethane Casting Machine – Polyurethane
Best Price for Injection Molding Machine For Air Filters - Automatic Bullet 0.01Mpa Polyurethane Casting Machine – Polyurethane Detail:
| Processing Type: | Foaming Machine, Foaming Machine | Condition: | New |
|---|---|---|---|
| Product Type: | Foam Net | Machine Type: | Foaming Machine |
| Voltage: | 380V | Dimension(L*W*H): | 2300*2000*2300 Mm |
| Power (kW): | 25~31kW | Weight (KG): | 2000 KG |
| Warranty: | 1 YEAR | After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support |
| Key Selling Points: | Automatic | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey, Pakistan, India | Showroom Location: | Turkey, Pakistan, India |
| Applicable Industries: | Manufacturing Plant | Product Name: | Pu Polyurethane Elastomer Casting Machine |
| Mix Head: | Mix Evenly, No Bubble | Injection Pressure: | 0.01-0.1Mpa |
| Injection Time: | 0.5~99.99S (correct To 0.01S) | Temperature Control: | ±2℃ |
| Repeated Injection Accuracy: | ±1% | Color: | Deep Blue/cream Color/red |
| Ratio Between A And B: | 1 : 1 | Equipped Pipe Length: | 15meters Heating Pipe |
| Port: | Ningbo For Pu Polyurethane Elastomer Casting Machine | ||
| High Light: |
0.01Mpa PU casting machine, 25kW Polyurethane Casting Machine, 0.01Mpa Polyurethane Casting Machine |
||

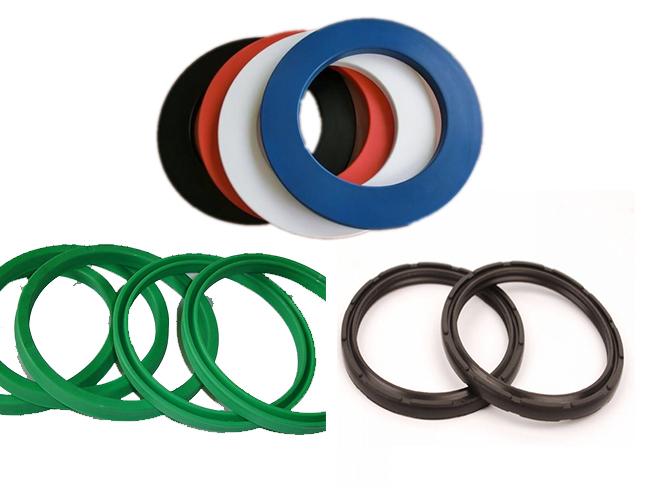

Automatic Bullet Polyurethane PU Gasket Elastomer Casting MachineApplication: Because polyurethane seals have good oxidation resistance, and also have excellent cutting properties. Therefore, it is widely used in seals, wipers, support rings and other products, and this seal is well received by the industry, and it has been praised continuously.
PU Elastomer Casting Machine Introduction:
PU elastomer casting machine is used to produce castable polyurethane elastomers with MOCA or BDO as chain extenders. PU elastomer casting machine is suitable for manufacturing various kinds of CPUs such as seals, grinding wheels, rollers, screens, impellers, OA machines, wheel pulleys, buffers, etc. product.
| No. | Item | Technical Parameter |
| 1 | Injection Pressure | 0.01-0.1Mpa |
| 2 | Injection flow rate | 85-250g/s 5-15Kg/min |
| 3 | Mixing ratio range | 100:10～20(adjustable) |
| 4 | Injection time | 0.5～99.99S (correct to 0.01S) |
| 5 | Temperature control error | ±2℃ |
| 6 | Repeated injection precision | ±1% |
| 7 | Mixing head | Around 6000rpm, forced dynamic mixing |
| 8 | Tank volume | 250L /250L/35L |
| 9 | Metering pump | JR70/ JR70/JR9 |
| 10 | Compressed air requirement | Dry, oil free P:0.6-0.8MPa Q:600L/min(Customer-owned) |
| 11 | Vacuum requirement | P:6X10-2Pa Speed of exhaust:15L/S |
| 12 | Temperature control system | Heating: 31KW |
| 13 | Input power | Three-phrase five-wire,380V 50HZ |
| 14 | Rated power | 45KW |
| 15 | Swing arm | Fixed arm, 1 meter |
| 16 | Volume | About 2000*2400*2700mm |
| 17 | Color (selectable) | Deep blue |
| 18 | Weight | 2500Kg |
Product Features of PU Elastomer Casting Machine:
High temperature low speed high precision metering pump, metering accuracy, random error within ±0.5%. The output of material is adjusted by frequency converter and frequency conversion motor, the pressure is high precision, and the speed ratio is simple and fast. High performance mixing device, adjustable pressure, accurate material output synchronization, uniform mixing; New mechanical seal structure to avoid backflow problems. High efficiency vacuum device with special mixing head ensures no bubbles. Heat conduction oil adopts electromagnetic heating mode, high efficiency and energy saving; Multi-point temperature control system, temperature stability, random error <±2℃. PLC and touch screen man-machine interface control pouring, automatic cleaning and washing, air purification, stability
Performance. Strong operability, can automatically identify, diagnose, alarm abnormal conditions, abnormal factors display.
The Machine also can be widely used in the production of CUP type PU elastomer items which adopt MOCA or BDO as chain extender,such as CPU wheel,castor,roller,sieve plate,impeller,seal ring,shock absorber,dumbell and so on.
High Temperature Elastomer Machine Application
Medium Temperature Elastomer Machine Application
