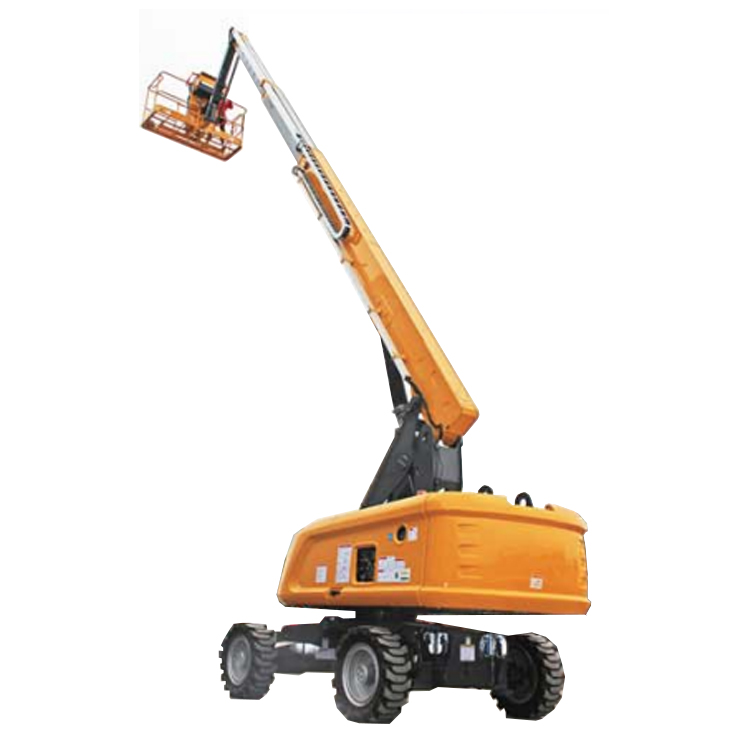

Self Propelled Straight Arm Lifting Platform Straction Aerial Working Platform
Feature
Diesel straight arm aerial work platform can adapt to specific operating environment, that is, it can work in humid, corrosive, dusty, high temperature and low temperature environment.
The machine has the function of automatic walking. It can travel at fast and slow speeds under different working conditions. Only one person can operate the machine to continuously complete lifting, forwarding, retreating, steering, and rotating movements when working at heights. Compared with traditional hydraulic plattforms Greatly improve work efficiency, reduce the number of operators and labor intensity .

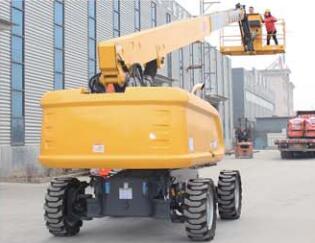

Detail
Specification
| Product name | 19m Self propelled straight arm lifting platform | 22m Self propelled straight arm lifting platform | 30m Self propelled straight arm lifting platform |
|
Model |
FBPT19C | FBPT22C | FBPT30C |
| Load/kg |
250 |
250 |
250 |
| Size：length, width and height（mm) |
9450*2280*2540 |
11100*2490*2810 |
13060*2490*3080 |
|
platform size/MM |
1830*760*1100 |
2440*910 |
2440*910 |
| Platform height/m |
19 |
22 |
30 |
|
Weight/kg |
10.237 |
12.022 |
18.89 |
| Working radius(M) |
15.2 |
18.8 |
22.61 |
| Inner turning radius/outer turning radius（m) |
4.3/6.2 |
2.66/5 |
2.62/5.25 |
|
Travel speed (stowed)/travel speed (raised) |
6.3km/h/1.1km/h |
5.2km/h/1.1km/h |
4.5km/h/1.1km/h |
| Fuel tank |
110L |
150L |
150L |
| Turntable rotation |
360° |
360° |
360° |

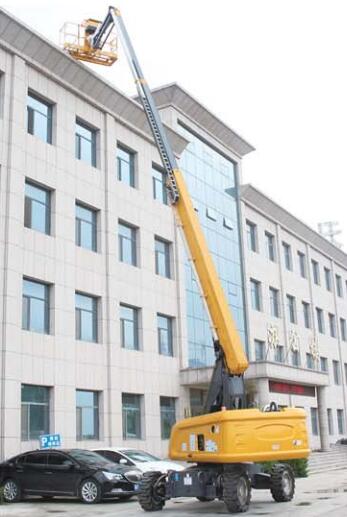

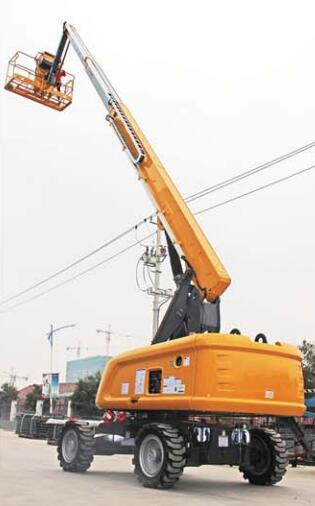

Application
