50 100 Gallon Horizontal Plate Oil Drum Special Pneumatic Mixer

Short Description:


Product Detail

Product Tags



Feature

1. There is no danger of overloading. When the pneumatic mixer is overloaded, it will not cause damage to the mixer itself, and the temperature of the fuselage will not rise. It can work continuously for a long time with full load.
2. It is suitable for stirring various open-type material tanks, and is easy to disassemble and assemble.
3. Double aluminum alloy paddles, large stirring circulation.
4. Use compressed air as power, no sparks, explosion-proof.
5. The speed can be adjusted steplessly, and the speed of the motor is regulated by the pressure of the air supply and the flow valve.
6. It can be fixed on the barrel wall, and the stirring process is stable.
7. Easy to operate, easy to maintain and overhaul

100加仑油桶 50加仑油桶



Specification

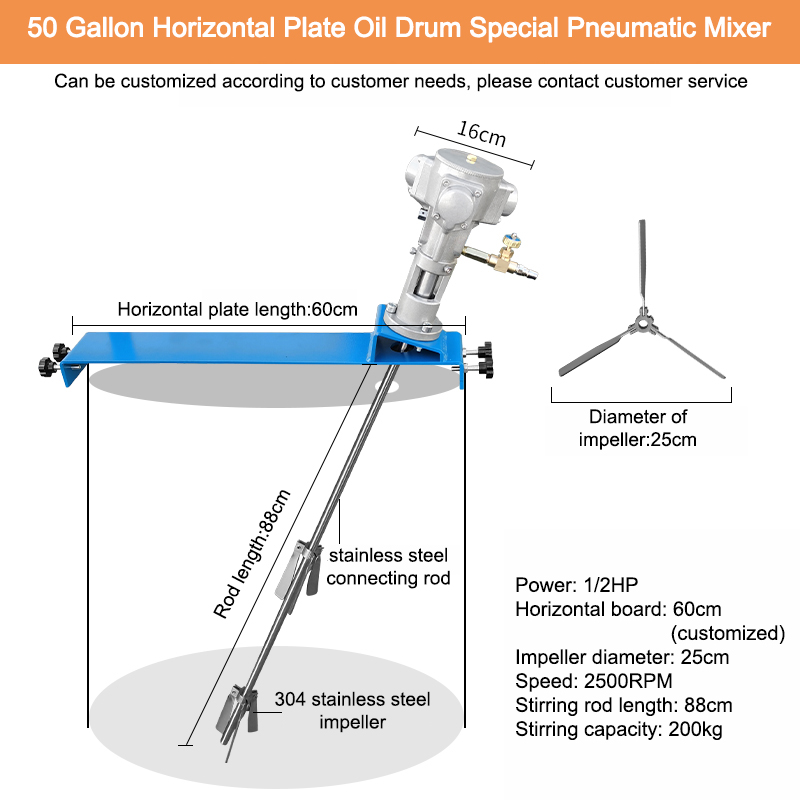

Power 1/2HP
Horizontal board 60cm(customized)
Impeller diameter 25cm
Speed 2500RPM
Stirring rod length 88cm
Stirring capacity 200kg

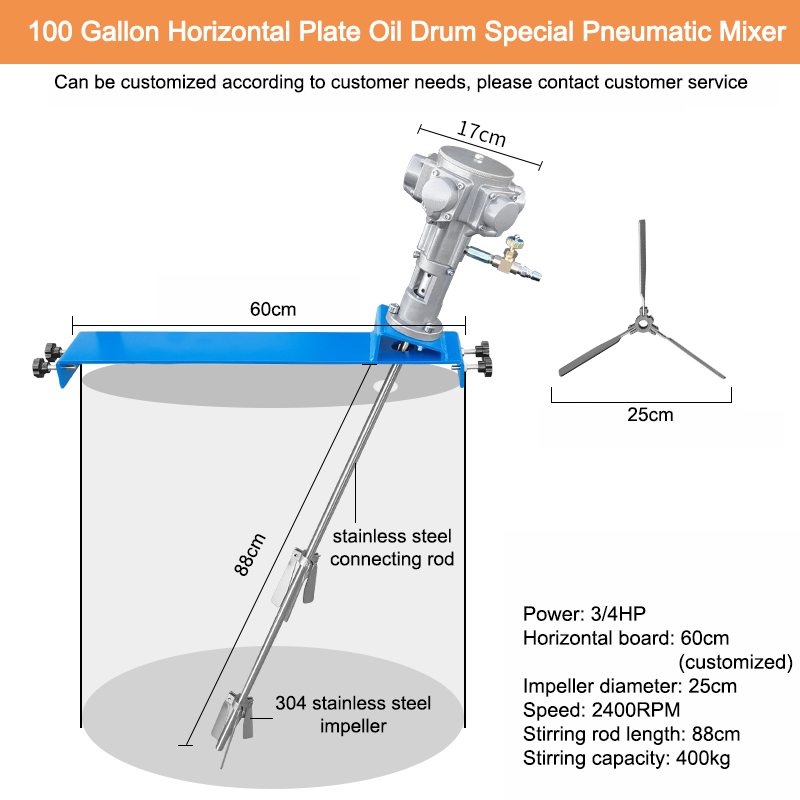

Power 3/4HP
Horizontal board 60cm(customized)
Impeller diameter 25cm
Speed 2400RPM
Stirring rod length 88cm
Stirring capacity 400kg
