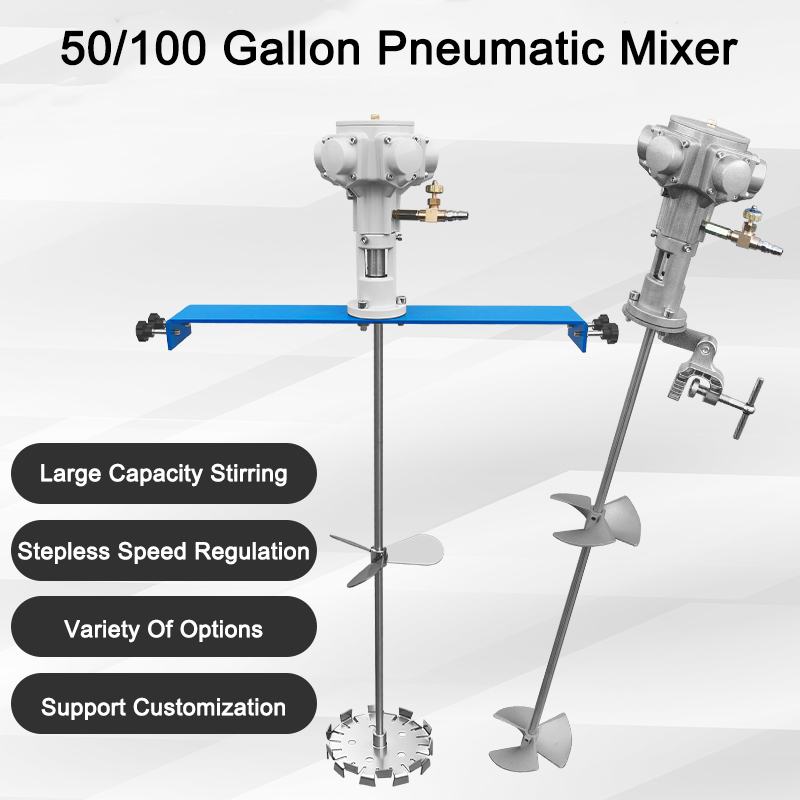

50 100 Gallons Pneumatic Agitator Mixer Mixing Machine For 200 400 Liters Container
Feature
1. The fixed horizontal plate is made of carbon steel, the surface is pickled, phosphating, and painted, and two M8 handle screws are fixed at each end of the horizontal plate, so there will be no shaking or shaking when stirring.
2. The structure of the pneumatic mixer is simple, and the connecting rod and paddle are fixed by screws; it is easy to disassemble and assemble; and the maintenance is simple.
3. Using compressed air as the power source and air motor as the power medium, no sparks will be generated during long-term operation, explosion-proof, safe and reliable.
4.The mixer can run at full load. When it is overloaded, it will only slow down or stop the speed. Once the load is removed, it will resume operation, and the mechanical failure rate is low.

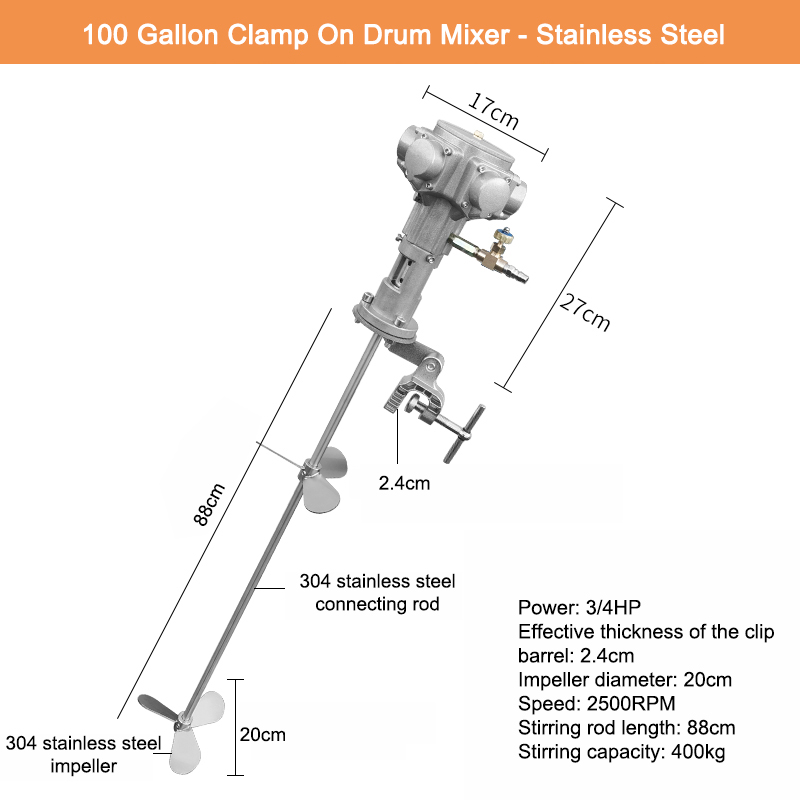

Power | 3/4HP |
Effective Thickness Of The Clip Barrel | 2.4cm |
Impeller diameter | 20cm |
Speed | 2500RPM |
Stirring rod length | 88cm |
Stirring capacity | 400kg |

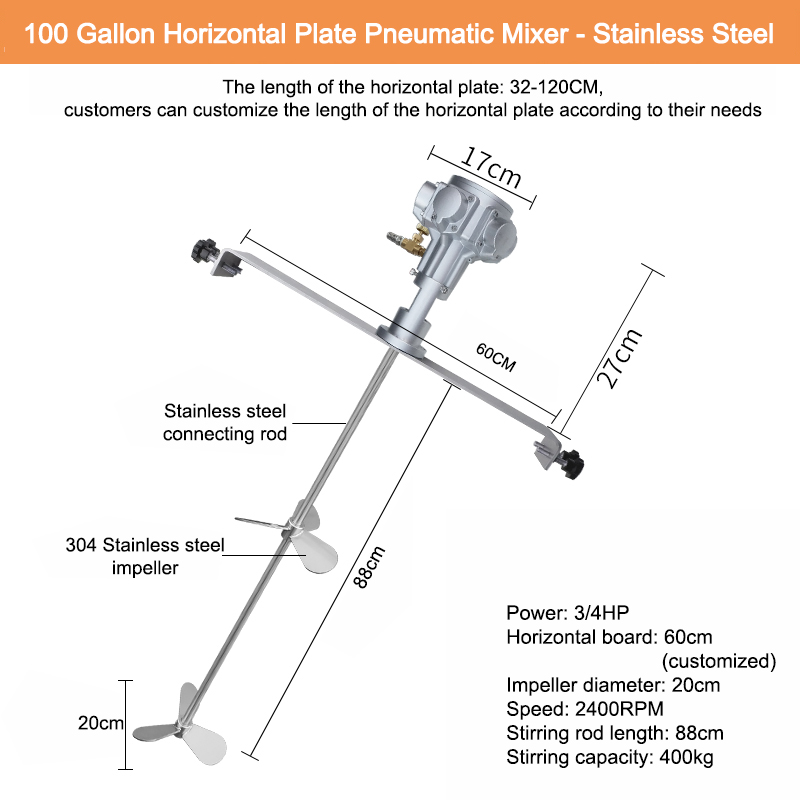

Power | 3/4HP |
Horizontal board | 60cm(customized) |
Impeller diameter | 20cm |
Speed | 2400RPM |
Stirring rod length | 88cm |
Stirring capacity | 400kg |

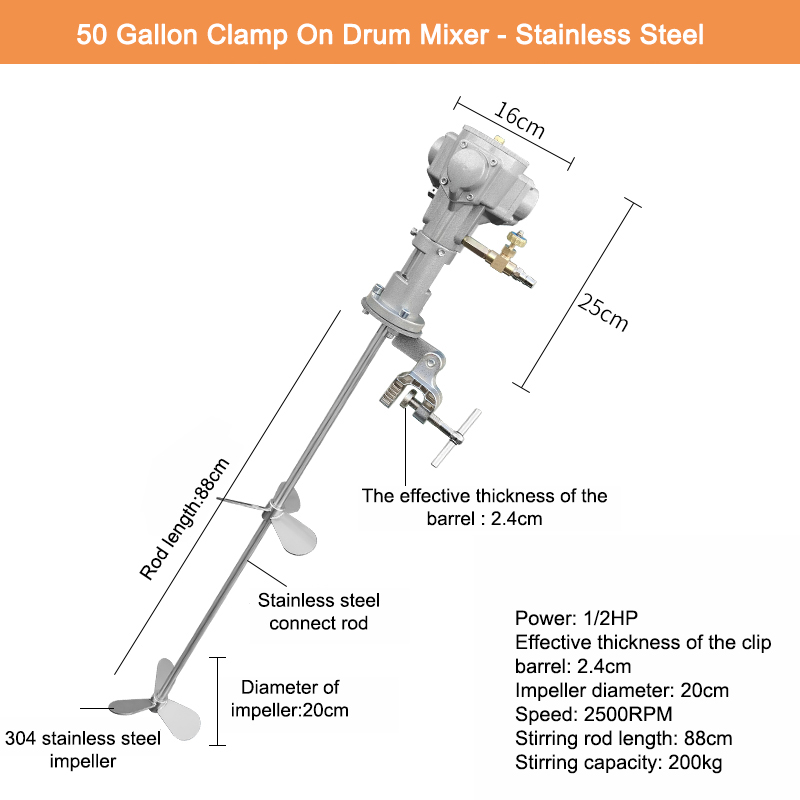

Power | 1/2HP |
Effective Thickness Of The Clip Barrel | 2.4cm |
Impeller diameter | 20cm |
Speed | 2500RPM |
Stirring rod length | 88cm |
Stirring capacity | 200kg |

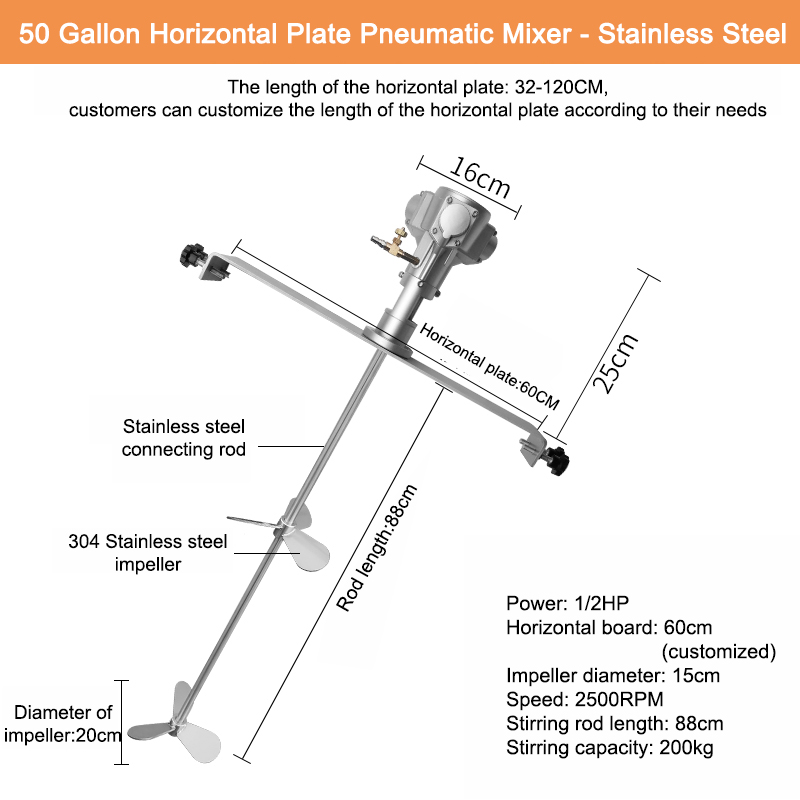

Power | 1/2HP |
Horizontal board | 60cm(customized) |
Impeller diameter | 15cm |
Speed | 2500RPM |
Stirring rod length | 88cm |
Stirring capacity | 200kg |
Application
Widely used in coatings, paints, solvents, inks, chemicals, food, beverages, medicines, rubber, leather, glue, wood, ceramics, emulsions, greases, oils, lubricating oils, epoxy resins and other open materials with medium and low viscosity liquids bucket mixing
