JYYJ-H600D Polyurethane Foam Spraying Machine For Slab Lifting

 Feature

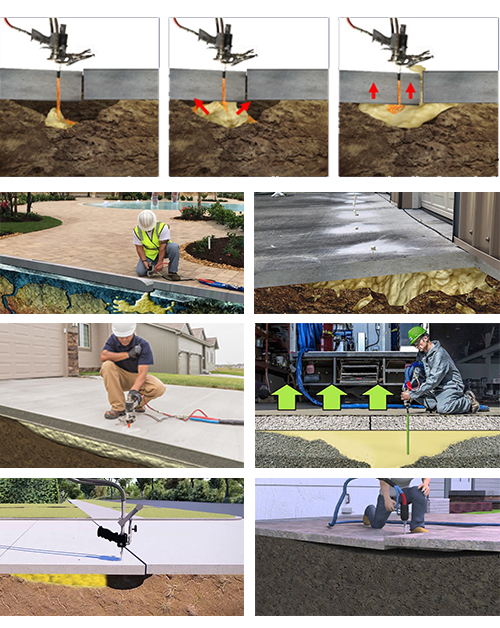

JYYJ-H600D polyurethane spraying machine can be widely used in a variety of environments and materials, polyurethane material application industries: Desalting Water Tanks ,Water Parks Sports Stands,High-Speed Rail ,Indoor Door ,Anti-Theft Door ,Floor Heating Plate , slab lifting, foundation repair, etc.

Details

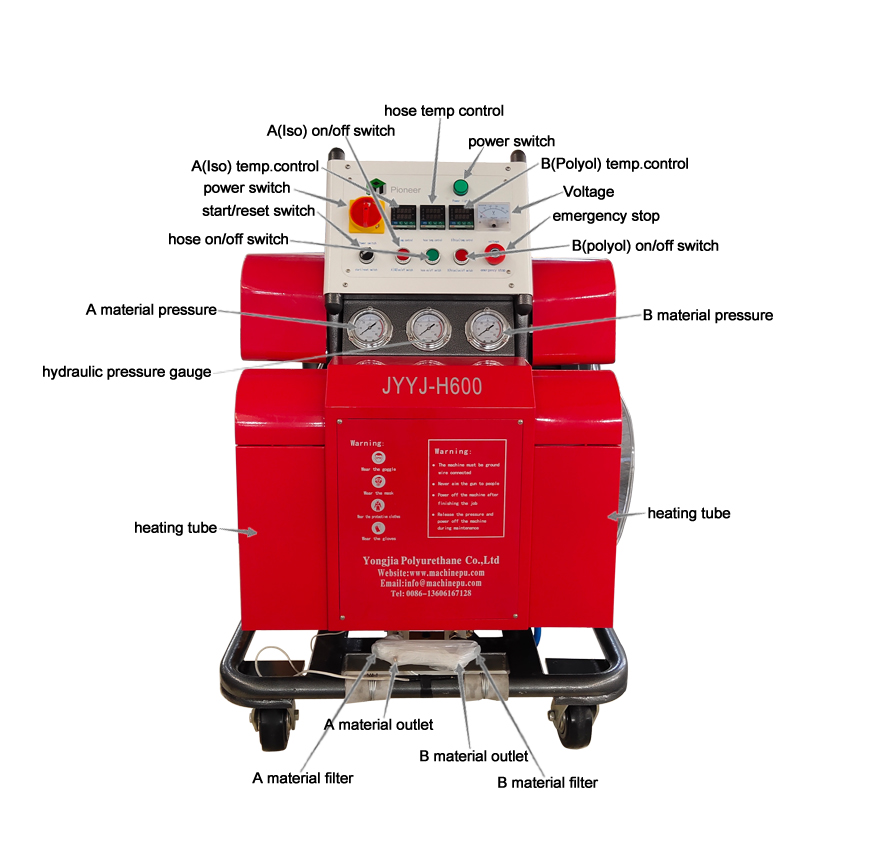

1. Temperature control table: setting and displaying real-time system temperature;
2. Thermostat switch: Controlling on-and-off of the heating system.
3. Start / Reset switch: When you start the machine, making the knob pointing at Start. When the work is done, switching it to the reset direction.
4. Hydraulic pressure indicator: Displaying the output pressure of A/B material when the machine is working
5. Raw material outlet: Outlet of A/B materials and are connected with A/B material pipes;
6. Main power: Power switch to turn on and off of the equipment
7. A/B material filter: filtering impurities of A/B material in the equipment;
8. Heating tube: heating A/B materials and is controlled by Iso/polyol material temp. control
9. Hydraulic station oil-adding hole：When the oil level in oil feed pump is getting low, open the oil-adding hole and add some oil;
10. Emergency switch: Cutting off power rapidly in emergencies;
11. Booster pump: booster pump for A, B material;
12. Voltage: displaying voltage input.

Application
