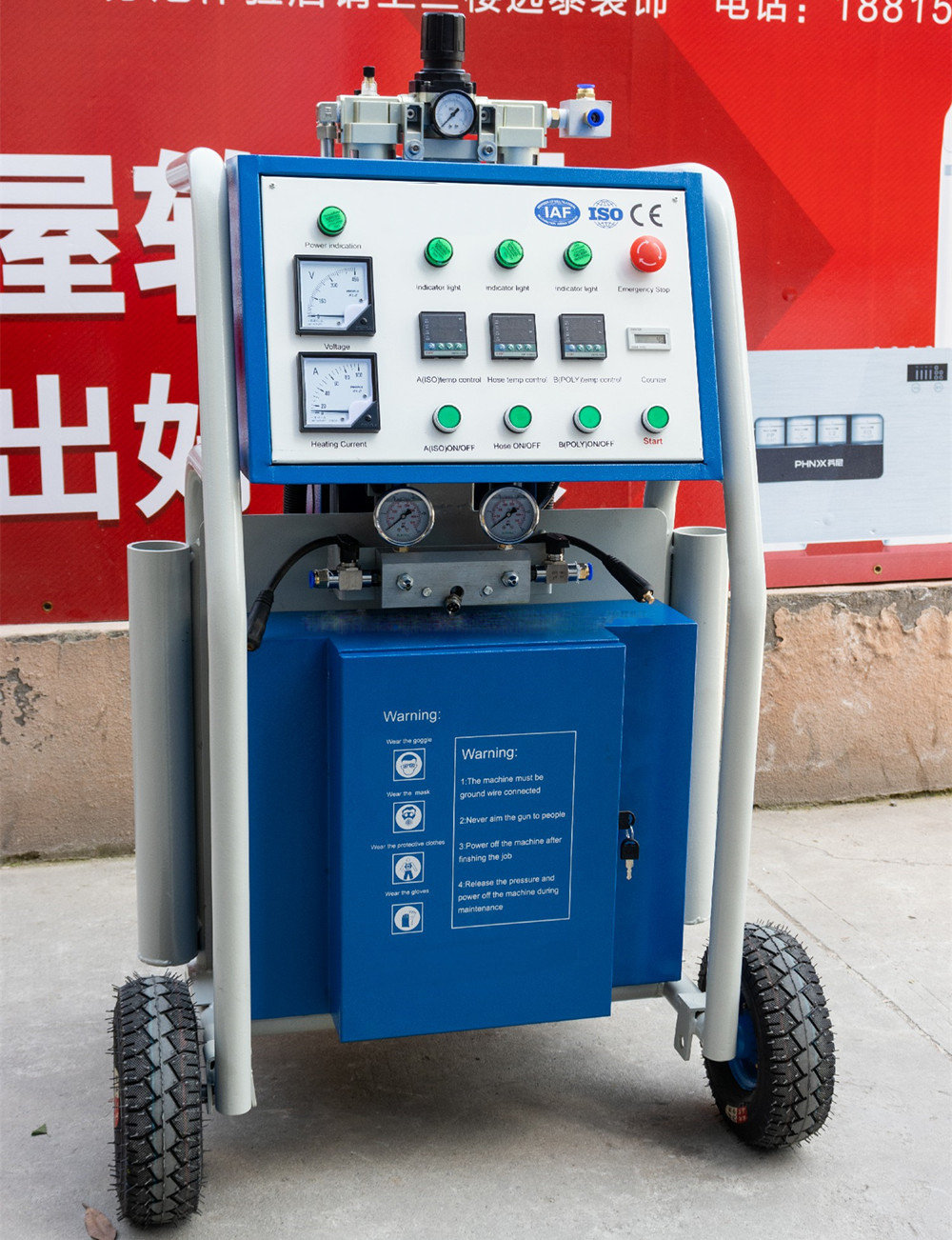

JYYJ-E3 Polyurethane Fome Insulation Spray Machine Pneumatic Polyurethane Spray Foam Machine
Feature
Adpot some technologies from Poly-craft USA brand, heated hose and spray guns can be used on Graco machines and E3 spray machine
The machine contains the electric leakage protector to prevent machine leakage and human electric shock, and improve the safety performance of the machine.
One-button operation and digital display counting system, easy to master the operation method

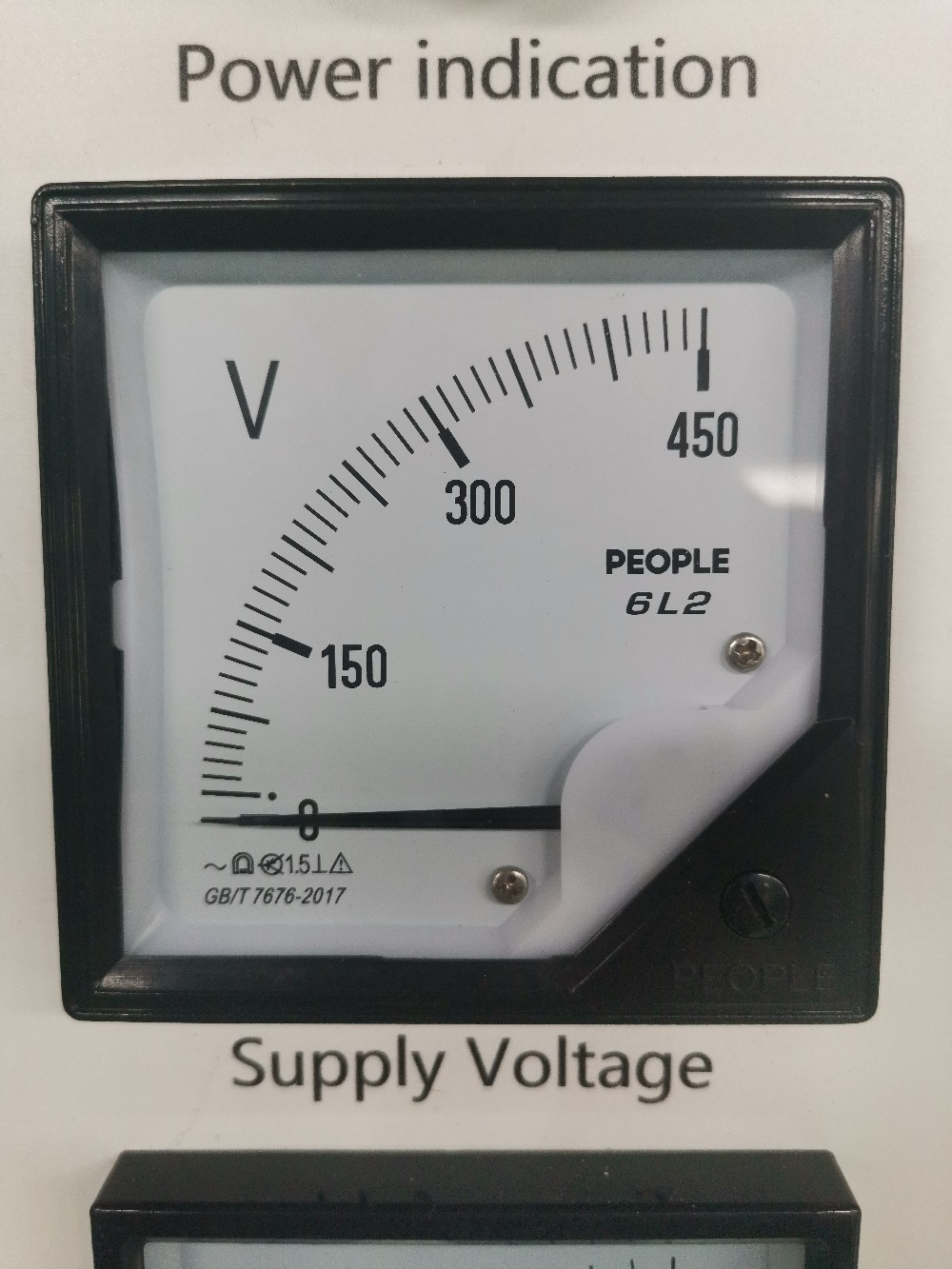

Add Voltmeter and Ammeter，so The voltage and current conditions inside the machine can be detected every time
The heated hose voltage is lower than the human body safety voltage 36v, the operation safety is more higher.

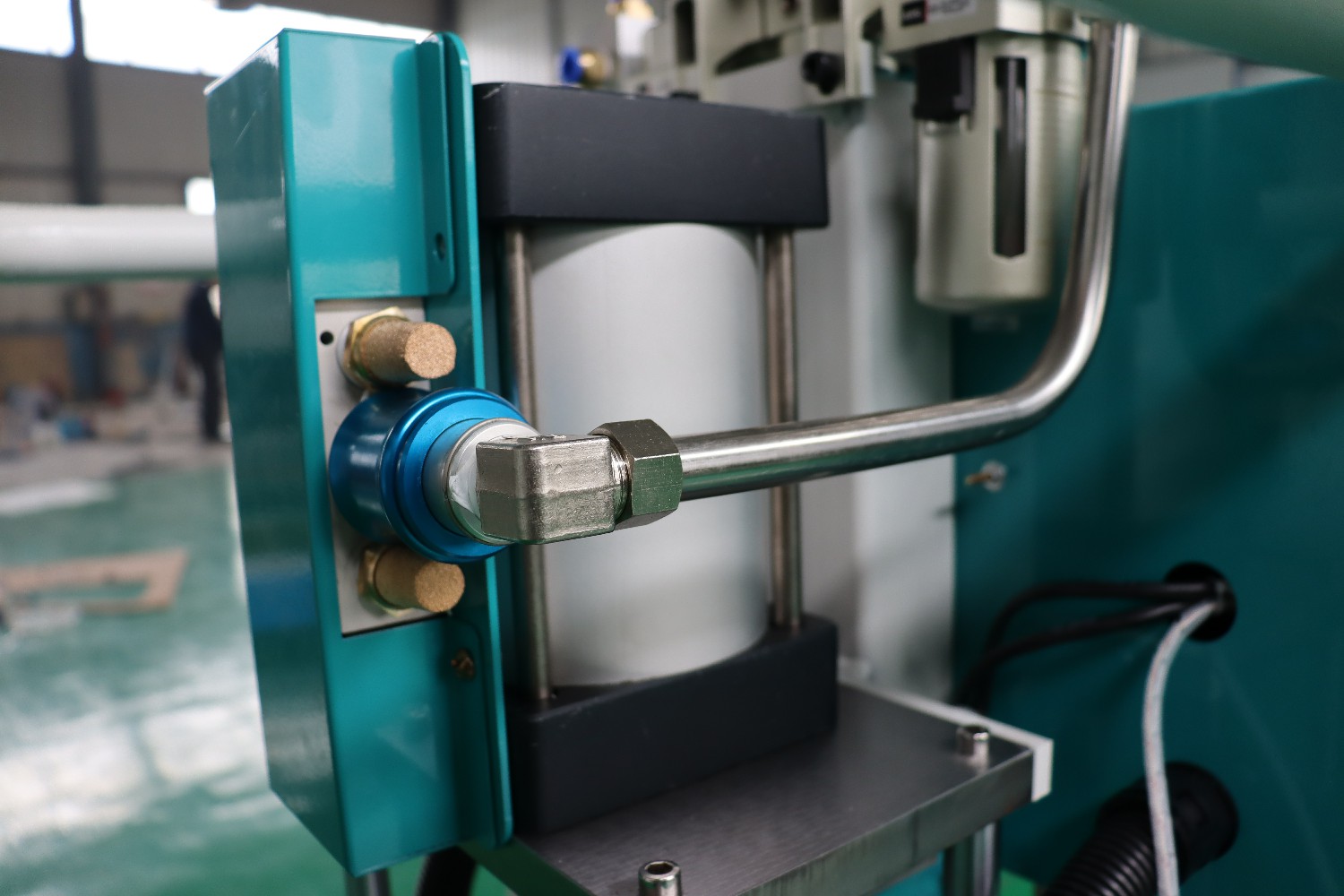

The big size cylinder makes the spraying more powerful and the atomization effect better.
The electric circuit design is more humanized, engineers can check the circuit problems more quickly

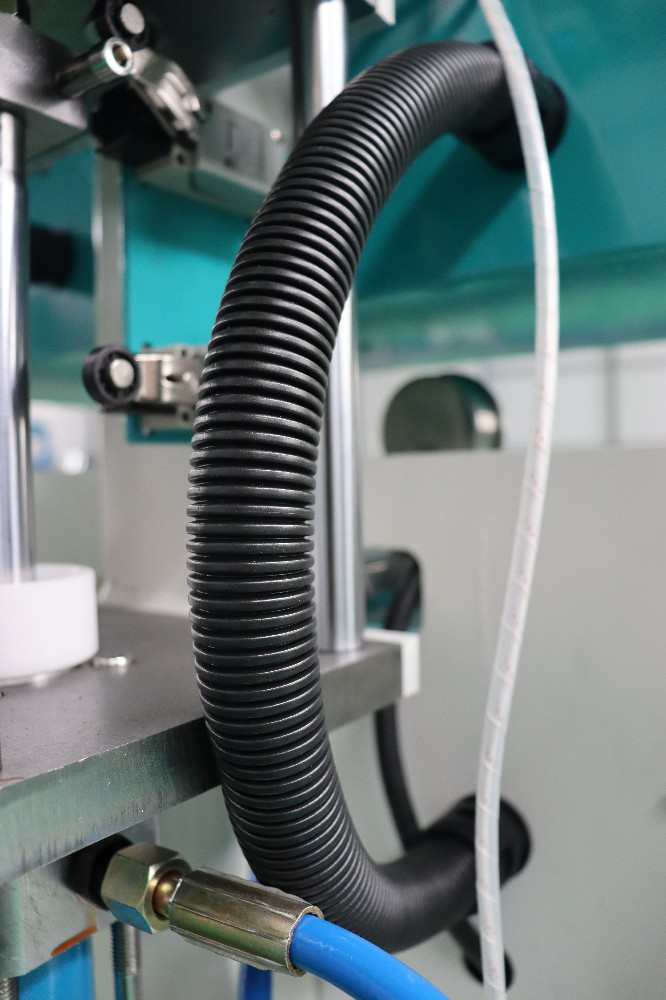

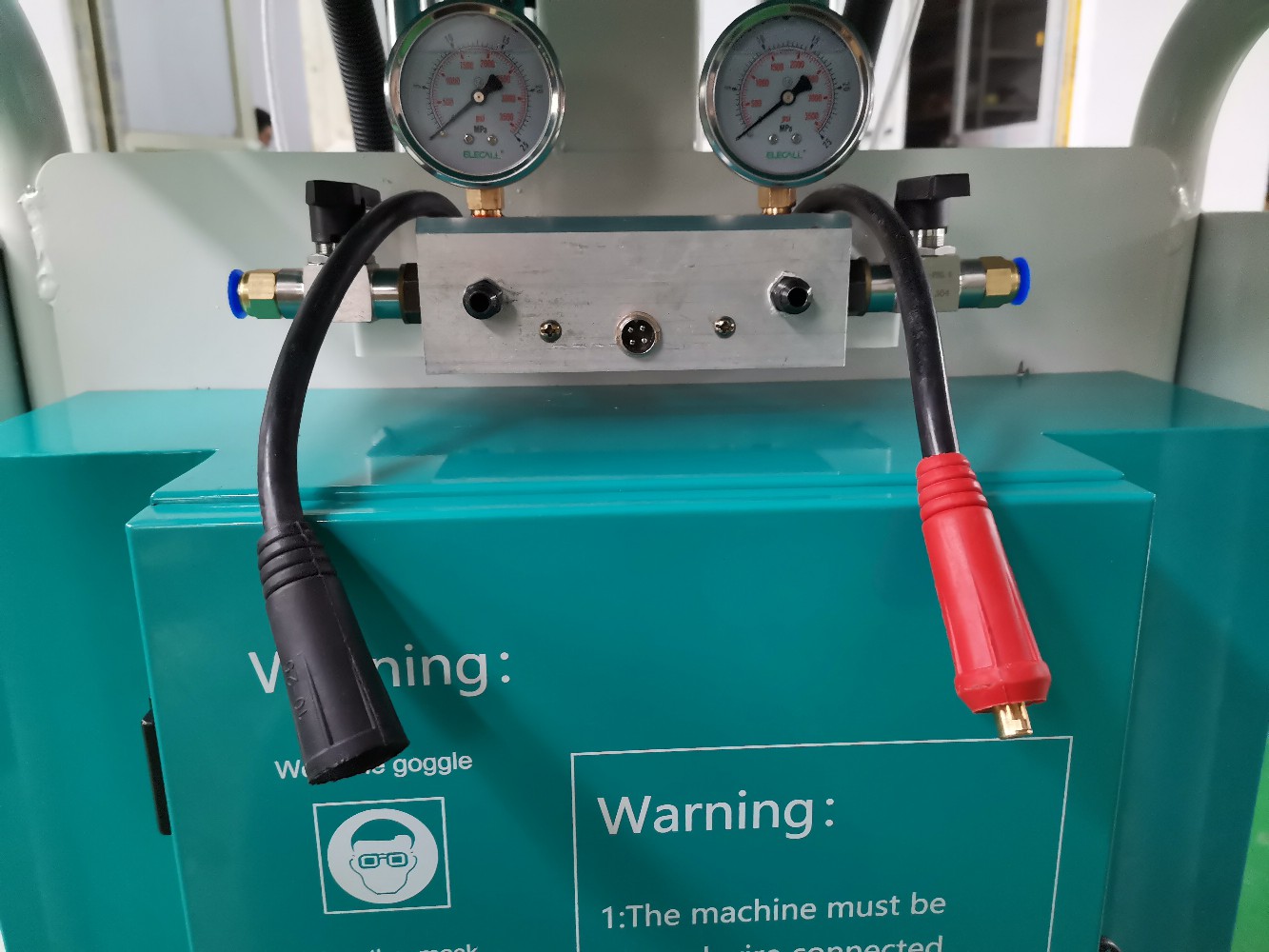

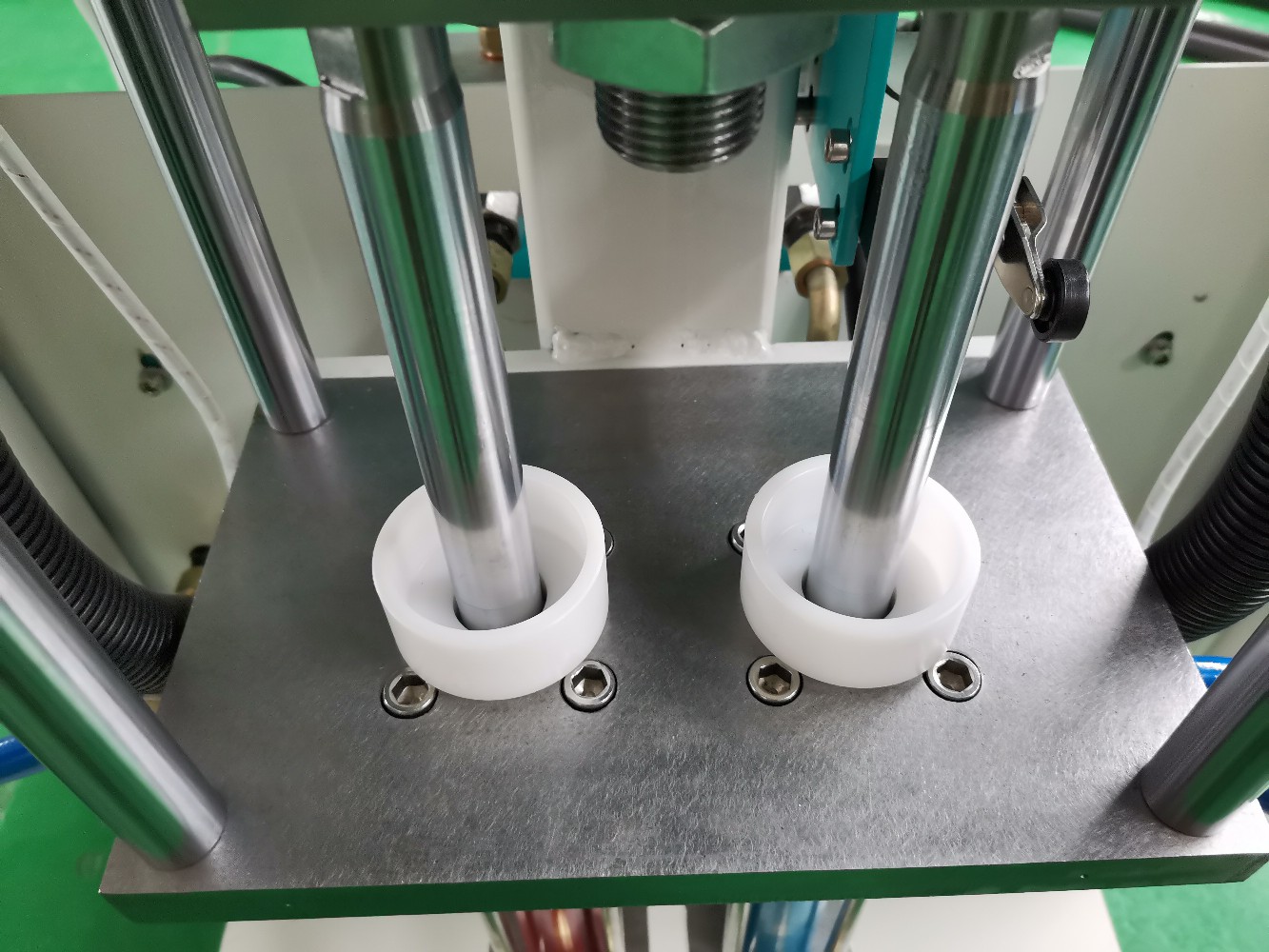

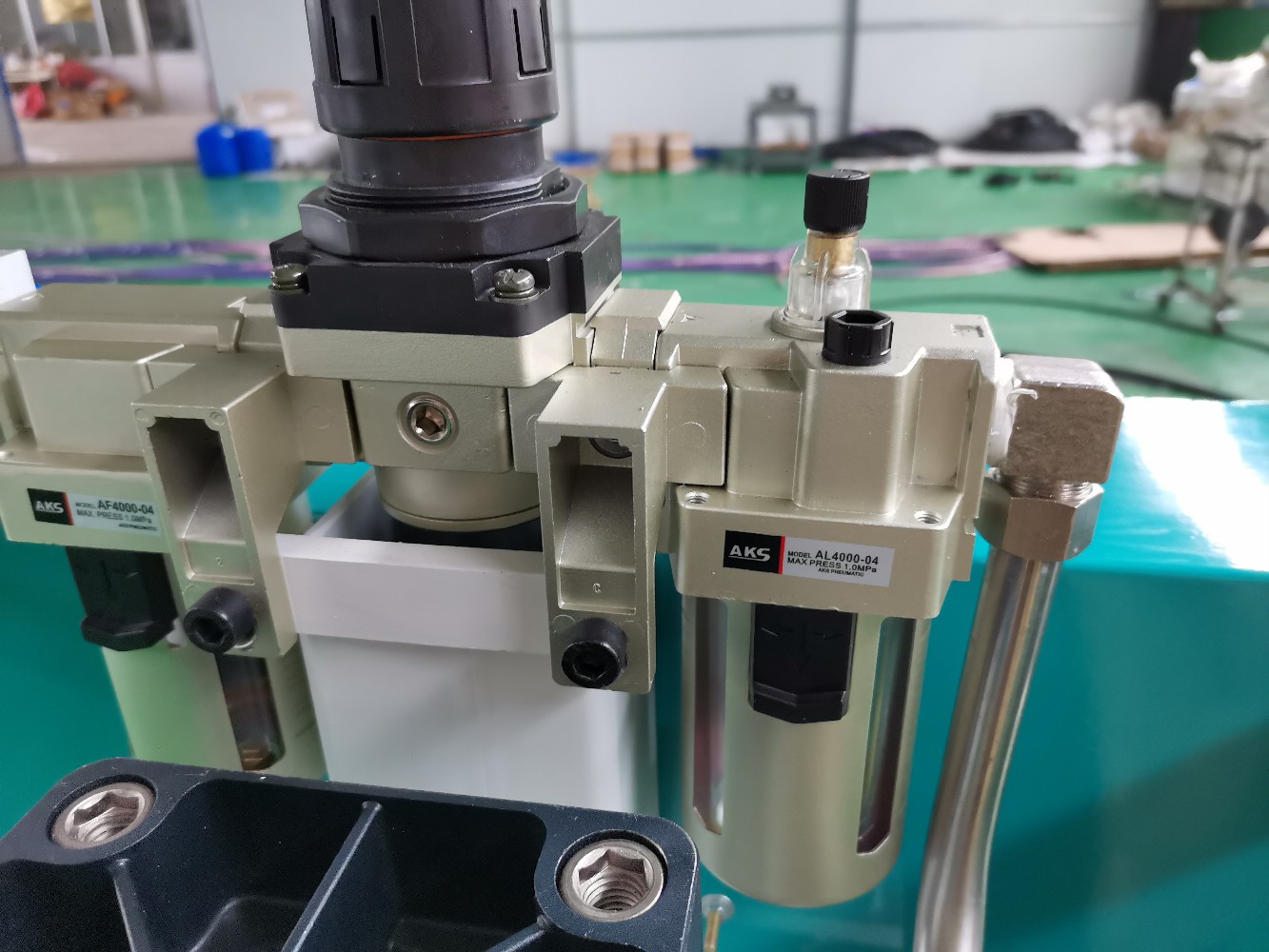

Detail
Specification
| Machine Type | Pneumatic Polyurethane Spray Foam Machine |
| Power source | 110V/220V/380V |
| Heating power | 7.5KW |
| Driven mode | Pneumatic |
| Applicable Industries | Hotels, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction works , Energy & Mining |
| Raw output | 2-12kg/min |
| Core Components | Pump |
| Max.working pressure | 11MPa |
| A and B chemical output ratio | 1:1 |
| Max hose support | 90 meters |
| Machine size | 75*540*1120mm |
| Machine weight | 139kg |

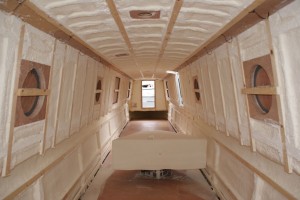

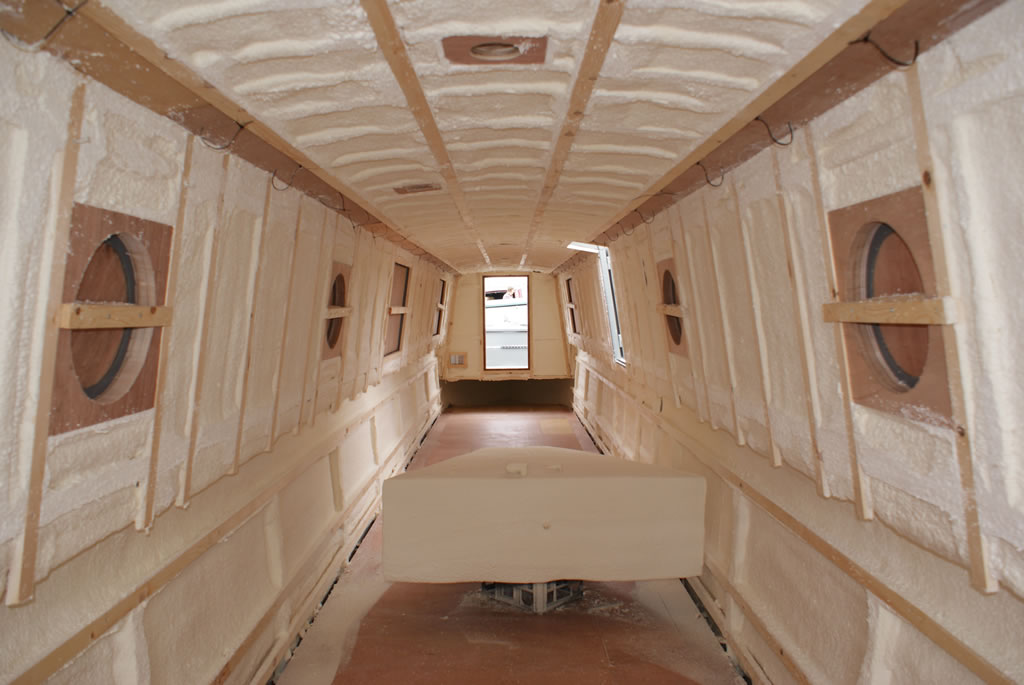

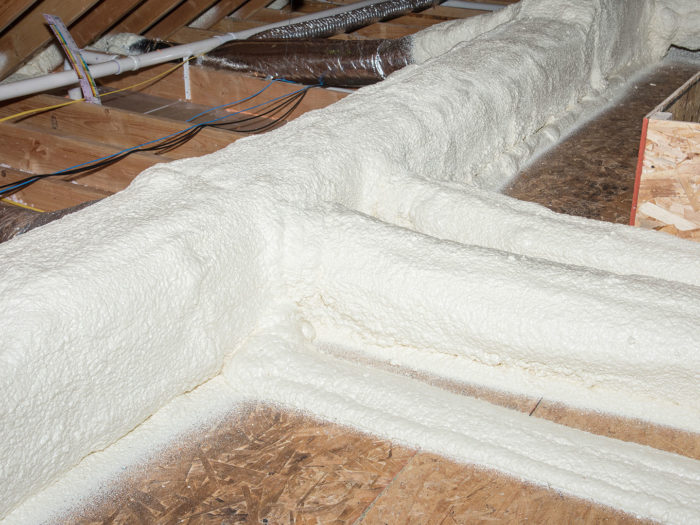

Application

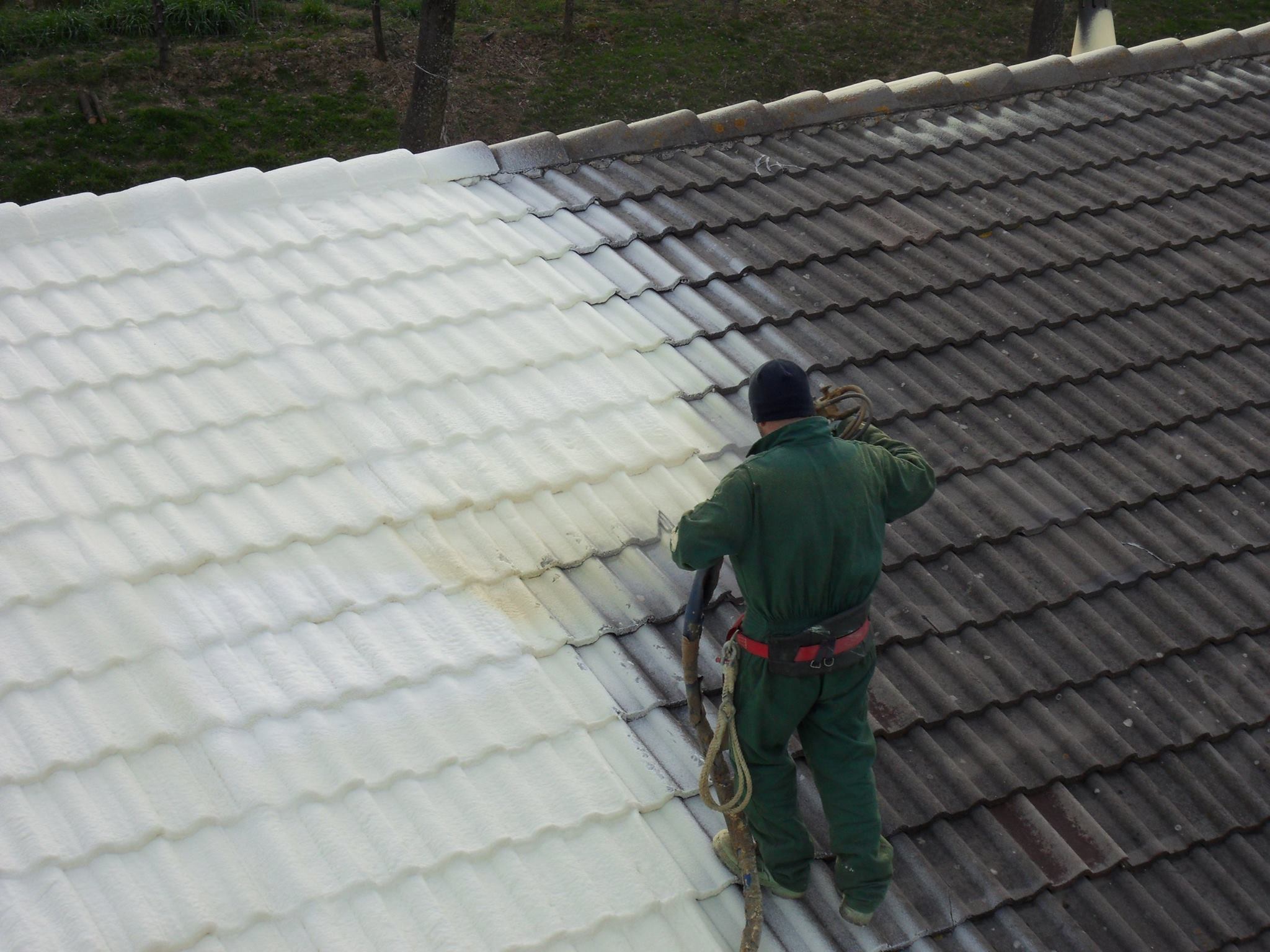

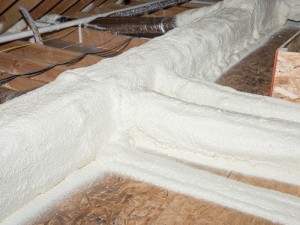

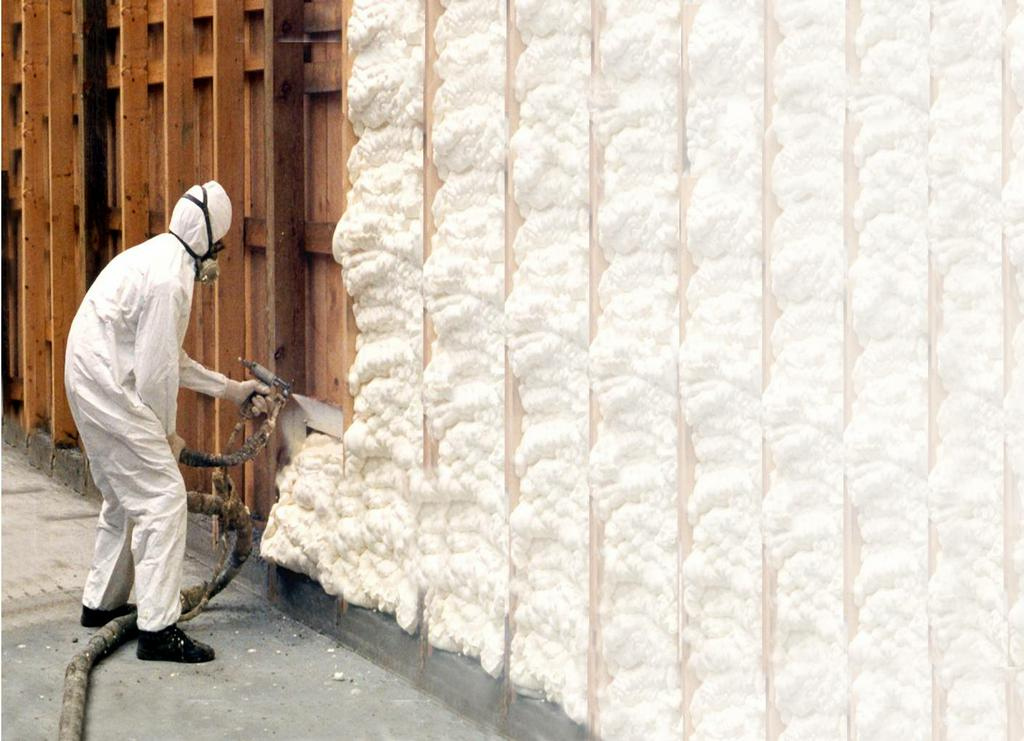

Widely used in industrial maintenance, tunnels, subways, roadbed waterproofing, foam film and television props production,Pipe anticorrosion, roof waterproof, basement waterproof, wear-resistant lining, external wall insulation, etc.
