Self Propelled Crawler Type Lifting Platform Fully Automatic Walking Aerial Working Platform

Short Description:


Product Detail

Product Tags

Feature

Self- propelled scissors lift Has the function of automatic walking machine, integrated design, built -in battery power, meet in different working conditions, no external power supply, no external power traction can lift freely, and the equipment running and steering is also just a person can be completed. The operator only needs to master the control handle to the equipment before the complete equipment forward and backward, steering, fast, slow walk and equal action. Self scissors type lifting platform is mobile and flexible, convenient operation, labor saving, make high-altitude operations more efficient and convenient, is the ideal equipment for high-altitude operations, the safety production of the modern enterprise.

fully automatic walking aerial working platform

Detail

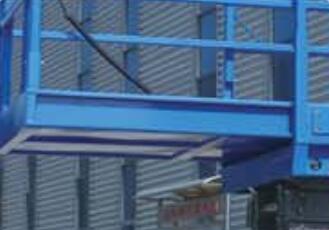

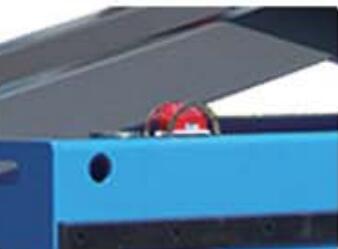

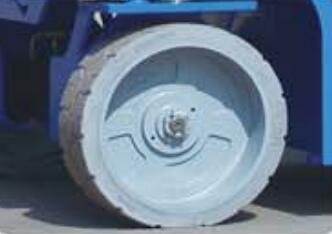

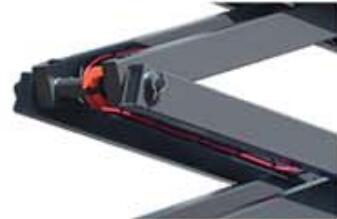

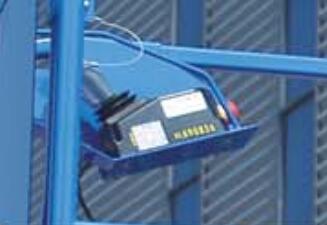

operation handle safety maintenance support solid rubber tire wiwth brake telescopic table warning light

Specification

Product name 4 meters Self propelled crawler type lifting platform 6 meters Self propelled crawler type lifting platform 6 meters Self propelled crawler type lifting platform 8 meters Self propelled crawler type lifting platform 8 meters Self propelled crawler type lifting platform 10 meters Self propelled crawler type lifting platform 10 meters Self propelled crawler type lifting platform 12 meters Self propelled crawler type lifting platform
Load/KG

200

450

450

450

450

320

320

230

Sizelength, width and
heightmm)

1270*790*1820

2470*1390*1745

2782*1581*1745

1470*1390*1865

2782*1581*1865

2440*1390*1995

2780*1581*1995

2782*1581*2130

platform size/MM

1230*655

2270*1120

2270*1120

2270*1120

2270*1120

2270*1120

2270*1120

2270*1120

Platform height/m

4.5

6

6

8

8

10

10

12

Weight/kg

790

2400

2800

2550

2950

2840

3240

3480

Pumping station/kw

1.5

4

4

4

4

4

4

4

Overall appearance Pickling, phosphating and electrophoresis+automobile painting process Pickling, phosphating and electrophoresis+automobile painting process Pickling, phosphating and electrophoresis Pickling, phosphating and electrophoresis Pickling, phosphating and electrophoresis Pickling, phosphating and electrophoresis Pickling, phosphating and electrophoresis Pickling, phosphating and electrophoresis
