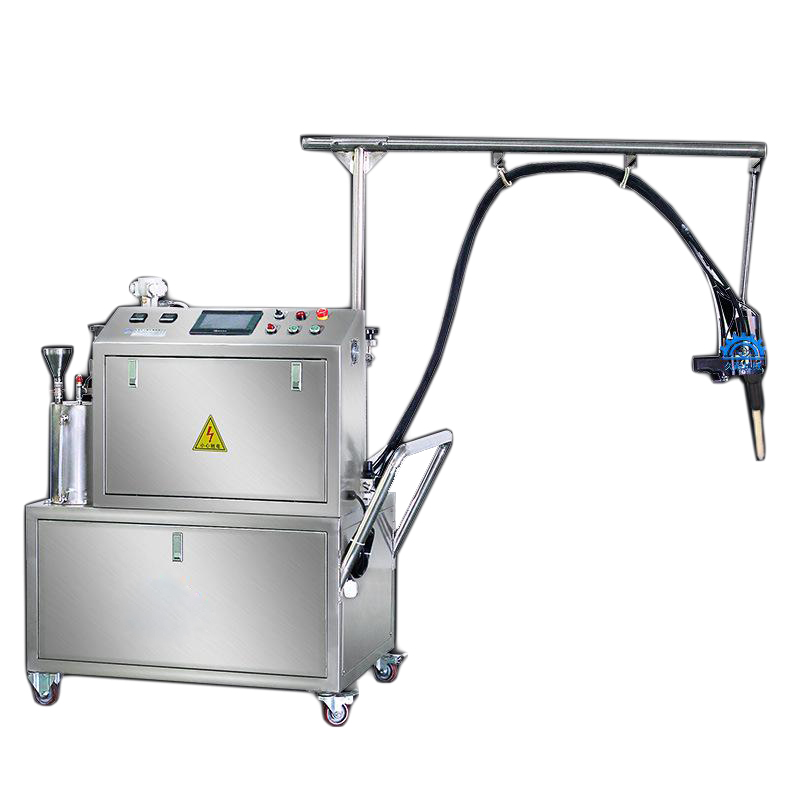

Liquid Colorful Polyurethane Gel Coating Machine PU Gel Pad Making Machine
Feature
It can automatically complete the automatic proportioning and automatic mixing of two-component AB glue. It can manually pour glue for any product within a working radius of 1.5 meters. Quantitative/timed glue output, or manual control of glue output. It is a kind of flexible glue filling machine equipment.
Detail
Tank information:
- A tank is with mixing unit
- A tank: 30L, 1PCS and B tank: 30L, 1PCS
- Tanks are with negative pressure auto feeding system
- Tanks are with liquid level showing unit tank with 304 stainless steel
- Tanks remaining material is with auto alarm system
- Tanks can be vacuum to get out the bubbles inside of the material
Mixing head details：
- Mixing head is made of stainless steel and alloy metal
- The mixing head is static mixing
- The mixing head is easy cleaning and well sealing
Specification
|
Stainless steel machine frame, capacity
|
1-30g/s
|
|
Ratio adjustment
|
machine gearing ratio/electric gearing ratio
|
|
Mixing type
|
static mixing
|
|
Machine size
|
1200mm*800mm*1400mm
|
|
Power
|
2000w
|
|
Working air pressure
|
4-7kg
|
|
Working voltage
|
220V, 50HZ
|
