Polyurethane Pneumatic Spraying Machine For Insulation

Short Description:


Product Detail

Product Tags

Feature

The JYYJ-2A polyurethane spraying machine is designed for polyurethane material spraying and coating.

1. Work efficiency can reach 60%or more, far greater than the 20% efficiency of the pneumatc machine.
2. Pneumatics drive less troubles.
3. Working pressure up to 12MPA and very stable, large displacement up to 8kg/mint.
4.  Machine with soft start, the booster pump is equipped with an overpressure valve. When the pressure exceeds the set pressure, it will automatically release pressure and protect the machine.

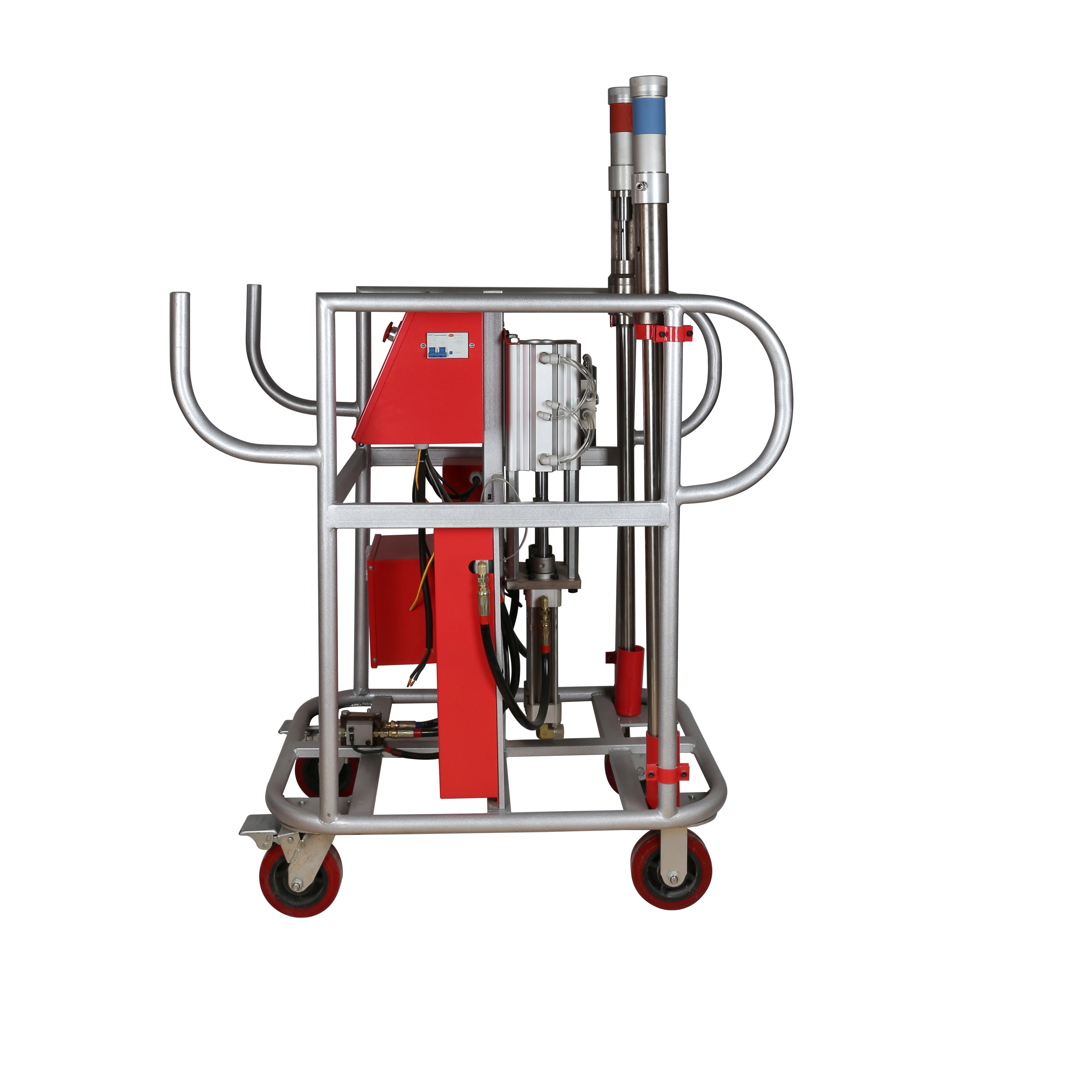

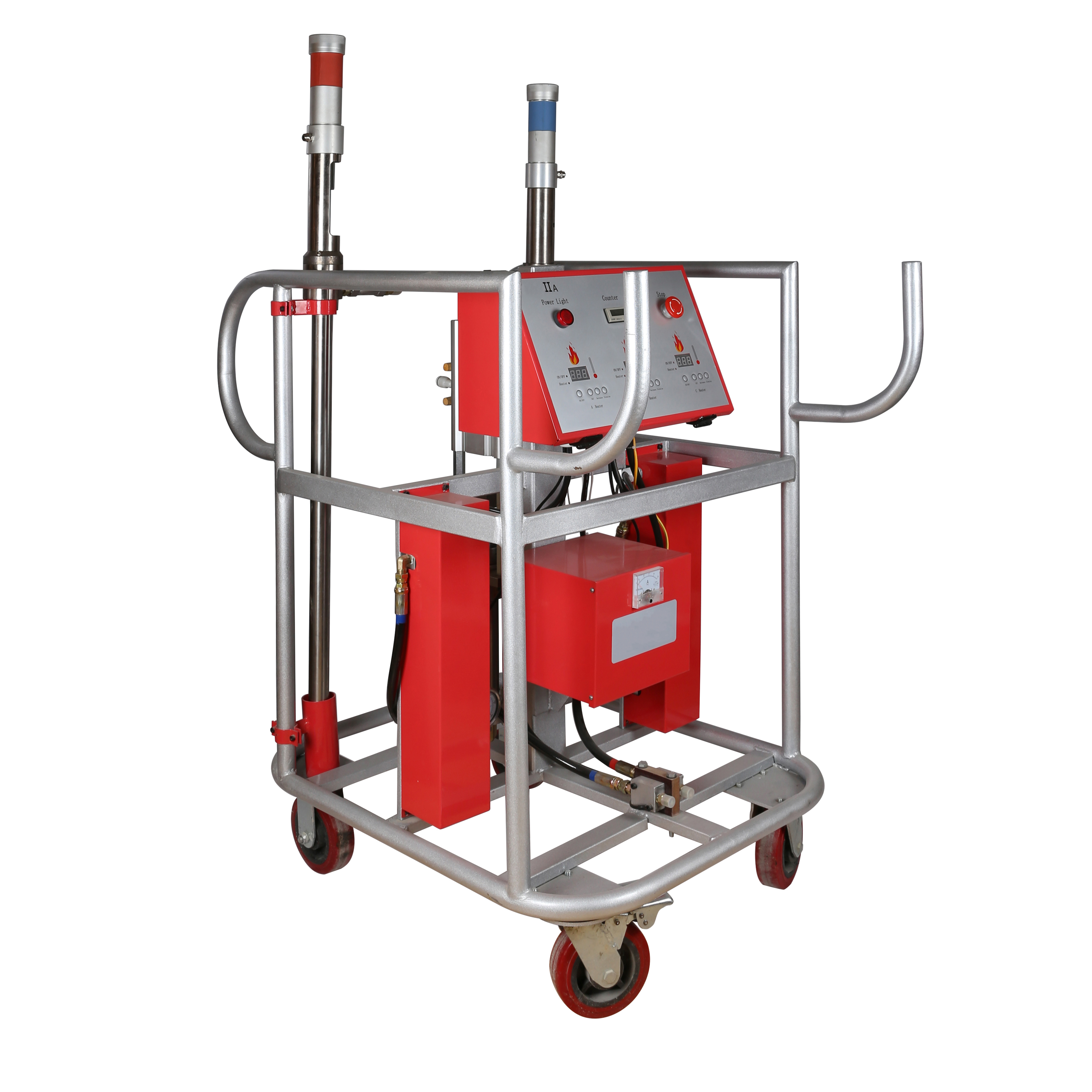

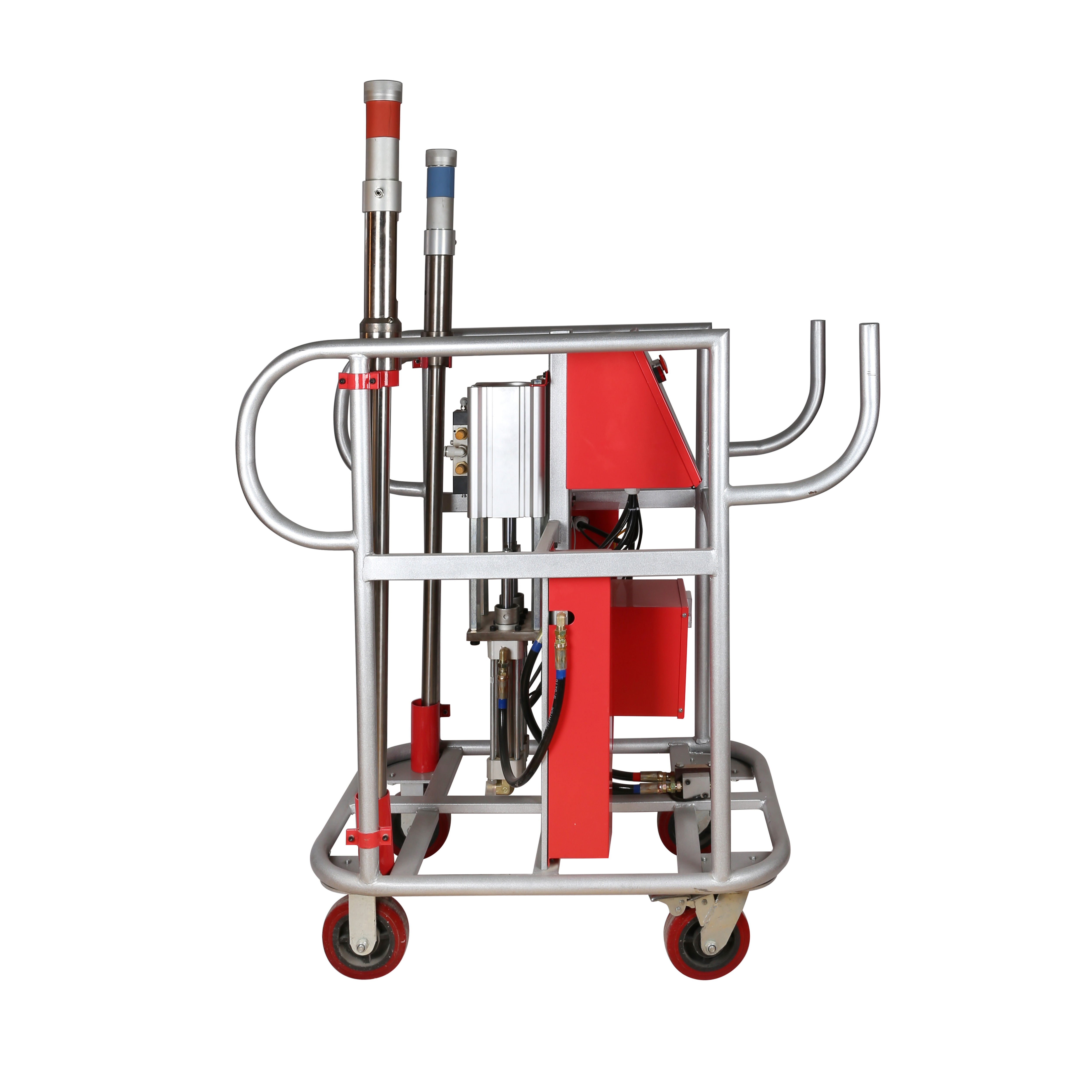

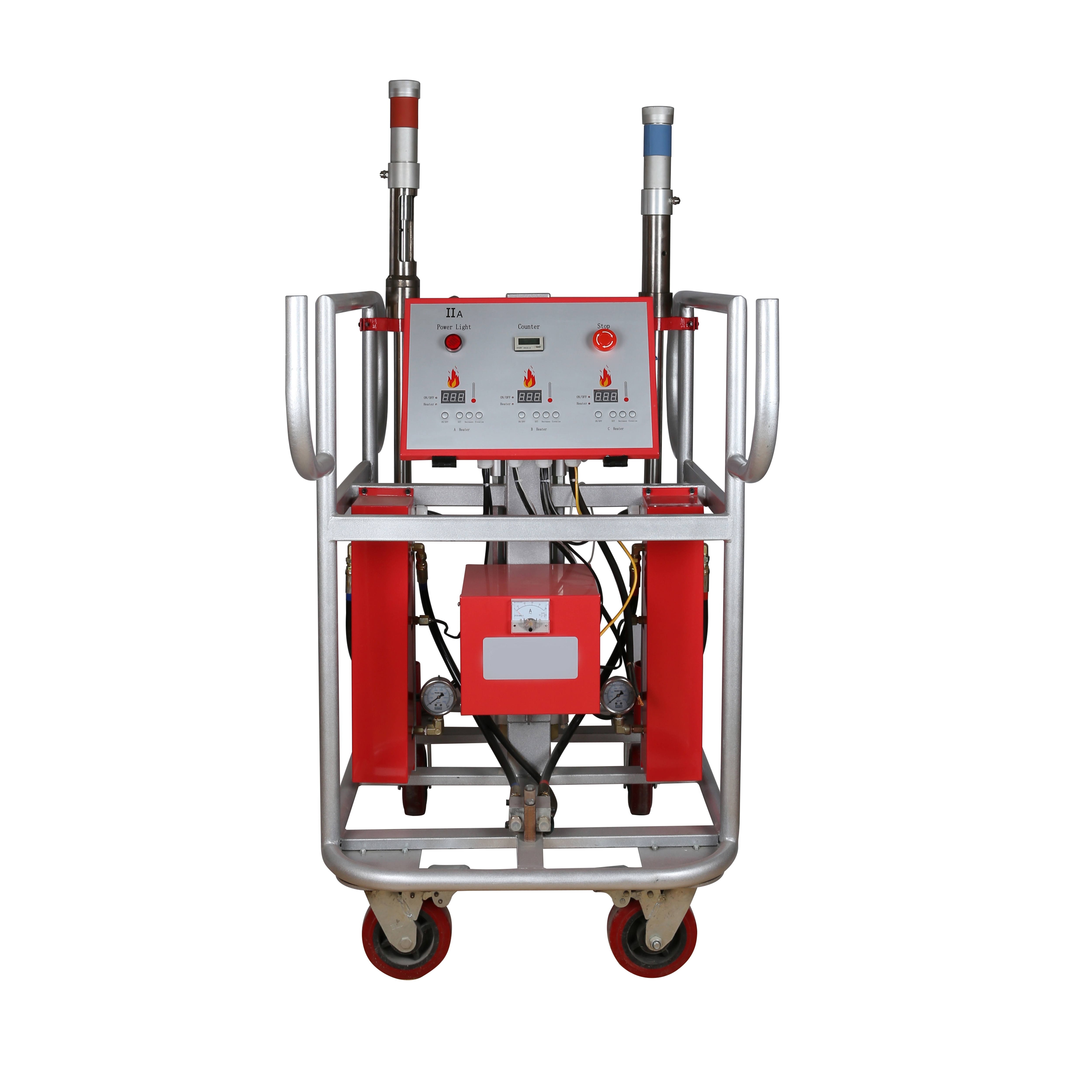

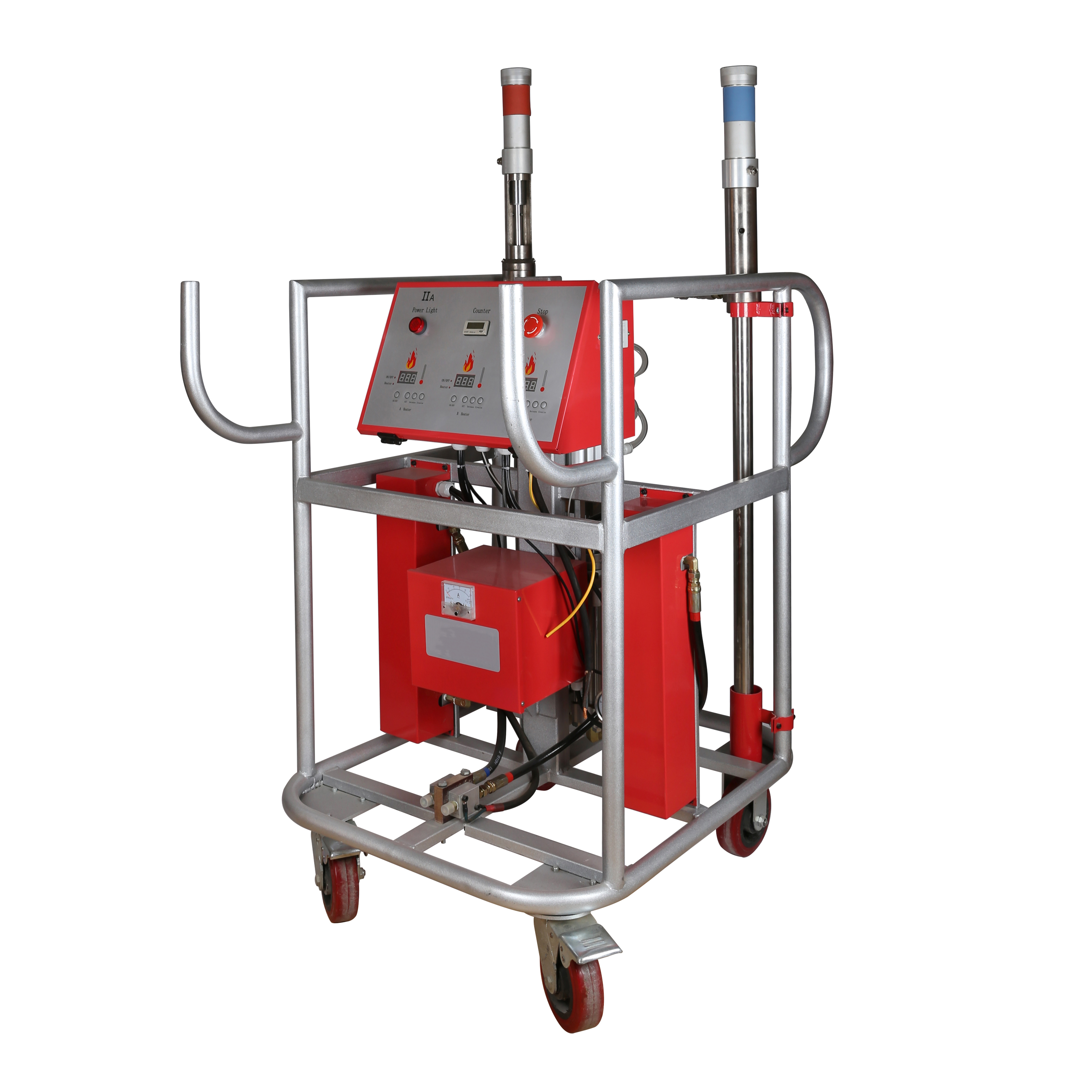

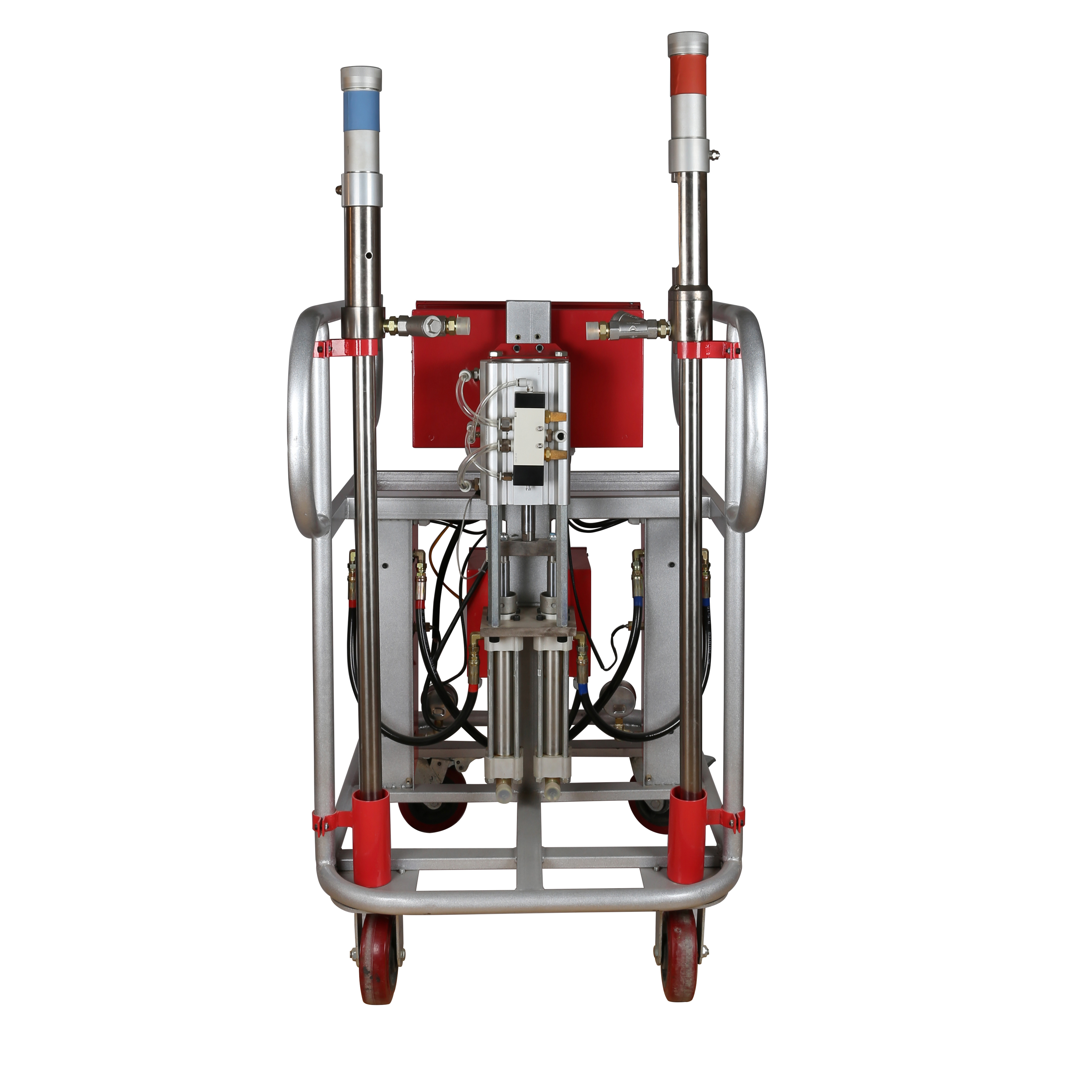

foam spray machine foam spray machine1 foam spray machine2 foam spray machine3 foam spray machine4 foam spray machine5

Specification

Medium Raw Material

polyurathane

Maximum Fluid Temperature

90°C

Maximum Output

8kg/min

Maximum Working Pressure

12Mpa

Heating Power

8kw

Hose Maximum Length

60m

Power Parameters

220V-30A

Drive Method.

pneumatic

Volume Parameter

1 050*680*1100

Package Dimensions.

770* 1220*1060

Net Weight

115kg

Application

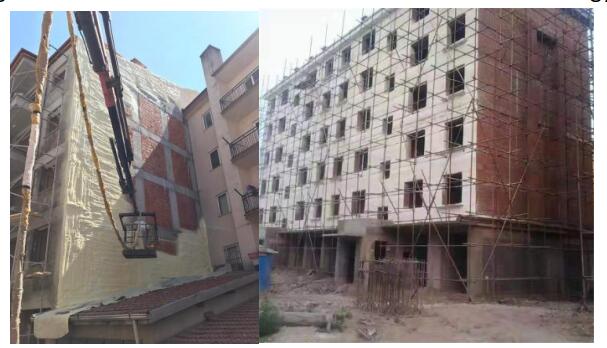

Application of polyurethane spraying in HVAC industry2
