Insulated Roof 48000*8000mm PU Sandwich Panel Machine

Short Description:


Product Detail

Product Tags

PUR Polyurethane Insulated Roof Wall Panel Roofing Sheet Making Machine

Production Line Size: About 48000*8000mm Pu Panel Size: Width Max 1200mm
Panel Size: Thickness 15~100mm Production Speed: 3-8 M/min
Total Weight: 40T Hot Air Circulation Temp: 70 Degree Max
Minumal Cutting Length: 1200mm Diagonal Line Tolerance: ± 2mm
Total Power: 120kw Port: Ningbo For Roof Wall Panel Roll Forming Machine
High Light:

8000mm PU sandwich panel line

,

1200mm PU Sandwich Panel Machine

,

8000mm PU Sandwich Panel Machine



Product Introduction:

Continuous PU/PIR Sandwich Panel Production Line, also called polyurethane sandwich panel manufacturing line/production line/machine, is an automatic production line, which is consisting of decoiler, flm coating, pre-cutting, cutting equipment, roll forming system, preheating, foaming, solidification, band saw cutting, cooling, stacking and packing. The whole PU/PIR sandwich panel production line integrates technologies of mechanics, chemistry, electrical control, hydraulic pressure pneumatic and temperature control.

 Sandwich Panel Production Line Features:

1. Sandwich panel machine can product beautiful sandwich panels with high practicality, such as insulation, sound – proofing and flame retardance.

2. Hot air circulation furnace strictly controls pu foaming and solidification temperature in suitable range.

3. Precise measurement, high stability, little dust making of the high pressure foaming system protect worker’s health from harm in producing.

4. The pu sandwich panel machine using 141B(or cyclopentane), instead of CFC as vesicant, PU foaming treatment becomes an enviroment-friendly production technology.

5. Special double belt conveyor design ensures flat surface, even thickness and anti-deformation of panels.

6. PU sandwich panel machine user-friendly design and simple operation control system: HMI together with PLC computer.

Working Process Layout Of PU/PIR Sandwich Panel Production Line

Roll Forming System
There is one set roll forming machine for upper layer profiles. That is double head roll forming machine. The upper roll forming machine consists of two sets of forming rollers, one set of guiding system, one set of the transmission system, one set of frame.

Foaming Accessories
Accessories of foaming system include sheet transmission conveyor, adhesive tape sealing device, sponge sealing device.

Double Belts System
DBL is mainly used to overcome the expansibility of foaming and make it solid, and decide panel thickness and production speed. Side belt is overcome horizontal expansion and decide the width of panel and guiding to the panels.

Features Of PU Sandwich Wall Panels

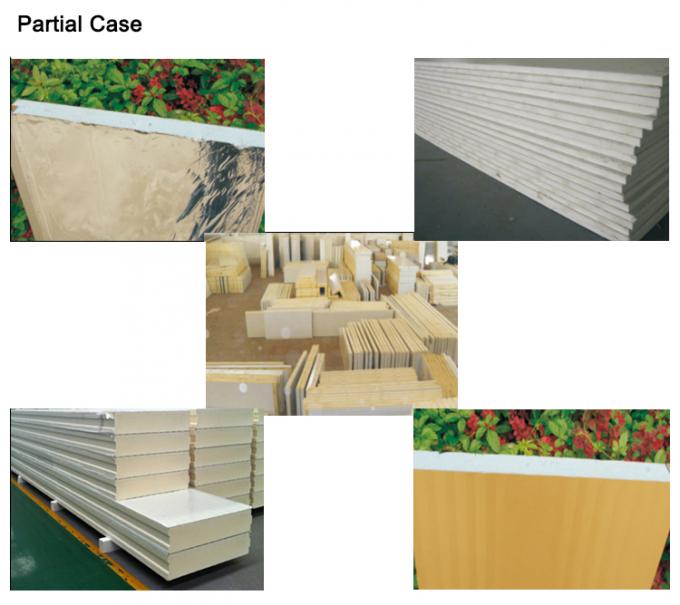

PU Sandwich Panels are composed of 3 layers, the external and internal is two dyed Galvanized or Aluminum corrugated plates, and core high density POLYURETAHE foam.

PU SANDWICH PANEL are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure.
