6000RPM Polyurethane Elastomer Casting Machine
| Product Type: | Foam Net | Dimension(L*W*H): | 4100(L)*1250(W)*2300(H)mm |
|---|---|---|---|
| Machine Type: | Foaming Machine | Voltage: | 380V |
| Power (kW): | 25~31kW | Weight (KG): | 2000 KG |
| Warranty: | 1 YEAR | After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support |
| Key Selling Points: | Automatic | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey, Pakistan, India | Showroom Location: | Turkey, Pakistan, India |
| Applicable Industries: | Manufacturing Plant | Product Name: | Elastomer Casting Machine |
| Color: | Cream-colored/ Orange/ Blue | Strength 1: | Self-cleaning Filter |
| Strength: | Precise Metering | Feeding System: | Automatic |
| Control System: | PLC | Output: | 16-66g/s |
| Tank Volume: | 120L | Power: | Three-phase Five-wire 380V |
| Port: | Ningbo For Elastomer Casting Machine | ||
| High Light: |
6000RPM PU casting machine, Polyurethane Elastomer Casting Machine, 6000rpm Elastomer Casting Machine |
||

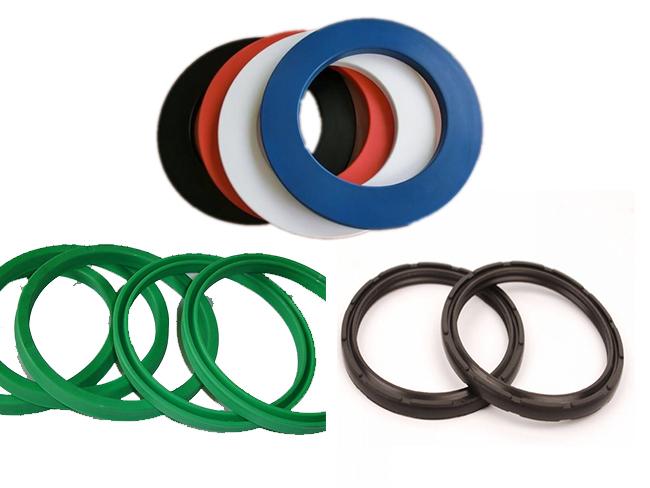

Polyurethane Elastomer Casting Machine with Formed In Place Gaskets Technology Application: Widely used in the production of CUP type PU elastomer items which adopt MOCA or BDO as chain extender,such as CPU wheel,castor,roller,sieve plate,impeller,seal ring,shock absorber,dumbell and so on. Because polyurethane seals have good oxidation resistance, and also have excellent cutting properties. Therefore, it is widely used in seals, wipers, support rings and other products, and this seal is well received by the industry, and it has been praised continuously.
PU Elastomer Casting Machine Introduction:
PU elastomer casting machine is used to produce castable polyurethane elastomers with MOCA or BDO as chain extenders. PU elastomer casting machine is suitable for manufacturing various kinds of CPUs such as seals, grinding wheels, rollers, screens, impellers, OA machines, wheel pulleys, buffers, etc. product.
| No. | Item | Technical Parameter |
| 1 | Injection Pressure | 0.01-0.1Mpa |
| 2 | Injection flow rate | 85-250g/s 5-15Kg/min |
| 3 | Mixing ratio range | 100:10～20(adjustable) |
| 4 | Injection time | 0.5～99.99S (correct to 0.01S) |
| 5 | Temperature control error | ±2℃ |
| 6 | Repeated injection precision | ±1% |
| 7 | Mixing head | Around 6000rpm, forced dynamic mixing |
| 8 | Tank volume | 250L /250L/35L |
| 9 | Metering pump | JR70/ JR70/JR9 |
| 10 | Compressed air requirement | Dry, oil free P:0.6-0.8MPa Q:600L/min(Customer-owned) |
| 11 | Vacuum requirement | P:6X10-2Pa Speed of exhaust:15L/S |
| 12 | Temperature control system | Heating: 31KW |
| 13 | Input power | Three-phrase five-wire,380V 50HZ |
| 14 | Rated power | 45KW |
| 15 | Swing arm | Fixed arm, 1 meter |
| 16 | Volume | About 2000*2400*2700mm |
| 17 | Color (selectable) | Deep blue |
| 18 | Weight | 2500Kg |
Product Features of PU Elastomer Casting Machine:
High temperature resistant low speed high precision metering pump,accurate measurement,random error within±0.5%. Material output adjusted by frequency converter with frequency conversion motor,high pressure and precision,simple and rapid rapid ratio control. High performance mixing device,adjustable pressure,accurate material output synchronization and even mix;New type mechanical seal structure avoids reflux problem. High-efficiency vacuum device with special mixing head ensures product no bubbles. Adopting electromagnetic heating method to heat transfer oil,efficient and energy saving;Multi-point temp.control system ensures stable temperature,random error<±2°C. Adopting PLC and touch screen man-machine interface to control pouring,automatic cleaning flush and air purge.stable
performance.high operability,which can automatically distinguish,diagnose and alarm abnormal situations as well as display abnormal factors.

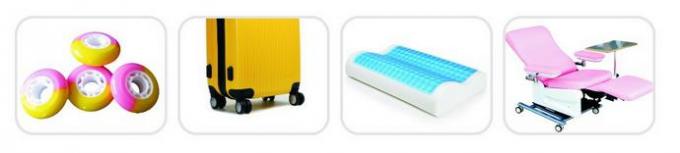

High Temperature Elastomer Machine Application:

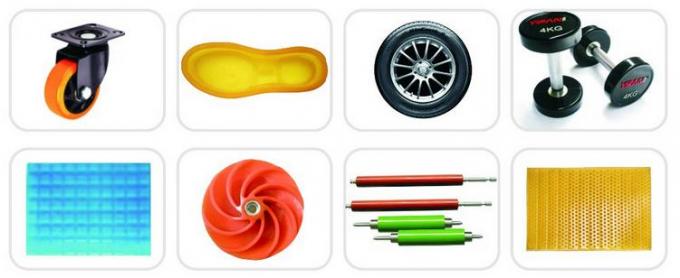

Medium Temperature Elastomer Machine Application:
