Liquid Filling Perfusion 250L High Pressure PU Foaming Machine
|Applicable Industries:||Manufacturing Plant||Condition:||New|
|Product Type:||Foam Net||Machine Type:||Foam Injection Machine|
|Power (kW):||9kW||Weight (KG):||2000 KG|
|Warranty:||1 YEAR||After-sales Service Provided:||Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support|
|Key Selling Points:||Automatic||After Warranty Service:||Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service|
|Strength 1:||Self-cleaning Filter||Strength 2:||Precise Metering|
|Feeding System:||Automatic||Control System:||PLC|
|Foam Type:||Rigid Foam||Output:||16-66g/s|
|Tank Volume:||250L||Power:||Three-phase Five-wire 380V|
|Name:||Liquid Filling Machine||Port:||Ningbo For Liquid Filling Machine|
250L High Pressure PU Foaming Machine
66g/s polyurethane foam injection machine
Perfusion High Pressure PU Foaming Machine
High Pressure PUR PU Polyurethane Pouring Liquid Filling Foam Injection Machine For Sliding DoorProduct Description: Polyurethane foaming machine, has the economical, convenient operation and maintenance, etc, can be customized according to customer's request various pours out of the machine.

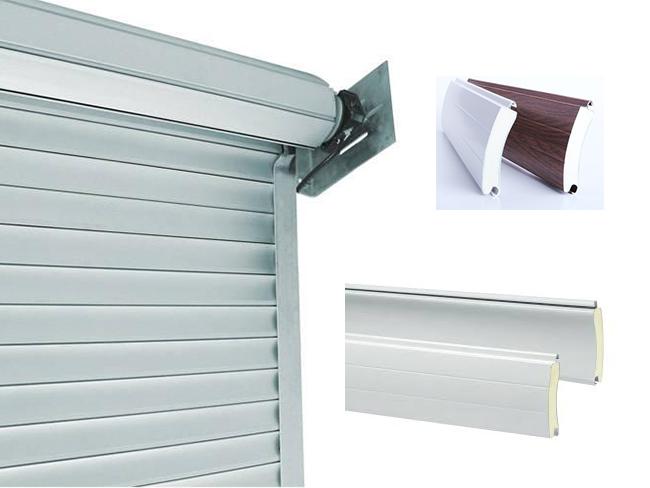

This polyurethane foaming machine uses two raw materials, polyol and Isocyanate. This type of PU foam machine can be used in various Application: The sliding door of polyurethane thermal insulation door panel has good thermal insulation effect and is an ideal choice for exterior doors such as factories and logistics. It is easy to use, with remote control and button opening methods.
|1||Foam application||Rigid Foam Shutter Door|
|2||Raw material viscosity(22℃)||POLY ～2500MPas ISO ～1000MPas|
|4||Output (mixing ratio 1:1)||110～540g/min|
|5||Mixing ratio range||1:5～5:1(adjustable)|
|6||Injection time||0.5～99.99S(correct to 0.01S)|
|7||Material temperature controlling error||±2℃|
|8||Repeat injection accuracy||±1%|
|9||Mixing head||Four oil house,double oil cylinder|
|10||Hydraulic system||Output: 10L/min System pressure 10～20MPa|
|15||Temperature control system||Heat: 2×9Kw|
|16||Input power||Three-phase five-wire 380V|
Product Features of High Pressure PU Machine:
1. Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving;
2. Adding material sample test system, which can be switched freely without affecting normal production, saves time and material;
3. Low speed high precision metering pump, accurate ratio, random error within ±0.5%;
4. Material flow rate and presure adjusted by converter motor with variable frequency regulation, high accuracy, simple and rapid ration adjusting;
5. High-performance mixed device, accurately synchronous materials output, even mixture. New leakproof structure, cold water cycle interface reserved to ensure no blockage during long downtime;
6. Adopting PLC and touch screen man-machine interface to control the injection, automatic cleaning and air flush, stable performance, high operability, automatically distinguish, diagnose and alarm abnormal situation, display abnormal factors. Our Factory Yongjia Polyurethane Co., Ltd. is a professional machinery manufacturer in PU industry combined with design, development, production. Founded in 2013, the construction area of over 10,000 square meters, is the China forefront polyurethane technology company. At present our company's products range covers:high pressure pouring machine, low pressure foaming machine, PU spraying foam machine, PU elastomer casting machine, also we customize to make production line according to clients requirement,like in flexible foam system we make the lines: PU shoe /sole/insole production line(Egypt),anti-fatigue mat production line(India),memory pillow production line(Iran),Albania,elastic ball production line(Mexico),car seat and cushion production line(Morocco),PU slow rebound ear plugs line(India);rigid foam system we make the line:PU decorative molding crown cornice line(Saudi Arab), float trowel making line(Saudi Arab, Pakistan), cold storage panel production line(Uzbekistan),sandwich panel production line(Iraq).Elastomer line:forklift wheel casting line(lran);coal sieve screen select line(Russia). FAQ 1. What is the PU raw material used with this polyurethane/polyurea foam casting machine?
Polyurethane which has two components polyol and isocyanate(poly and iso/mdi). Polyurea also can be used which helps to waterproofing and Anticorrosion and rust prevention. Polyurethane can be divided into two kinds, flexible foam and rigid foam. And flexible foam or rigid foam also has two kinds, open cell foam and closed cell foam.
2. If I need to develop a special PU raw material formula solution based on my product, can you provide it?
Yes, we can. We have technical team of chemical engineers and process engineers, all of whom have more than 20 years of experience in PU industry. We can independently develop raw material soluation like polyurethane rigid foam, polyurethane flexible foam, polyurethane integral skin foam and polyurea to meet customer' s requirements.
3. What is the application of PU foam machine?
PU polyurethane foam injection molding machine includes high pressure machine and low pressure machine, etc. They can make PU rigid foam products like PU crown molding, PU bed sets, PU plastering float, PU coldroom panel; PU flexible foam products like car seat cushion and car headsets, memory foam pillow, slow rebound ear plugs, PU stress ball and kids toy.
Polyurethane PU elastomer machines produce elastomeric products. PU elastomer products like forklift wheel, rollers, sieve screen and so on.
You need to tell us specific machine application and budget, to spray or cast, then we can recommend suitable machine for you.
4. How to solve the polyurethane foaming machine failure?
For pu spraying machine: If there are quality problems with accessories during the one-year warranty period, we can provide replacement parts for free. If there are operations or other problems, you can send photos or videos to us, we will consult our engineers to help you solve the problem.
For high/low pressure foam dispensing machine, elastomer casting machine and other production line: our machine all have remote maintenance and diagnosis function. You can also send us pictures or videos, our engineers can help to solve the problems via pictures and videos.
5. What if I don't install it after I get the polyurethane pouring machine? Do you offer installation services?
Yes, we supply video technical support. If your company has engineer, you can come to our factory, we will provide field installation, commissioning and training. Of course, our engineers are available to service machinery overseas.
6. How can I buy your pu foam machine and pay for the money?
First, you can place an order in Alibaba via L/C, T/T, D/P and other payment methods accepted by Alibaba. Or you can pay US dollars by bank transfer, another way you can pay RMB and transfer to our RMB account. Feedbacks Good Feedback from our Australian client who buy a low pressure PU polyurethane foaming machine.Real comment for our PU polyurethane flexible foam shoe sole and insole making production line.
