Polyurethane Memory Pillows High Pressure PU Foaming Machine

Short Description:


Product Detail

Product Tags

Name: Pu Foam Machine Foaming Principle: High Pressure Air Type
Mixing Ratio Range: 1:3~3:1(adjustable) Pouring Volume (g/s): 375-1875g/s
Raw Material: Flexible Foam Poly+Iso Applications: Slow Rebound Foam Pillows
High Light:

1875g/s polyurethane foam machine

,

Memory Pillows polyurethane foam machine

,

1875g/s PU Foaming Machine

Polyurethane Memory Foam Pillows Making High Pressure PU Foaming Machine  Description of high pressure polyurethane foaming machine: As long as the polyurethane component raw materials (isocyanate component and polyether polyol component) performance indicators meet the formula requirements. Through this equipment, uniform and qualified foam products can be produced. It is made of polyether polyol and polyisocyanate in the presence of a variety of chemical additives such as blowing agent, catalyst, emulsifier, etc., through chemical reaction to foam to prepare foam. Polyurethane foaming machine can be used for automobile interior decoration, thermal insulation wall spraying, thermal insulation pipe manufacturing, bicycle and motorcycle seat sponge processing. Technical Parameter:

No. Parameter Data
1 Raw material Two-component polyurethane
2 Material viscosity(22℃) 1000~2500CPSPas
3 Injection flux capacity 375-1875g/s
4 Mixing ratio 1:3~3:1(adjustable)
5 Mixing head HOMEMADE 1422-2K, four oil hoses, double oil cylinders
6 Compressed air supply Dry, oil free P: 0.7Mpa Q: 600NL/min
7 Heating system 6KW x 2, Automatic control
8 Power system Three-phase five-wire,380V 50HZ
9 Rated power About 12KW
10 Hose length 6 meter
11 Machine Weight 2000kg

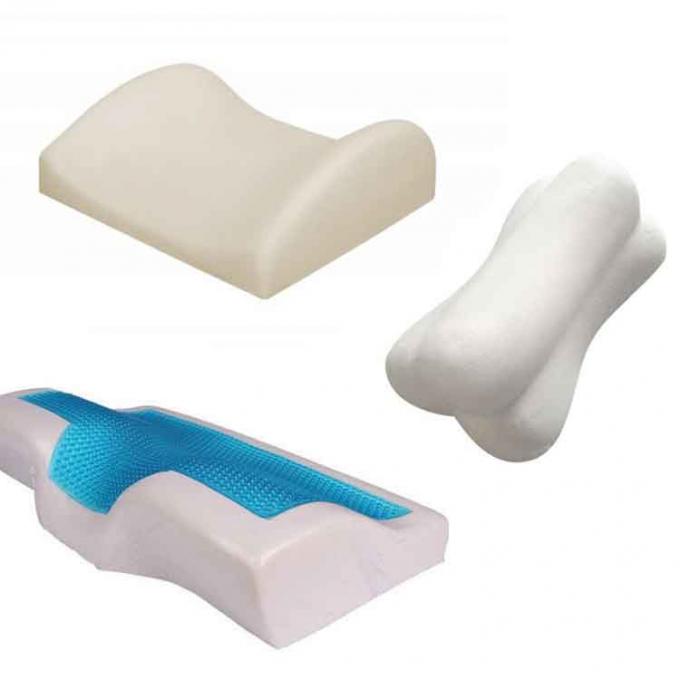

Application of pu foam filling machine: Are polyurethane pillows harmful to people?This material is a kind of temperature-sensitive and decompressive material. This material is an open and relatively regular spherical cell tissue. Its air permeability is particularly good, which can ensure a good flow of air inside. Ensure to maintain a more appropriate body temperature. This material is a material that follows the contours of the human body. You will feel that there is no rebound when using it. It is particularly comfortable. Therefore, using it will not cause harm to the human body. However, if you buy it When you buy substandard materials, it may have a negative impact on your body. Therefore, you must pay special attention when buying.

Product Features:

1.Material injection mixing head can freely move forward and backward, left and right, up and down;
2.Pressure needle valves of black and white materials locked after balanced to avoid pressure difference
3.Magnetic coupler adopts high-tech permanent magnet control, no leakage and temperature rising
4.Automatic gun cleaning after injection
5.Material injecting procedure provides 100 work stations, weight can be set directly to meet the production of multi-products
6.Mixing head adopts double proximity switch control, which can realize precise material injection.
7.Automatic switch from frequency converter soft start to high and low frequency, low-carbon , energy saving, environmental protection, greatly reduce the energy consumption
8.Full digital, modular integration control all process, accurate, safe, intuitive, intelligent and humanization   Feedbacks of pu foam injection machine:
