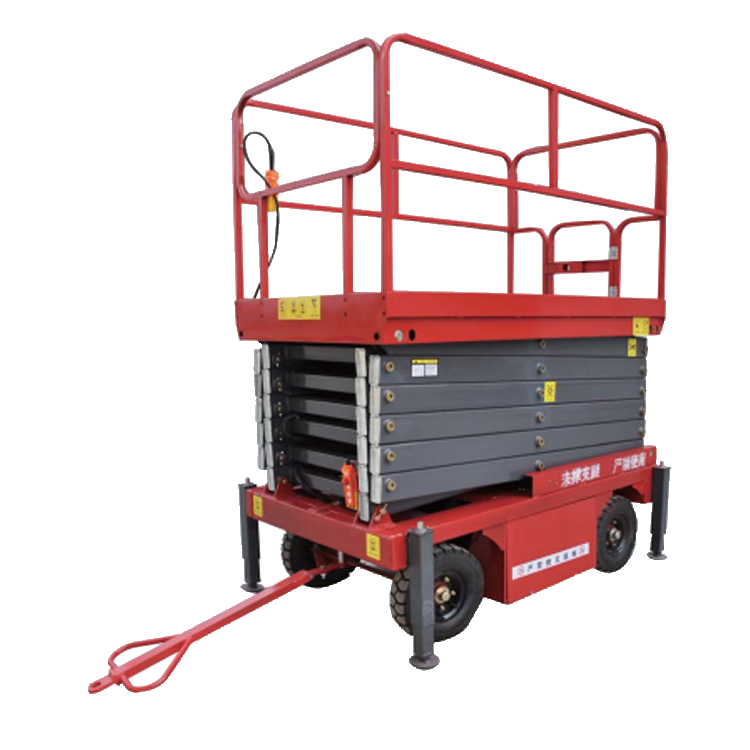

Mobile Scissor Lift Platform Series Traction Aerial Working Platform
Feature
This series of proudcts has lifting height ranging from 4m to 18m,and loading weight from 300kg to 500kg,with lifting mode of manual operation,electric,battery and diesel oil,etc.Explosion-proof electric apparatus can be chosen for special places;remove control device platform can be installed according to the users’needs,which has advantages including easy to move,large surface and strong carrying capacity,allowing simultaneous operation of several persons,and safety & reliability,so it is the optimal product for aerial lifting operation.
Detail
Specification
| Product name |
Model |
Load/KG | Size：length, width and height（mm) |
platform size/MM |
Platform height/m |
Weight/kg |
| 4 meters Mobile scissor lift platform | FSTSJY0.5-4 |
500 |
2016*1000*1150 |
2010*830 |
4 |
680 |
| 4 meters Mobile scissor lift platform | FSTSJY1.0-4 |
1000 |
2016*1290*1150 |
2010*1130 |
4 |
1150 |
| 6 meters Mobile scissor lift platform | FSTSJY0.5-6 |
500 |
2016*1000*1250 |
2010*830 |
6 |
750 |
| 6 meters Mobile scissor lift platform | FSTSJY1.0-6 |
1000 |
2016*1290*1310 |
2010*1130 |
6 |
1200 |
| 7 meters Mobile scissor lift platform | FSTSJY0.5-7 |
500 |
2016*1100*1310 |
2010*930 |
7 |
850 |
| 8 meters Mobile scissor lift platform | FSTSJY0.5-8 |
500 |
2016*1100*1350 |
2010*930 |
8 |
950 |
| 8 meters Mobile scissor lift platform | FSTSJY1.0-8 |
1000 |
2016*1290*1420 |
2010*1130 |
8 |
1450 |
| 9 meters Mobile scissor lift platform | FSTSJY0.5-9 |
500 |
2016*1100*1530 |
2010*930 |
9 |
1050 |
| 10 meters Mobile scissor lift platform | FSTSJY0.5-10 |
500 |
2016*1290*1560 |
2010*1130 |
10 |
1280 |
| 10 meters Mobile scissor lift platform | FSTSJY1.0-10 |
1000 |
2016*1290*1550 |
2010*1130 |
10 |
1650 |
| 12 meters Mobile scissor lift platform | FSTSJY0.5-12 |
500 |
2465*1360*1780 |
2462*1210 |
12 |
1280 |
| 12 meters Mobile scissor lift platform | FSTSJY1.0-12 |
1000 |
2465*1360*1780 |
2462*1210 |
12 |
2400 |
| 14 meters Mobile scissor lift platform | FSTSJY0.5-14 |
500 |
2845*1620*1895 |
2845*1420 |
14 |
2450 |
| 14 meters Mobile scissor lift platform | FSTSJY1.0-14 |
1000 |
2845*1620*1895 |
2845*1420 |
14 |
2800 |
| 16 meters Mobile scissor lift platform | FSTSJY0.5-16 |
300 |
2845*1620*2055 |
2845*1420 |
16 |
2780 |
| 18 meters Mobile scissor lift platform | FSTSJY0.5-18 |
300 |
3060*1800*2120 |
3060*1620 |
18 |
3900 |
Application
Applicable places: construction sites, workshops, warehouses, grain depots, stations, hotels, airports, docks, gas stations, sports factories, elevated pipelines and other high-altitude equipment installation, maintenance, cleaning, etc., also used for lifting equipment maintenance, field power facilities maintenance, steel Frame structure workshop maintenance, etc.
