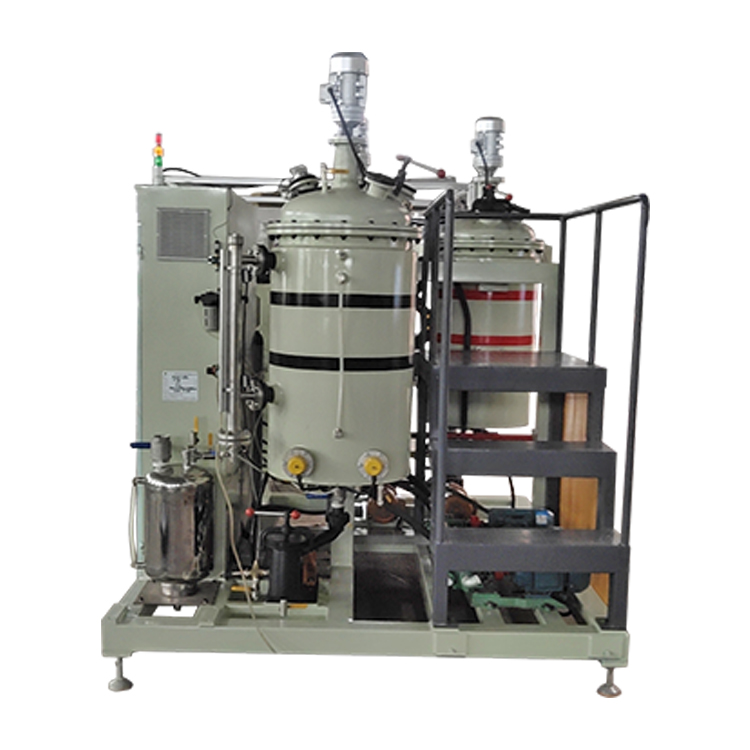

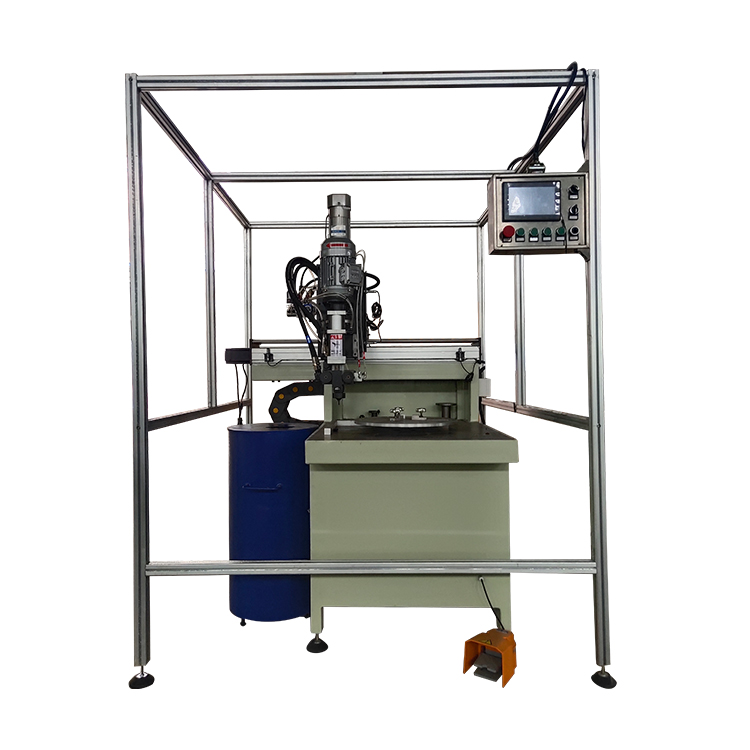

Polyurethane Automatic Air Filter Gasket Machine
The polyurethane automatic air filter gasket machine is specially used for the sealing casting of automobile air filters, industrial filters, air purifiers and other products.
Features
1. High-precision meter pump, accurate measurement, and the accuracy error does not exceed +0.5%;
2. High-performance mixing device with anti-drip material, the raw materials are spit out accurately and synchronously, and the mixing is uniform;
3. Automatically control the mixing head injection time, cleaning frequency, automatic cleaning and air flushing and drying;
4. Using PLC, touch screen man-machine interface, servo system to control equipment pouring, move according to the trajectory set by the program, accurate positioning, can automatically pour round, square and special irregular shaped products, high production efficiency and reliable performance.
5. Additional functions such as automatic feeding, high-viscosity filling pump, material shortage alarm, automatic circulation at shutdown, and mixing head water cleaning can be loaded.
Specifications
Max Size of Squareness (mm) | 700*700 |
Max Size of roundness (mm) | Φ650 |
Dimension(mm) | 1380*2100*2300 |
Weight(kg) | About 1200kg |
Total Power (kw) | 9kw |
Power Voltage, Frequency | 380V 50HZ |
Designed Mixture Ratio | A:B=100:25-35 |
Moving Speed Of Worebench | 2.24m/min |

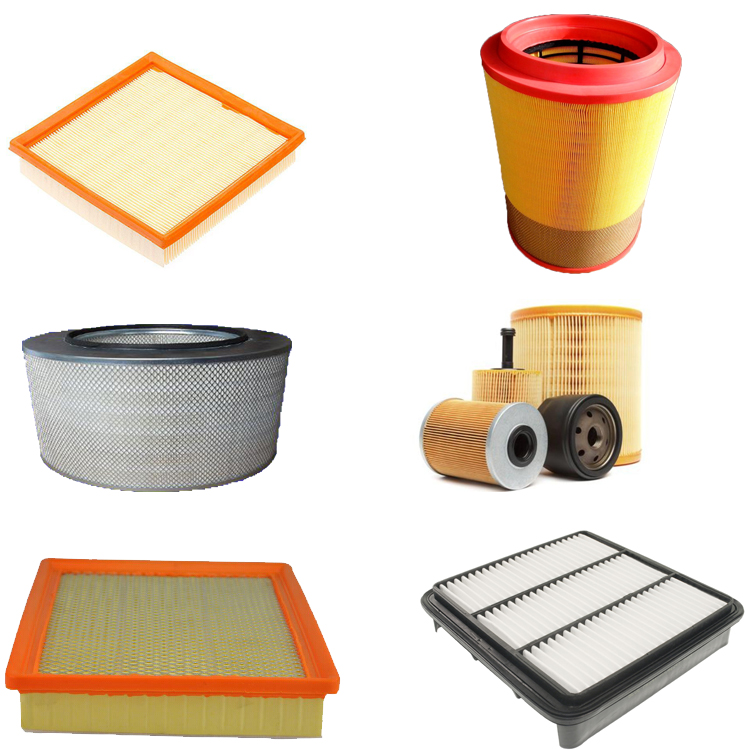

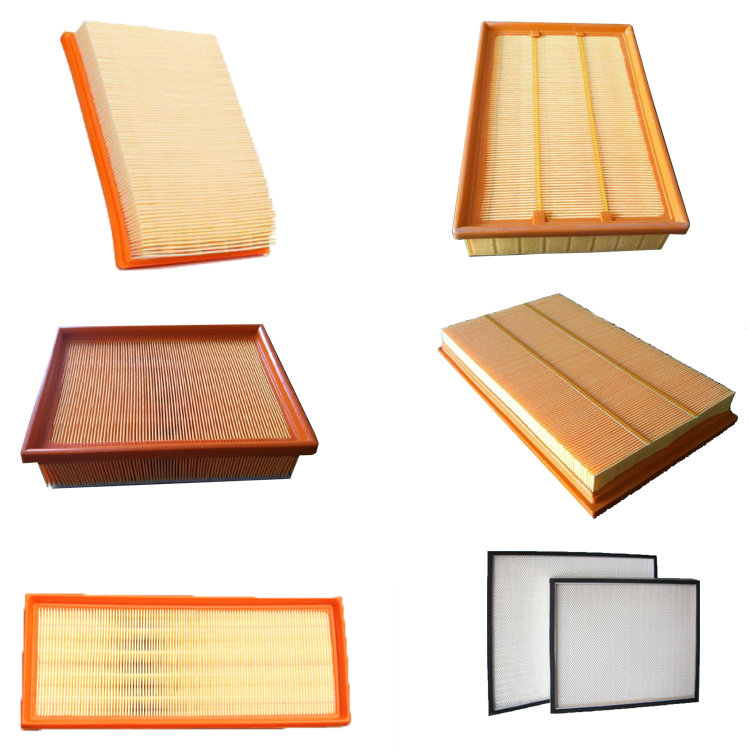

Application
Specially used for sealing casting of automotive air filters, industrial filters, air purifiers and other products.
