The Single Slide Car Air Oil Filter Plastic Injection Molding Making Machine

Short Description:


Product Detail

Product Tags

The Single Slide Car Air Oil Filter Plastic Injection Molding Making Machine

Introduction Of Air Filter Gasket Casting Machine:

Automatic sealing strip casting machine is widely employed in the foaming production of electric cabinet door panel, automobile air filter and other products. This machine has high repeat injection precision, even mixing, stable performance, easy operation, and high production efficiency.

The machine model PU20-1 PU20-2 PU20-3
Always spit out quantity 4 to 12 g/s 8-30 grams/SEC. 17-60 grams/SEC
The largest processing size Length x width 400×300mm 500×400mm
The diameter of Round biggest increase 350mm 500mm 500mm
The total power 10KW
The power supply 380V
The compressed air ≥0.6MPa
The machine weighs 550kg
The nose mixed speed 6000 r/min
Mixed way Dynamic hybrid
Container volume 40L-150L
Hybrid range B:A=25-50:100
Measuring accuracy ±0.5%



Structure characteristics:

1. For sandwich type material bucket, it has good heat preservation

2. The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating situation was absolutely clear.

3. Head fixing controlled directly by PLC operating system,easy of operation.

4.The adoption of new type mixing head makes the mixing even, with the characteristic of low noise, sturdy and durable.

5. Boom swing length customizable, multi-angle rotatable, convenient and efficient.

6. High precision pump lead to measuring accurately.

7. Easy for maintenance, operation and repair.

8. Low energy consumption.



Applications:

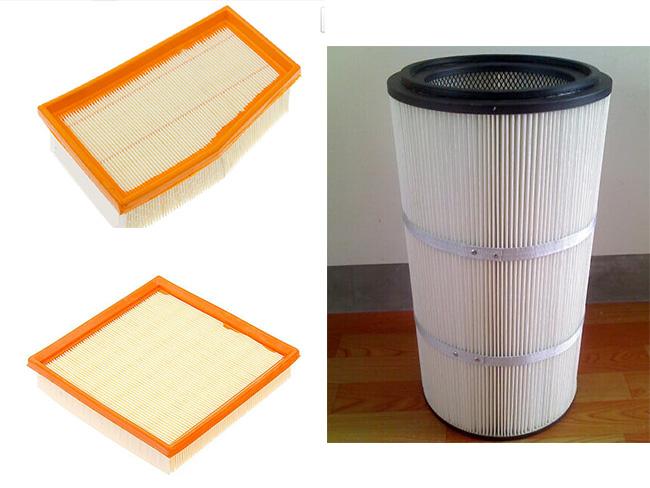

Fully automatic filter gasket foaming machine is widely employed in the production of automobile and industrial filters, home use filters, etc. The machine owns many advantages, such as high repeat injection precision, even mixing, stable performance, easy operation, high production efficiency, etc.
