Polyurethane Cool Gel Pads Making Machine PU Gasket Dispensing Machine
| Product Name: | PU Gel Dispensing Machine | Strength 1: | Self-cleaning Filter |
|---|---|---|---|
| Strength 2: | Precise Metering | Feeding System: | Automatic Feeding System |
| Control System: | PLC Control System | Foam Type: | Pu Gel |
| High Light: |
Polyurethane pu dispensing machine, PLC control pu dispensing machine, Gel Pads Gasket Dispensing Machine |
||

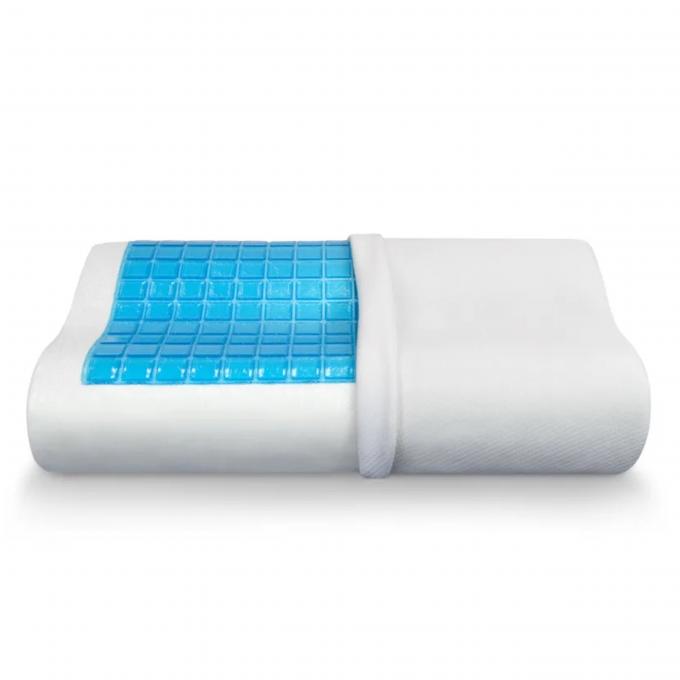

Polyurethane Cool Gel Pads Making Machine PU Gasket Dispensing Machine Introduction Of PU Gel Making Machine: PU Gel Dispensing Machine is mainly used to produce gel pad, gel cushion, gel pillow, gel mattress and many other gel products.
| Specifications: | |
| Power | ψ220V/60hz 8KW(customized by customer requirement) |
| Tank capacity | 50L/50L/50L |
| Quantitative pump capacity | (HW-AP50)9m³/rev (HW-AP30)6m³/rev |
| Output | 5~30g/s |
| Accuracy | ±1% |
| Air source | 4kg/m³ ~ 6kg/m |
| Raw material barrel pressure | ≤1.5kg/m³ |
| Raw material circulation pressure | ≤10kg/m³ |
| Raw material allowable viscosity | ≤2500cps |
Product Features:
1. Servo motor drives high-precision pump measurement to ensure quantitative and uniform mixing ratio.2. High-speed dynamic mixing glue gun, convenient and simple to maintain, with automatic cleaning function to ensure no dripping.3. PLC programming control of gel sheet production machinery and equipment.4. Large touch screen operation, easy to learn, with parameter locking function, to prevent accidental modification of parameters and ensure quality.5. Imported electrical appliances and servo motor control to ensure the proportion and precision of the glue.6. The material tank is equipped with stirring and heating and heat preservation functions. The temperature is within 80℃, and the controllable accuracy is plus or minus 2℃. Machine Details: Tank information: A tank is with mixing unit A tank: 30L, 1PCS and B tank: 30L, 1PCS Tanks are with negative pressure auto feeding system Tanks are with liquid level showing unit lTank with 304 stainless steel Tanks remaining material is with auto alarm system Tanks can be vacuum to get out the bubbles inside of the material Mixing head details: Mixing head is made of stainless steel and alloy metal The mixing head is static mixingThe mixing head is easy cleaning and well sealing Metering pump: Ratio can be adjustable from 1:1 to 10:1 Metering pump is driven by servo motor Metering pump is gear pump and wear-resistant It is Taiwan brand Application: Polyurethane gel is a dense material, a solid in liquid. Its special touch is unmatched by other materials. It has viscoelastic properties and is the best energy absorption and cushioning material. Gel is widely used in modern society and can be used in many different applications, including computer mouse pads/keyboard wrist rests, memory pillows, mattresses, bicycle seats, motorcycle seats, insoles, medical equipment and other cushion components.
