Yard Ramp Mobile Boarding Axle Series Lifting Slope Electro-hydraulic Loading And Unloading Platform

Short Description:


Product Detail

Product Tags

Feature

The mobile boarding bridge is an auxilily equipment for loding and unloading cargo used in conjunction with frkift trucks The height of the car
can be adjusted according to the height of the cariage. Forkit trucks can drertly drive int the cariage through this equipment to cary out bulk loding
and unoding of cargo. Only single person operationis needed to achie rpidloading and unloding ofcargo. It enobles entrpis to reducea large
number of labor, improve work eicincy, and obtain greater economic befits.

  • The special diamond-shaped gnid plate is used on the table with rlioble strength, which can ensure long-term use without deformatin. Its
  • diamond mesh structure flly guarantees exellnt anti- skid performance and makes forkit truck have better climbing and maneuverability. Even in
  • rainy and snowy weather, normal use is guaranteed.
  • The adijustable lengh of the cable chain can easily hook up the truck, so that the boarding bridge and the truck are always dlosely connecded.
  • The height adjustment of boarding bridge can be eaily realized without extemal power supply by using hand- -operated hydraulic pump as power.
  • The broke pad can efetvelye prevent the boarding brndge from shifing during loding and unloading.

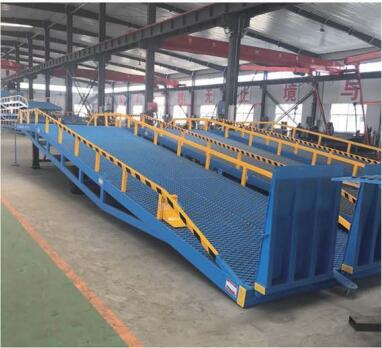

mobile boarding bridge

Detail

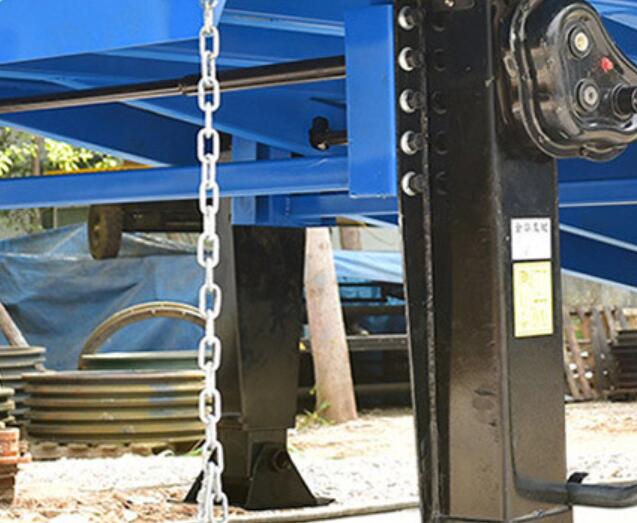

Anti-off chain
It is convenient to adjust the chain, so that the boarding bridge is always closely connected with the container, and the operation is more secure

防脱锁链

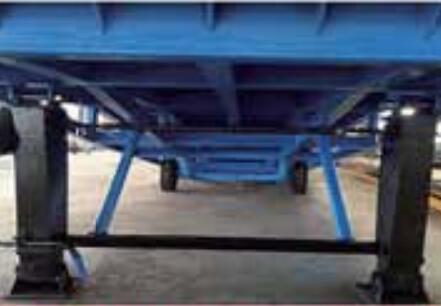

Prevent the forklift from entering the vehicle. The gravity is concentrated on the rear of the vehicle and overturned, which can ensure safety. The height can be adjusted according to the different heights of the vehicle.

QQ截图20221130133925

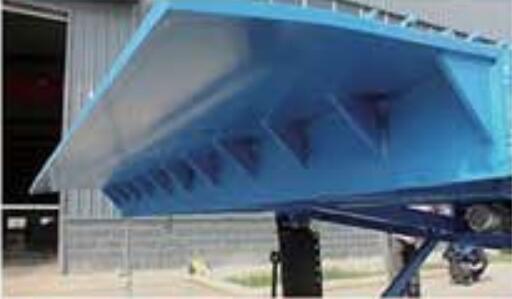

The fixed lip has higher strength and is convenient for forklifts to pass quickly

唇板

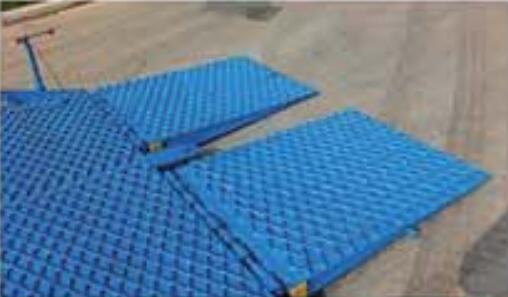

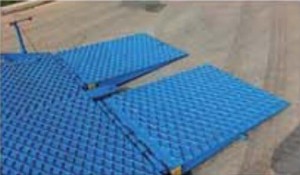

Split and foldable tailgate, easy and convenient to use

尾板

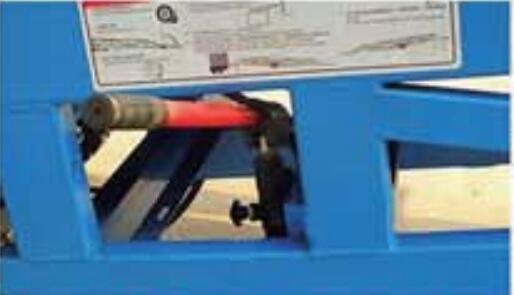

Using hand hydraulic power as power, the height adjustment of the climbing bridge can be realized without external power supply
液压

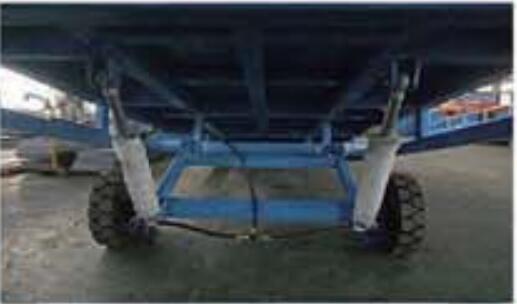

The large-angle oil cylinder enables the climbing bridge to rise smoothly and quickly

油缸

Specification

Product name

15 Tons Mobile boarding axle series

10 Tons Mobile boarding axle series

8 Tons Mobile boarding axle series

Model

FYDCQ-15T

FYDCQ-10T

FYDCQ-8T

Load

15T

10T

8T

Sizelength, width and heightmm)

11400*2100*1100

11400*2100*1100

11400*2100*1100

Tailboard length/mm

900

900

900

Slope length/ mm

7000

7000

7000

Plane length/ mm

3000

3000

3000

ongue width/mm*thickness

300*20

300*14

300*14

Weight/kg

5.5T

2.3T

2.2T

Main structure

in beams (weighted)

5/6 main beams

5/6 main beams

Adjustment range/mm

1100-1800

1100-1800

1100-1800
