Anti-corrosion Waterproof Polyurethane High Pressure Spraying Machine

Short Description:

Product Detail

Product Tags


1. Humanized design with equipment operation panel, super easy to get the hang of it;
2. Equipped with emergency switch system, help operator deal with emergencies rapidly;
3. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;
4. Stable cylinder supercharged unit, easily providing adequate working pressure;
5. Multi-leakage protection system to protect the safety of the operator;
6. Reliable & powerful 380V heating system enables rapid warming of raw materials to the best state, making sure it works great in cold condition;
7. Small volume, light weight, low failure rate, simple operation, easy mobility;
8. Minimizing spraying congestion with 4-layers-feedstock device;
9. Feed pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.
10. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;

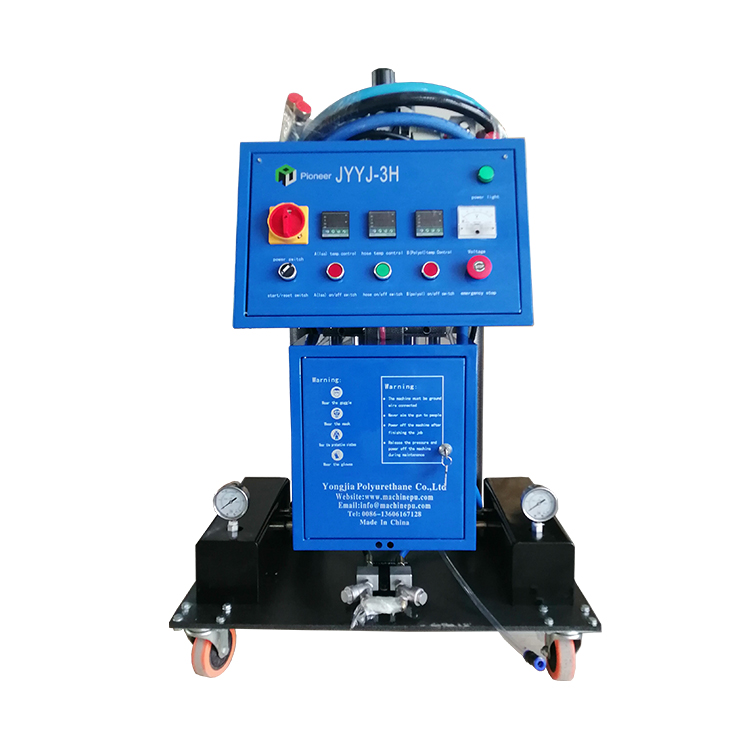

3H spray machineDetail

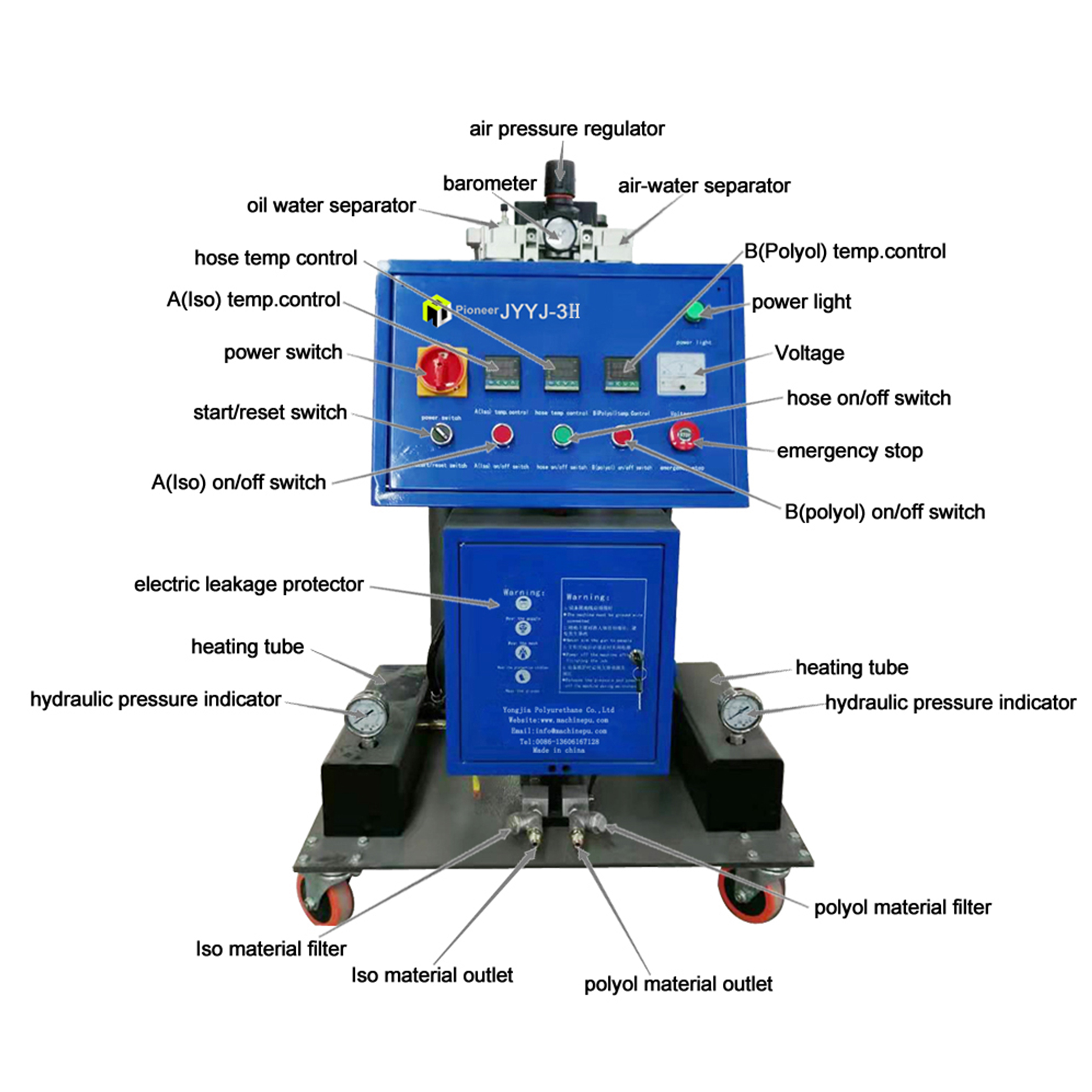

3h foam machine




Power source single phase 380V 50HZ
Heating power 9.5KW
Driven mode: pneumatic
Air source 0.5~0.8 MPa ≥0.9m³/min
Raw output 2~10 kg/min
Maximum output pressure 25 Mpa
AB material output ratio 1:1

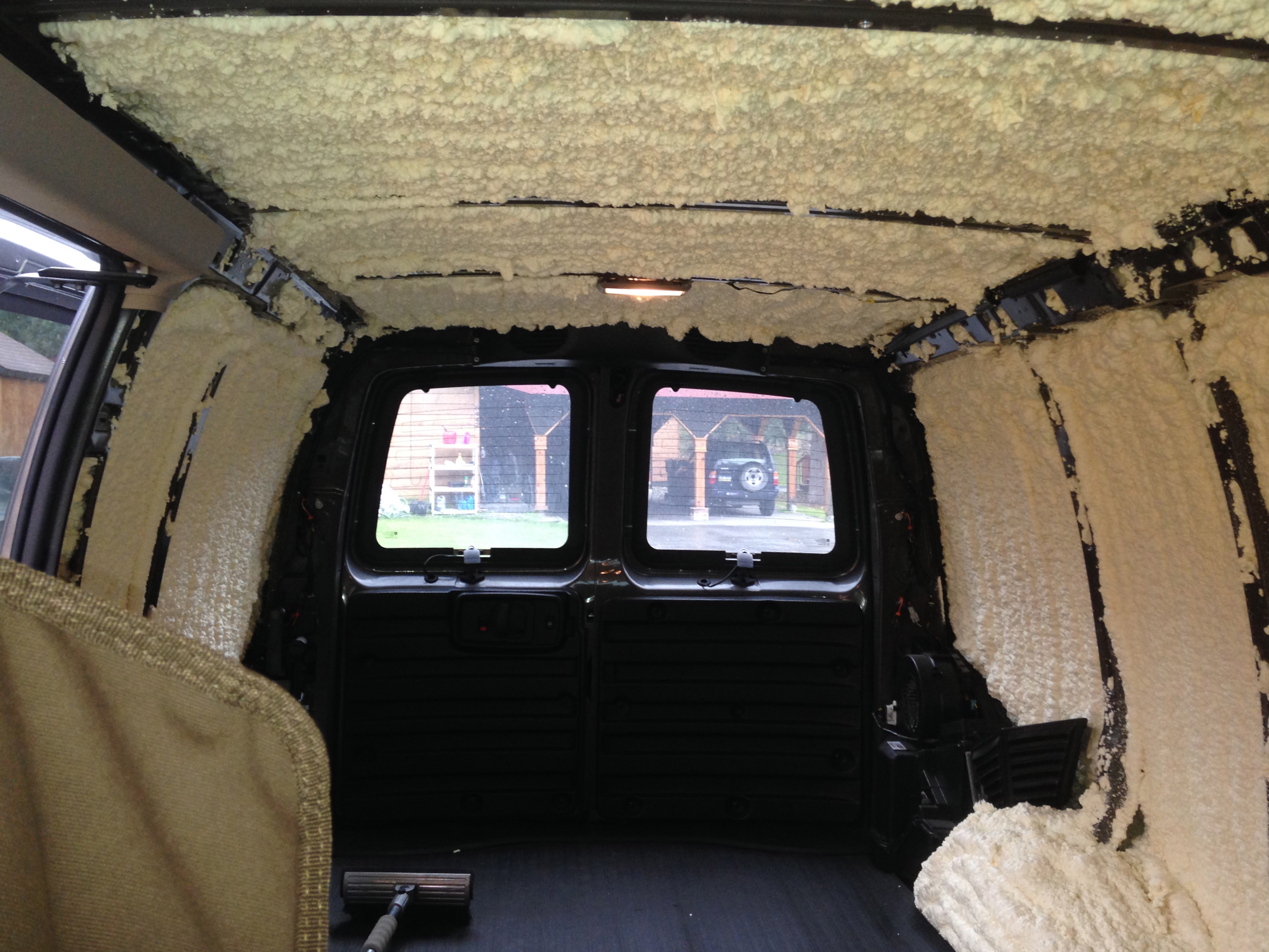

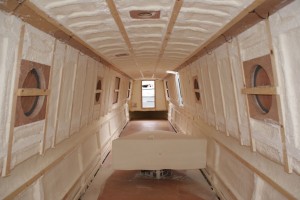

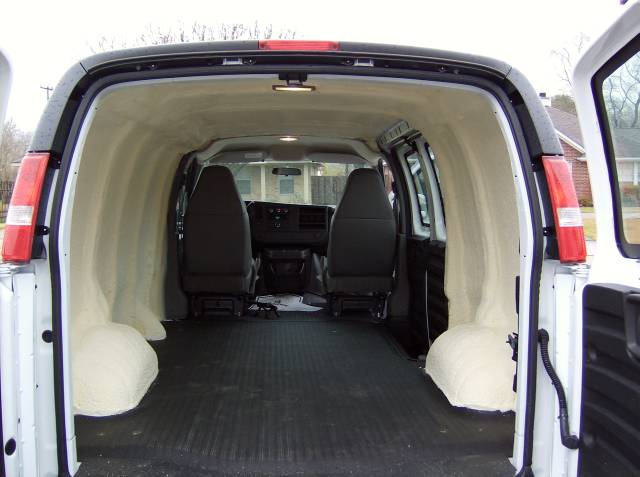

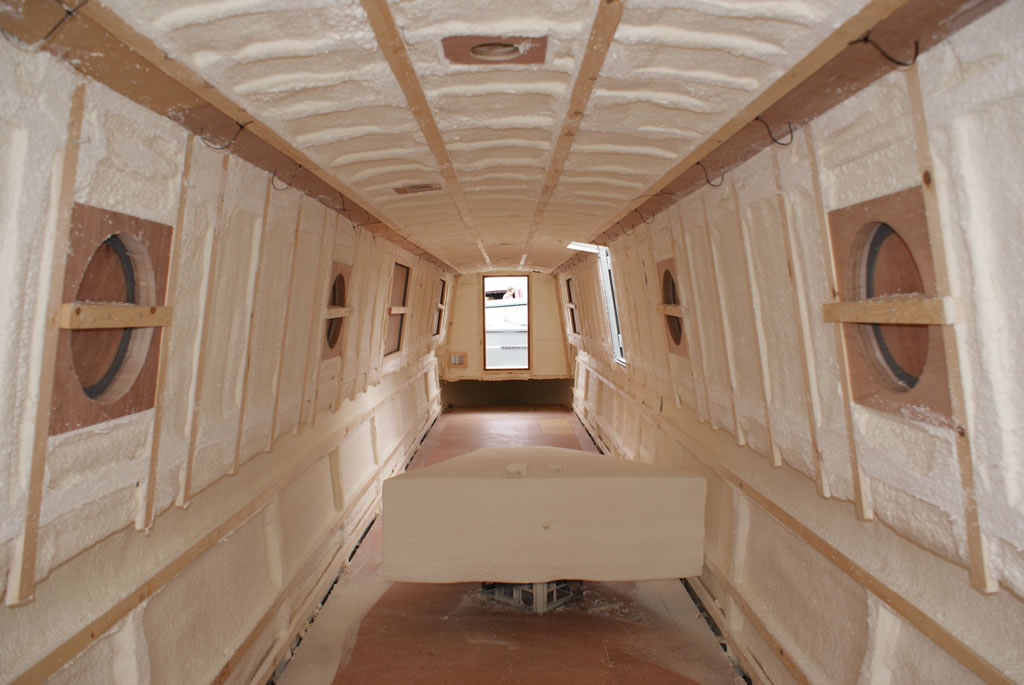

This equipment can be used for various construction environment with spraying a variety of two-component materials spray(optional) like polyurethane foaming materials, etc, widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal,roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and so on.

Duratherm-Boat foamed_van-04 foamlinx-wecutfoam-polyurea-spray-coating-ac01d1e3-9ea5-4705-b40b-313857f9a55a hqdefault images IMG_0198
