CE Insulation 0.01S Polyurethane Spray Foam Machine

Short Description:

Product Detail

Product Tags

Dimension(L*W*H): Customizable Condition: New
Voltage: 380V Warranty: 1 YEAR
After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support Key Selling Points: Automatic
Applicable Industries: Construction Works  Name: Pu Foam Spray Machine
Mix Head: Mix Evenly, No Bubble Injection Pressure: 0.01-0.1Mpa
Injection Time: 0.5~99.99S (correct To 0.01S) Temperature Control: ±2℃
Repeated Injection Accuracy: ±1% Color: Deep Blue/cream Color/red
Application: Spray Wall Ratio Between A And B: 1 : 1
Power: About 9 KW Port: Shanghai For Pu Spray Machine
High Light:

0.01S polyurethane spray equipment


9KW Polyurethane Spray Foam Machine


0.01S Polyurethane Spray Foam Machine

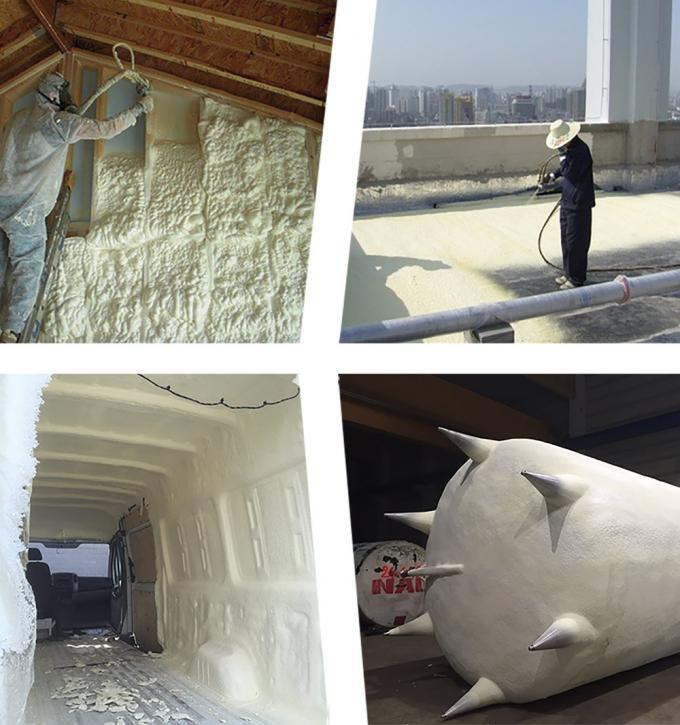

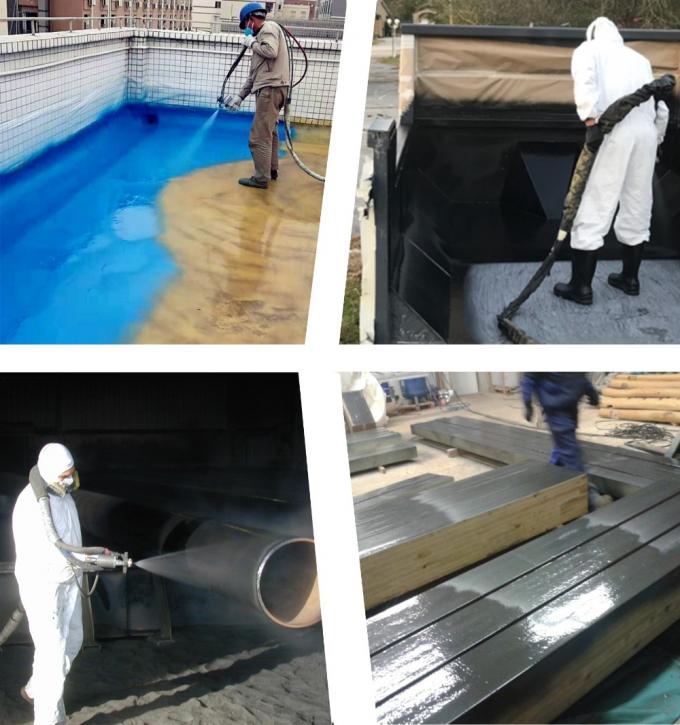

High Quality Polyurethane PU Foam Spray Machine For Insulation Made In ChinaProduct Description This equipment is can be used for various construction environment with spraying a variety of two-component spray materials and has been widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal, roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and etc.

Parameter Raw material polyurea polyurethane
Features 1.can be used both for spraying
and casting with higher production efficiency 2.Hydraulic driven is more stable
3. both polyurethane and polyurea can be used
Power source 1- phase 380V 50HZ
Heating power 30KW
Driven mode not pneumatic
Air source 0.5-0.8 MPa ≥0.5m³/min
Raw output 2-12 kg/min
Maximum output pressure 36MPA
Poly and ISO material output ratio 1:1
Spare parts Spray gun 1 Set
Heating hose 15-120 meters
Spray gun connector 2 m
Accessories box 1
Instruction book 1
Gift Protective suit 1 set
Goggle 1 set
Gloves 1 set
Mask 1 set
Earplug 1 box

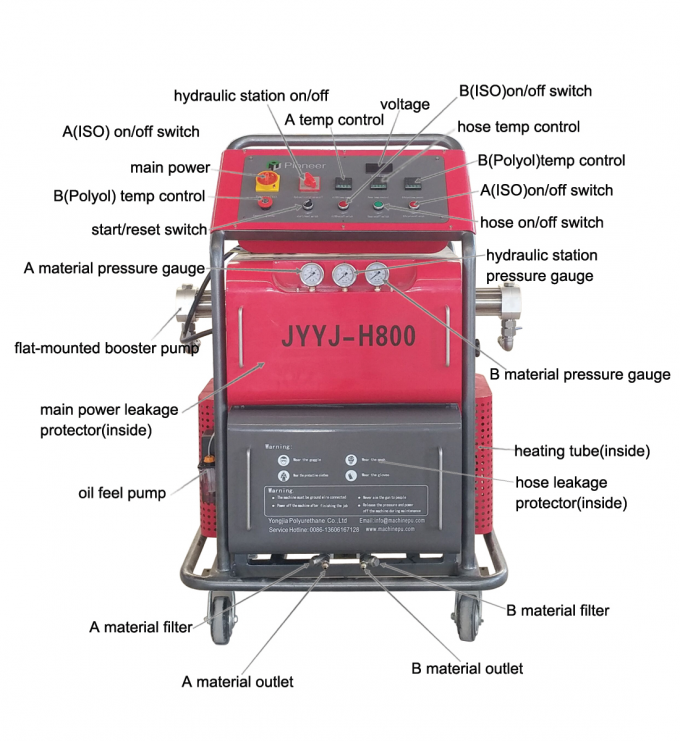

Main Features of Polyurethane PU Spray Foam Machine:

1. Equipped with air cooling system to reduced oil temperature, hence offer protection for the motor and pump and save oil.2. Hydraulic station works with accumulator, making the system smaller and lighter, guaranteeing the stable pressure for the system.3. Flat-mounted booster pump makes A and B material pumps simultaneously,making sure pressure stability.4. The main frame is made from seamless steel tube so it is more corrosion resistant amd can bear with higher pressure.5. Separate leakage protector from main power and hose, safeguarding the operator effectively.6. Equipped with emergency switch system, help operator deal with emergencies rapidly;8. Reliable & powerful 380V heating system enables rapid warming of raw materials to the best state, making sure it perform well in cold condition;9. Humanized design with equipment operation panel, super easy to get the hang of it;10. Feeding pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.11. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;Applications Spraying PU foam for insulation: building exterior wall coating, interior wall coating, roof spray, truck interior spray, tank body coating, bathtub root spray, industrial anti corrosion, etc.Sparying for waterproof, anti corrosion and rust prevention: Polyurea and Polyurethane foam spray on roof, truck, pipe, and other products for waterproof, anti corrosion and rust prevention. NoticePolyurethane foam system is formed from different centralized chemical substances, some of which can be hazardous to humans if not used properly. Thus necessary precaution is highly required while in use. It generates fine particles during the use of polyurethane spray equipment. Operators must take good precautions to protect respiratory and eyes and other important body parts. The following precautions measures is highly required while using polyurethane spray equipment: ● Protective mask required Splash-proof goggles requiredChemical Protective ClothingProtection Gloves requiredProtective footwear required
