Polyurea Waterproofing Spray Machine Polyurethane Spray Foam Machine

Short Description:

Product Detail

Product Tags

Name: Pu Foam Spray Machine Material: Polyurethane Or Polyurea
POWER SOURCE: 3-phase 4-wires 380V 50HZ HEATING POWER (KW): 30
AIR SOURCE (min): 0.5~0.8Mpa≥0.5m3 Ratio Between A And B: 1 : 1
MAXIMUM OUTPUT (Mpa): 36 Matrial A:B=: 1;1
High Light:

Polyurea waterproofing spray machine


air cooling waterproofing spray machine


waterproofing polyurethane spray machine

China Polyurea Waterproofing Spray Machinery Equipment Polyurethane Spray Foam Machine

Main Features of Polyurethane PU Spray Foam Machine:

1. Equipped with air cooling system to reduced oil temperature, hence offer protection for the motor and pump and save oil.2. Hydraulic station works with accumulator, making the system smaller and lighter, guaranteeing the stable pressure for the system.3. Flat-mounted booster pump makes A and B material pumps simultaneously,making sure pressure stability.4. The main frame is made from seamless steel tube so it is more corrosion resistant amd can bear with higher pressure.5. Separate leakage protector from main power and hose, safeguarding the operator effectively.6. Equipped with emergency switch system, help operator deal with emergencies rapidly;8. Reliable & powerful 380V heating system enables rapid warming of raw materials to the best state, making sure it perform well in cold condition;9. Humanized design with equipment operation panel, super easy to get the hang of it;10. Feeding pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.11. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;

Technical Parameters: Power source: 3-phase 4-wires 380V 50Hz Heating power:30KW Driven mode: pneumatic Air source: 0.5~0.8 MPa ≥1.2m³/min Raw output: 2~17 kg/min Maximum output pressure: 36Mpa AB material output ratio: 1:1

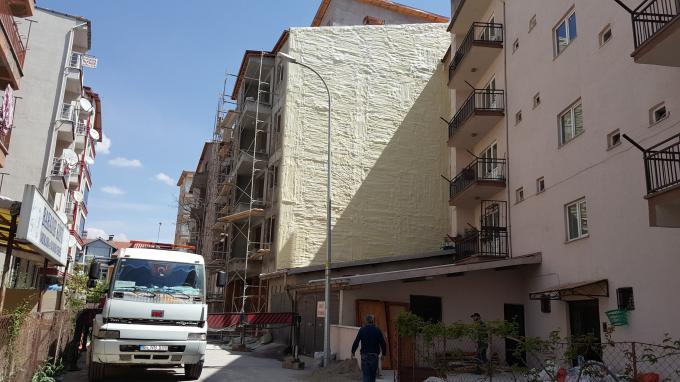

 Product Description Of Polyurethane Spray Foam Insulation Machine: This equipment is can be used for various construction environment with spraying a variety of two-component spray materials and has been widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal, roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and etc. Applications Spraying PU foam for insulation: building exterior wall coating, interior wall coating, roof spray, truck interior spray, tank body coating, bathtub root spray, industrial anti corrosion, etc. Sparying for waterproof, anti corrosion and rust prevention: Polyurea and Polyurethane foam spray on roof, truck, pipe, and other products for waterproof, anti corrosion and rust prevention.
