Pneumatic PU Foam Spray Insulation Injecting Equipment Polyurethane Spray Foam Machine
| Name: | Pu Foam Spray Machine | Material: | Polyurethane Or Polyurea |
|---|---|---|---|
| POWER SOURCE: | 3-phase 4-wires 380V 50HZ | HEATING POWER (KW): | 11 |
| AIR SOURCE (min): | 0.5~0.8Mpa≥0.9m3 | MAXIMUM OUTPUT (Mpa): | 11 |
| Matrial A:B=: | 1:1~1:2 (adjusted) | ||
| High Light: |
Pneumatic PU Foam Spray machine, Pneumatic Polyurethane Spray Foam Machine, Polyurea PU Foam Injection machine |
||
Pneumatic PU Foam Spray Insulation Injecting Equipment Polyurethane Spray Foam Machine
Main Features of spray foam insulation Machine:
1. pneumatic supercharging device, with small volume, light weight, low failure rate, simple operation, easy operation and other great features;2. adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;3. minimizing spraying congestion with multi-feedstock device;4. multi-leakage protection system to protect the safety of the operator;5. equipped with emergency switch system, help operator deal with emergencies rapidly;6. great 380V heating system enables rapid warming of raw materials to the best state, speeds up normal operation progress;7. digital counting system can understand original consumption timely;8. humanized design with equipment operation panel, super easy to get the hang of it;9. the latest spraying gun has great features like small volume, light weight, low failure rate, etc;10. lifting pump adopts big change ratio method, the winter also can easily feed raw materials high viscosity.
| SPECIFICATIONS FOR JYYJ-Q200(K) PU Spray Machine | ||
| Parameter | Raw material | polyurethane |
| Features | A:B ratio can be adjusted(1:1~1:2) | |
| Power source | 3-phase 4-wires 380V 50HZ | |
| Heating power | 11KW | |
| Driven mode | pneumatic | |
| Air source | 0.5-0.8 MPa ≥0.9m³/min | |
| Raw output | 2-12 kg/min | |
| Maximum output pressure | 11MPA | |
| Poly and ISO material output ratio | 1:1~1:2 (adjusted) | |
| Spare parts | Spray gun | 1 Set |
| Heating hose | 15-120 meters | |
| Spray gun connector | 2 m | |
| Accessories box | 1 | |
| Instruction book | 1 | |

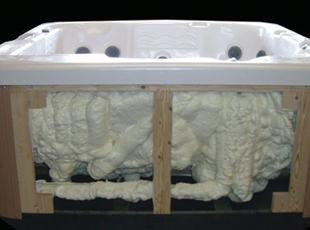

Applications 1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks,tank, etc.2. Casting: solar water heaters,tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.
