Waterproof Polyurea Polyurethane Spray Foam Machine

Short Description:

Product Detail

Product Tags

Product Type: Foam Net, PU Spray Foam Machine Machine Type: Foaming Machine
Voltage: 380V Dimension(L*W*H): Customizable
Power (kW): 9 Weight (KG): 0.8 KG
Key Selling Points: Easy To Operate After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Turkey, Pakistan, India Showroom Location: Turkey, Pakistan, India
Applicable Industries: Manufacturing Plant Marketing Type: Hot Product 2019
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 YEAR Core Components: Bearing, PLC
Name: Polyurea Spray Machine Mix Head: Mix Evenly, No Bubble
Injection Pressure: 0.01-0.1Mpa Injection Time: 0.5~99.99S (correct To 0.01S)
Temperature Control: ±2℃ Repeated Injection Accuracy: ±1%
Application: Spraying And Coating Equipped Pipe Length: 15meters Heating Pipe
Ratio Between A And B: 1:1 Port: Shanghai For Polyurea Spray Machine
High Light:

Polyurea Polyurethane Spray Foam Machine


0.01Mpa Polyurethane Spray Foam Machine


35Mpa polyurea spray machine

High Quality Waterproof Polyurea Spray Machine With Polyurea Spray GunProduct Description The new spray gun is a dual-purpose gun for spraying and irrigation. The gun has the characteristics of light weight, convenient use, fewer wearing parts, more uniform and fine atomization, and more reasonable structure design of the gun. Various types of round spray, flat spray and perfusion gun cores are interchangeable and have a wide range of applications. It is currently a leading multifunctional spray and irrigation gun in the field of polyurethane equipment.

The standard configuration
Spray gun: 1
Accessories: 1 set
Tools: 1 set
Shipping parameters
Dimensions and weight (net) 330mm×230mm×140mm (length×width×height)
Host weight 2.62Kg
technical parameter
Maximum fluid working pressure: 35Mpa
Air inlet pressure: 0.4~0.8Mpa
Trachea size: Φ10×1
Working flow: 1~12Kg/ min
Tip types: round spray, flat spray, perfusion
Cleaning method: air self-cleaning
Whole gun weight: 0.8kg

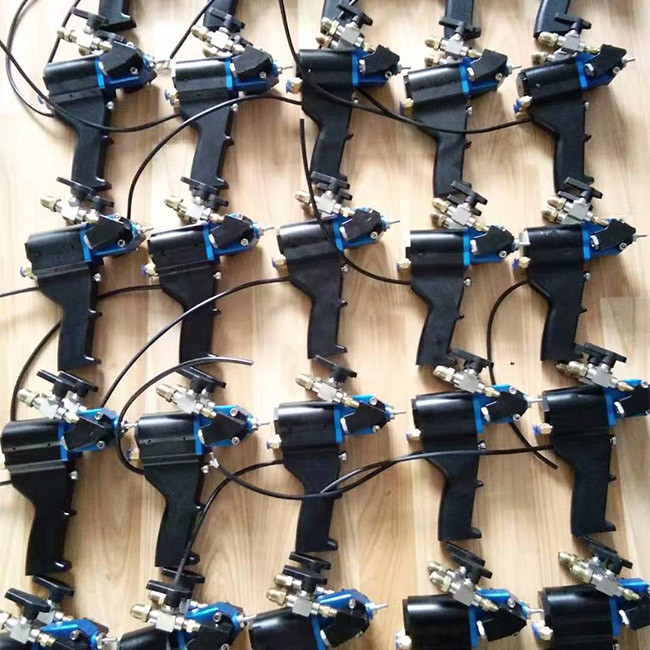

Main Features of Polyurethane PU Spray Gun:

1. The gun body is made of high-quality alloy material, which is light in weight and durable;
2. All parts of the gun body adopt fine carving and fine turning technology, which avoids the defect problem that cannot be solved by traditional casting technology;
3. The surface of the gun body adopts special treatment, strong acid, strong alkali and gun washing liquid will not corrode the surface;
4. Air material split design is adopted to avoid the problem of gun body blockage to the greatest extent;
5. The mixing chamber and the friction pair are made of imported alloy materials, and are processed by special treatment, which is durable;
6. Smooth one-way valve design to avoid backflow of raw materials caused by pressure deviation and blockage;
7. The filtering function of the double-side filter screen reduces the clogging of the spray gun;
8. The mixing chamber and nozzle adopt separate design, which makes replacement and maintenance easier and more convenient;
9. It is suitable for spraying and pouring, one gun has multiple uses, and can realize quick replacement of circular spraying and fan spraying;

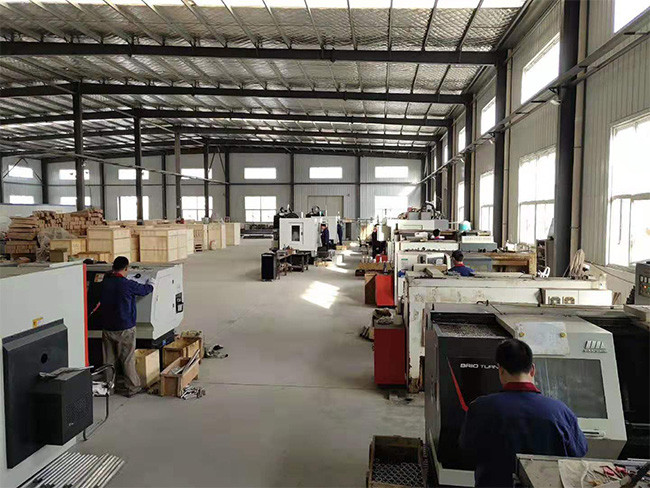

10. The electric control is easy to start and operate, suitable for intelligent control systems. Our Factory
