Stainless Steel Helmet 500L High Pressure PU Foaming Machine

Short Description:


Product Detail

Product Tags

Weight (KG): 2000 KG Condition: New
Product Type: Foam Net Feeding System: Automatic Feeding System
Machine Type: Foaming Machine Voltage: 380V
Dimension(L*W*H): 4100(L)*1250(W)*2300(H)mm Power (kW): 9kW
Warranty: 1 YEAR After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Key Selling Points: Automatic After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Turkey, Pakistan, India Showroom Location: Turkey, Pakistan, India
Applicable Industries: Manufacturing Plant Strength 1: Self-cleaning Filter
Strength 2: Precise Metering Control System: PLC Control System
Foam Type: Flexible Foam Output: 16-66g/s
Tank Volume: 250L Name: Polyurethane Machine
Raw Material: Polyol /isocyanate 1:1 Port: Ningbo For Insulation Foam Machine
High Light: 500L High Pressure PU Foaming Machine

500L polyurethane foam machine

Helmet High Pressure PU Foaming Machine

Polyurethane PU Molding Pouring Injection Foaming High Pressure Machine For Football Helmet

Product Features of High Pressure PU Machine:

1. Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving;
2. Adding material sample test system, which can be switched freely without affecting normal production, saves time and material;
3. Low speed high precision metering pump, accurate ratio, random error within ±0.5%;
4. Material flow rate and presure adjusted by converter motor with variable frequency regulation, high accuracy, simple and rapid ration adjusting;
5. High-performance mixed device, accurately synchronous materials output, even mixture. New leakproof structure, cold water cycle interface reserved to ensure no blockage during long downtime;
6. Adopting PLC and touch screen man-machine interface to control the injection, automatic cleaning and air flush, stable performance, high operability, automatically distinguish, diagnose and alarm abnormal situation, display abnormal factors.

Product Description:

Polyurethane foaming machine, has the economical, convenient operation and maintenance, etc, can be customized according to customer’s request various pours out of the machine. This polyurethane foaming machine uses two raw materials, Polyol and Isocyanate. The requirement of high pressure machine is more and more important in Polyurethane production fields. This type of PU foam machine can be used in various industries, such as daily necessities, automobile decoration, medical equipment, sports industry, leather footwear, packaging industry, furniture industry, military industry.

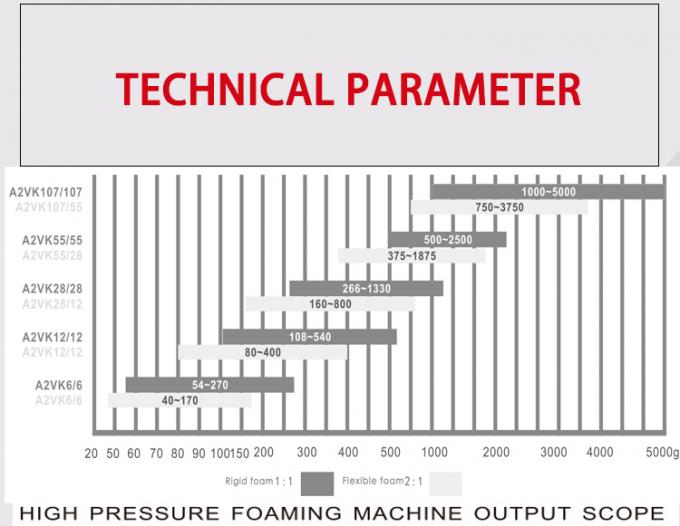

No. Item Technical parameter
1 Foam application Integral Skin (ISF) Helmet
2 Raw material viscosity(22℃) POLY ~2500MPas ISO ~1000MPas
3 Injection pressure 10-20Mpa(adjustable)
4 Output (mixing ratio 1:1) 270~1300g/min
5 Mixing ratio range 1:5~5:1(adjustable)
6 Injection time 0.5~99.99S(correct to 0.01S)
7 Material temperature controlling error ±2℃
8 Repeat injection accuracy ±1%
9 Mixing head Four oil house,double oil cylinder
10 Hydraulic system Output: 10L/min System pressure 10~20MPa
11 Tank volume 500L
15 Temperature control system Heat: 2×9Kw
16 Input power Three-phase five-wire 380V

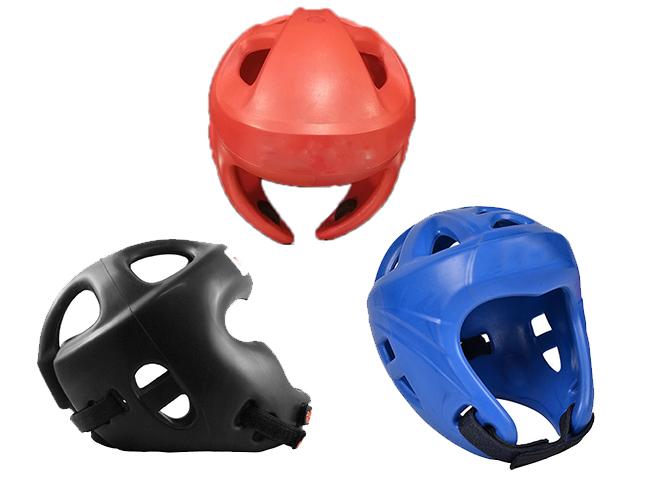

 Features of PU Helmet Application: 1) It is extremely highly anti-impact, light weighted, prevent from damage.
2) Good shock resistance/good wooliness with tear resistance, elasticity with excellent retractivity.

Other Integral Skin ProductPolyurethane integral skin foams find wide application as structural materials.Integral skin foam is used in a number of market applications,including automotive interiors,furniture components,household leisure goods and health care products,such as wheelchairs.

Our Factory:

Yongjia Polyurethane Co., Ltd. is a professional machinery manufacturer in PU industry combined with design, development, production. Founded in 2013, the construction area of over 10,000 square meters, is the China forefront polyurethane technology company. At present our company’s products range covers:high pressure pouring machine, low pressure foaming machine, PU spraying foam machine, PU elastomer casting machine, also we customize to make production line according to clients requirement,like in flexible foam system we make the lines: PU shoe /sole/insole production line(Egypt),anti-fatigue mat production line(India),memory pillow production line(Iran),Albania,elastic ball production line(Mexico),car seat and cushion production line(Morocco),PU slow rebound ear plugs line(India);rigid foam system we make the line:PU decorative molding crown cornice line(Saudi Arab), float trowel making line(Saudi Arab, Pakistan), cold storage panel production line(Uzbekistan),sandwich panel production line(Iraq).Elastomer line:forklift wheel casting line(lran);coal sieve screen select line(Russia).

Visitors and Exhibitions:

We participated in many exhibitions of polyurethane raw materials, polyurethane foam products and polyurethane PU foam machines. Our products left a very good impression to everyone at the show, some customers even placed orders on the spot. Also, every year, many customers will come to visit our factory or to check their machine after ordering.
