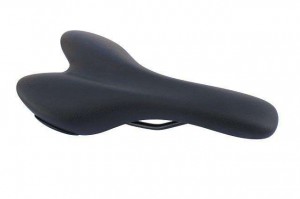

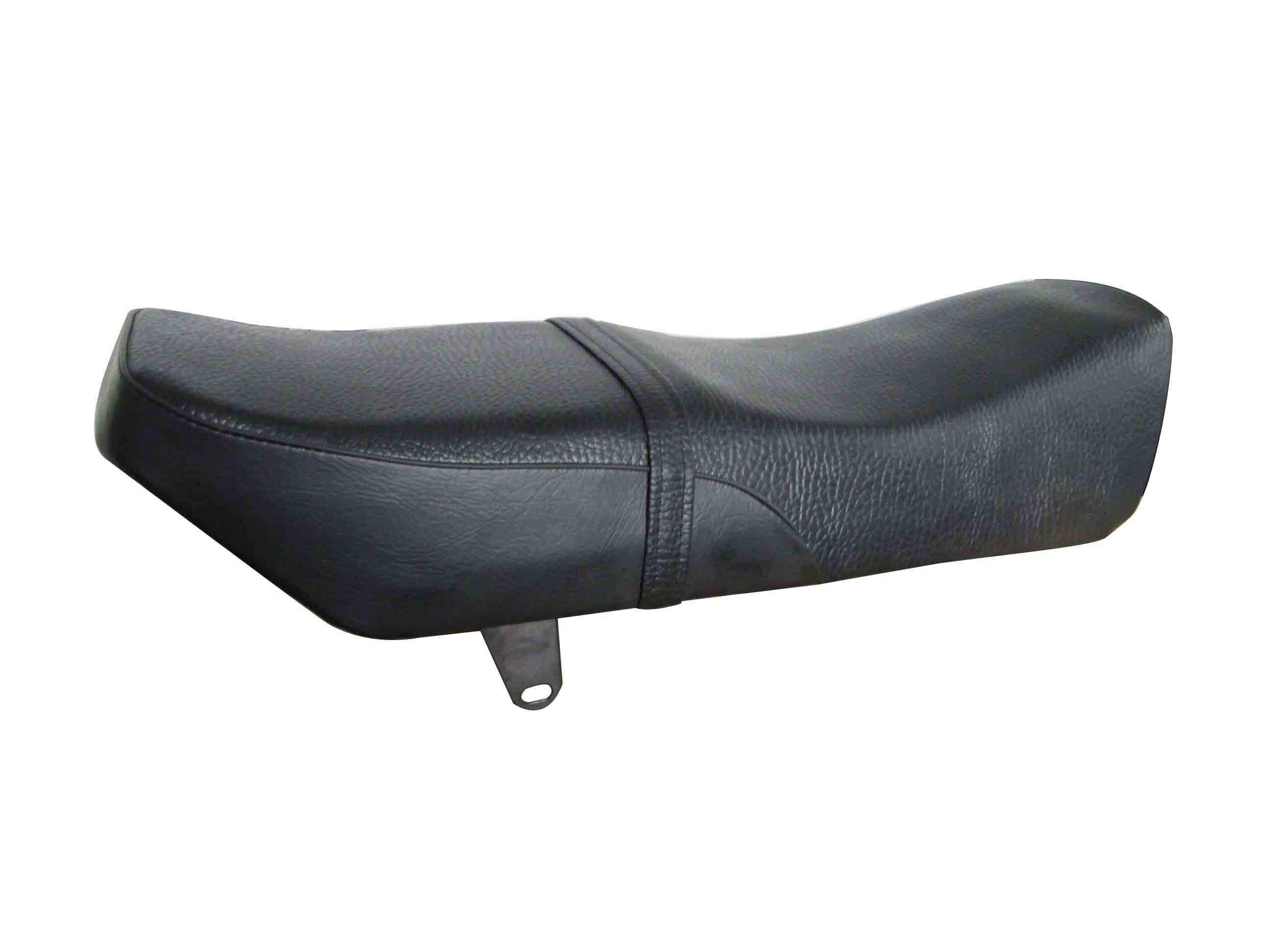

High Pressure Foaming Machine For Motorcycle Seat Bike Seat

Short Description:

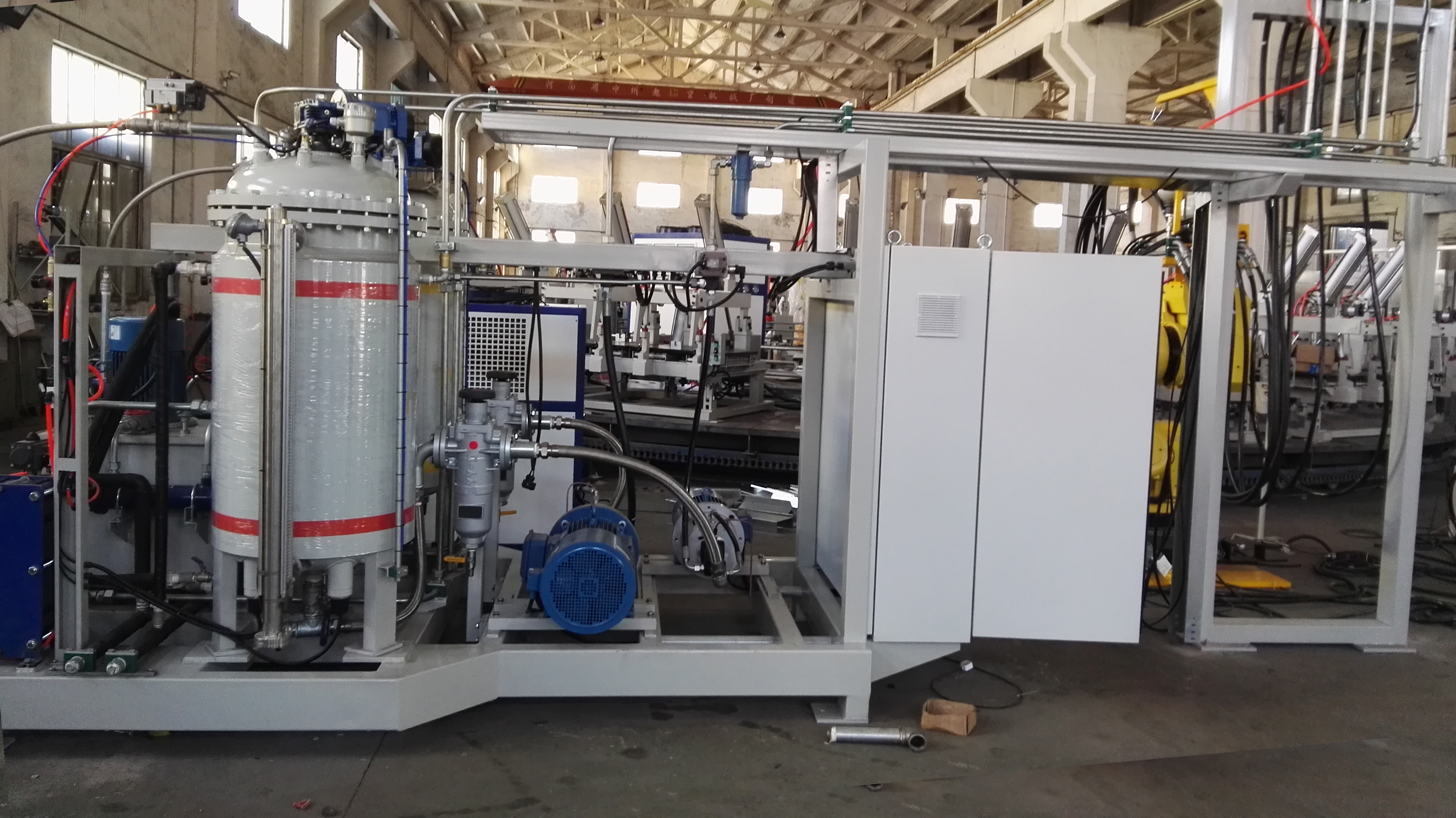

High pressure foaming machine is a special equipment for filling and foaming of polyurethane foam. The high-pressure foaming machine is suitable for the processing of automobile interior, bicycle and motorcycle seat sponges, and also for the manufacture of thermal insulation pipes.It is used for automobile interior decoration, exterior wall thermal insulation coating, thermal insulation pipe manufacturing, bicycle and motorcycle seat cushion sponge processing. High pressure foaming machine has excellent thermal insulation performance, even better than polystyrene board.

Send email to us

Product Detail

Product Tags

Feature

In order to facilitate on-site management and personnel operation, there are eight main menus in the touch screen, namely: main control page, parameter setting page, station setting page, recipe setting page, flow test page, temperature setting page, input monitoring page and Output monitoring page.

1. Process parameters and display: metering pump speed, injection time, injection pressure, mixing ratio, date, temperature of raw materials in the tank, fault alarm and other information are displayed on a 10-inch touch screen.

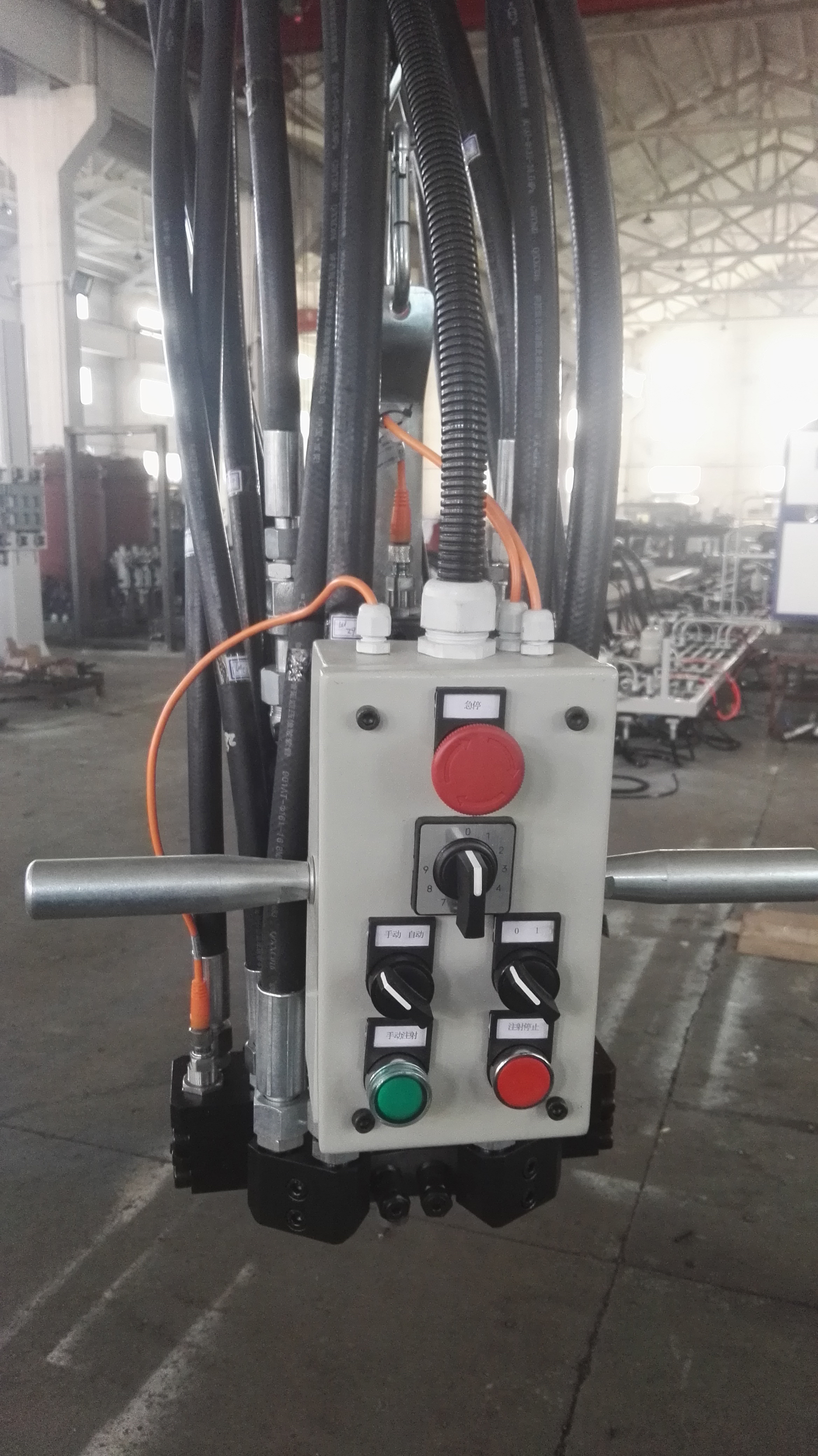

2. The high and low pressure switching function of the foaming machine adopts the self-developed pneumatic three-way rotary valve to switch. There is an operation control box on the gun head. The control box is equipped with a station display LED screen, an injection button, emergency Stop button, cleaning rod button, sampling button. And it has a delayed automatic cleaning function. One-click operation, automatic execution.

3. The equipment is equipped with production management control software, which is convenient for production management. Mainly refers to the proportion of raw materials, injection times, injection time, station formula and other data.

4. The device has a flow test function: the flow rate of each raw material can be tested individually or at the same time. The PC automatic ratio and flow calculation function is used in the test process. The user only needs to input the desired raw material ratio and total injection amount, and then input the current The actual measured flow, click the confirmation switch, the equipment will automatically adjust the required speed of the A/B metering pump, and the accuracy error is less than or equal to 1g.

Detail

1) The bicycle saddle foaming machine matched with the disc has the function of continuous automatic material injection, free of manual operation and solvent-free cleaning, and has extremely high production efficiency.

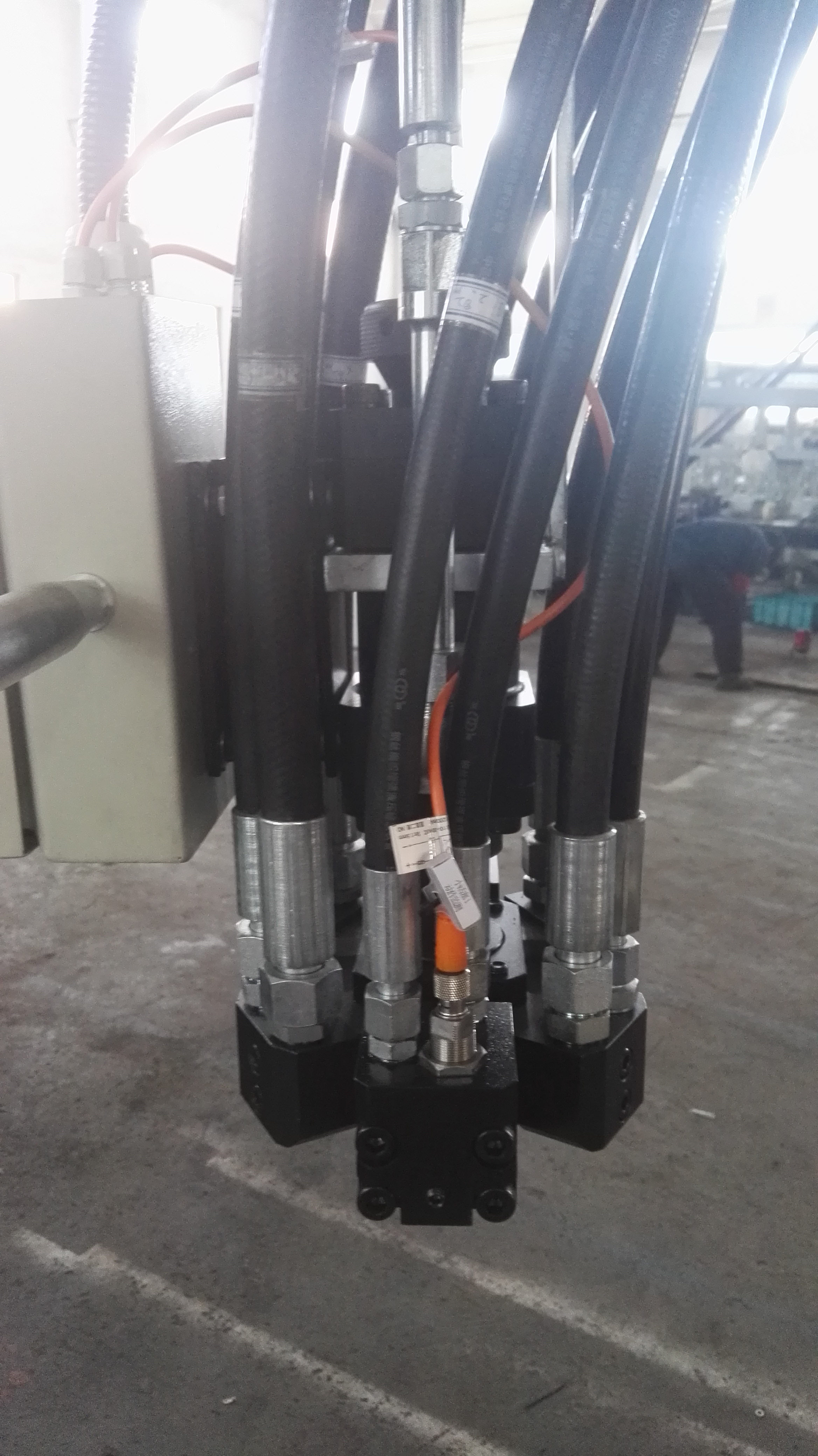

2) The mixing head is light and dexterous, the structure is special and durable, the material is synchronously discharged, the stirring is uniform, and the nozzle will never be blocked.

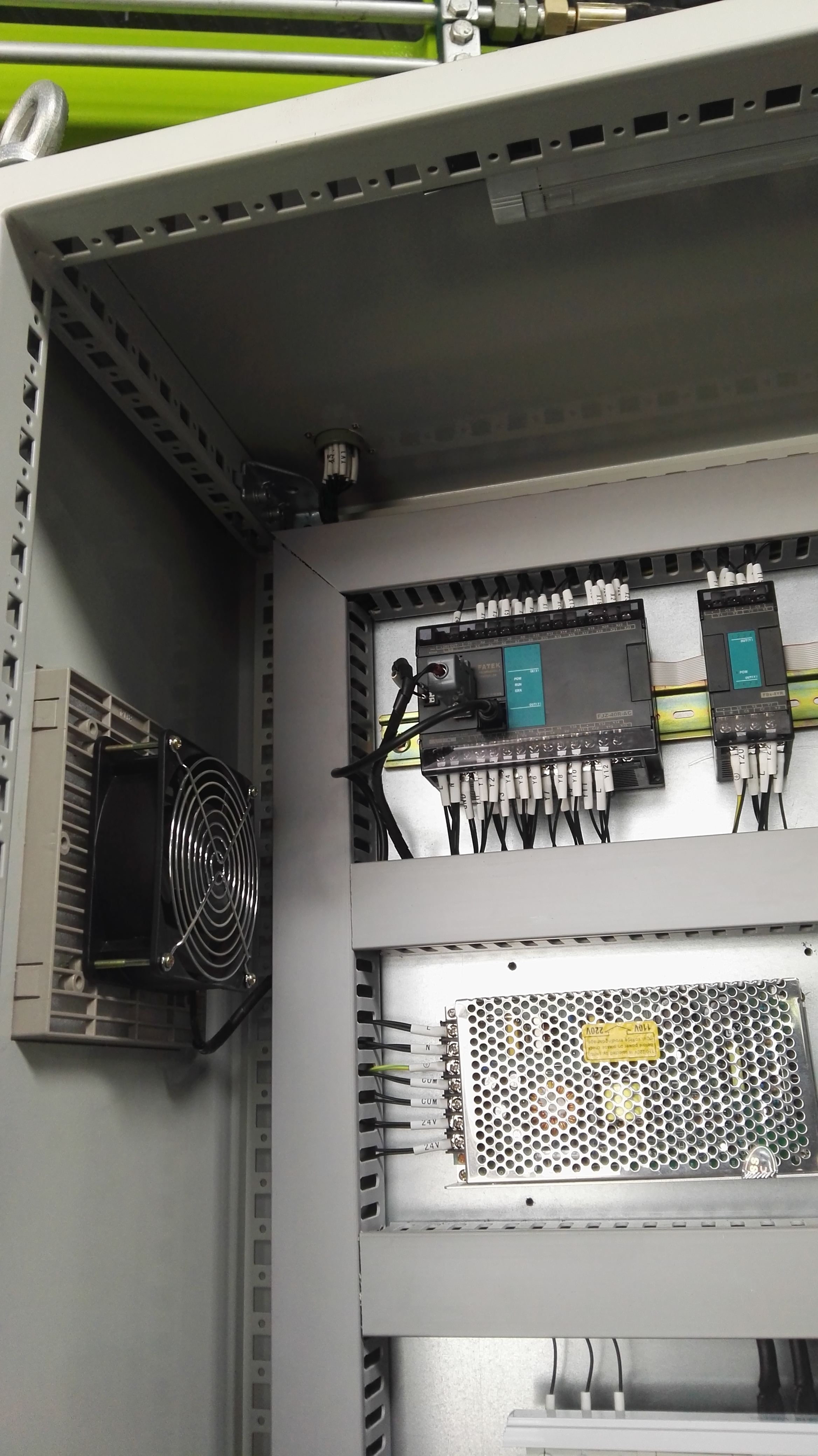

3) Microcomputer system control, with humanized automatic cleaning function, high timing accuracy.
4) The metering system adopts high-precision metering pump, which has high metering accuracy and is durable.
