Human Body Anatomy Model 250L Polyurethane Molding Machine

Short Description:

Product Detail

Product Tags

Processing Type: Foaming Machine Condition: New
Product Type: Foam Net Machine Type: Foaming Machine
Voltage: 380V Dimension(L*W*H): 4100(L)*1250(W)*2300(H)mm
Power (kW): 9kW Weight (KG): 2000 KG
Warranty: 1 YEAR After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Key Selling Points: Automatic After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Turkey, Pakistan, India Showroom Location: Turkey, Pakistan, India
Applicable Industries: Manufacturing Plant Strength 1: Self-cleaning Filter
Strength 2: Precise Metering Feeding System: Automatic Feeding System
Control System: PLC Control System Foam Type: Flexible Foam/ Rigid Foam
Output: 16-66g/s Tank Volume: 120L
Name: Polyurethane Machine Raw Material: Polyol /Isocyanate
Port: Ningbo For Foam Molding Machine
High Light:

250L polyurethane molding machine


0.01s polyurethane foam filling machine


9kW polyurethane molding machine

Polyurethane PU Foam Molding Foaming Machine For Human Body Anatomy ModelProduct Description  Polyurethane foaming machine is a special equipment for infusing and foaming polyurethane foam. As long as the performance indicators of polyurethane components (isocyanate components and polyether polyol components) meet the requirements of the formula. Through this equipment, uniform and qualified foam products can be produced. It is made of polyether polyol and polyisocyanate in the presence of a variety of chemical additives such as blowing agent, catalyst, emulsifier, etc., through chemical reaction to foam to prepare foam.

No. Item Technical parameter
1 Foam application Window mannequin
2 Raw material viscosity(22℃) POLY ~2500MPas ISO ~1000MPas
3 Injection pressure 10-20Mpa(adjustable)
4 Output (mixing ratio 1:1) 750~3750g/s
5 Mixing ratio range 1:5~5:1(adjustable)
6 Injection time 0.5~99.99S(correct to 0.01S)
7 Material temperature controlling error ±2℃
8 Repeat injection accuracy ±1%
9 Mixing head four oil house,double oil cylinder
10 Hydraulic system Output: 10L/min system pressure 10~20MPa
11 Tank volume 250L
12 Input power three-phase five-wire 380V

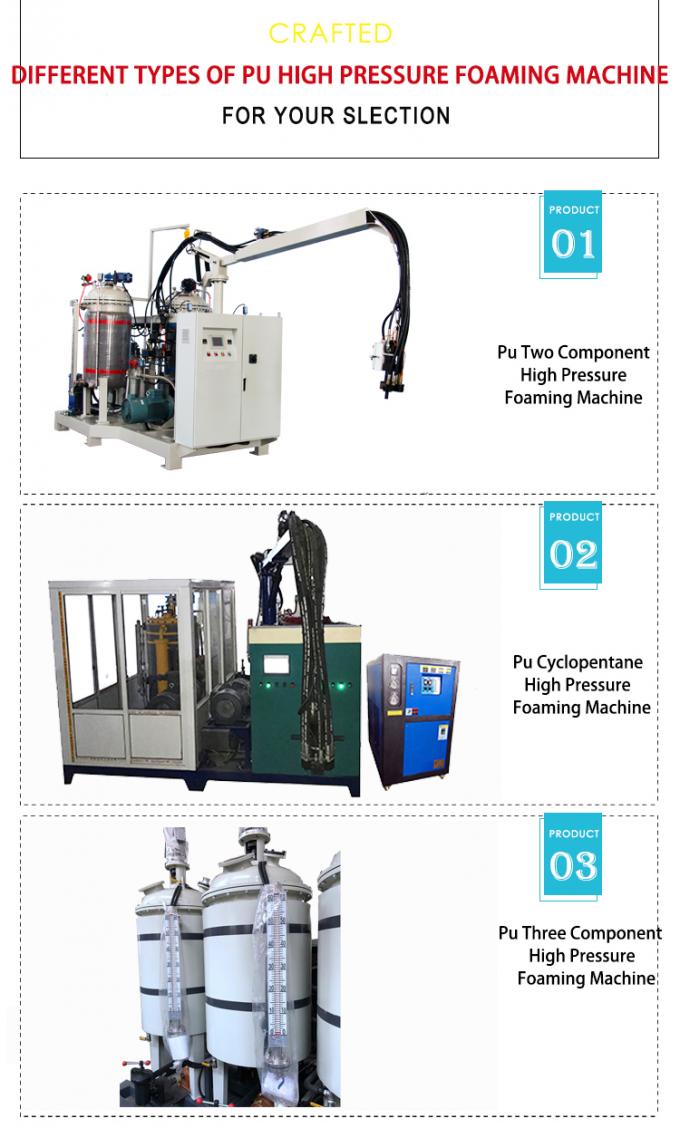

Product Features of High Pressure PU Machine:

1. Imported high-pressure pouring head, powerful atomization and mixing, long service life, no waste, no cleaning agent, energy saving and environmental protection.
2. The variable pressure gauge pump has good stability, PLC control hydraulic station low pressure cycle high pressure mixed injection.
3. PLC programming control, large color screen operation man-machine interface, temperature and pressure collection by high-precision module, operation control is more precise.
4. The material tank is made of acid-resistant 304 stainless steel inner liner, the liquid level is controlled automatically, and the cooling cycle is constant temperature to ensure that the raw materials work at the best temperature, thereby effectively ensuring the quality of post-production products.
5. The whole machine can walk along the track, front and back freely, speed frequency conversion, easy cantilever swing of the pouring head, quick and convenient pneumatic adjustment of height.   Applications: PU polyurethane high pressure machine is also suitable for the production of polyurethane pillow, steering wheel, bumper, self skin, high reilience, slow rebound, toys, fitness equipment, insulation layer, bicycle cushion, rigid foam, cold storage panel, medical equipment, elastomer, shoe sole, ect…Clothing mannequins are a new application field in the polyurethane industry. Models are one of the essential items in a clothing store. They can dress up the store and display the highlights of the clothing. The existing clothing models on the market are made of fiberglass fiber, plastic and other materials. Fiberglass fiber has poor wear resistance, is relatively brittle, and has no elasticity. Plastics have defects such as poor strength and short life. The polyurethane garment model has the advantages of good wear resistance, good strength, elasticity, good cushioning performance, and high degree of simulation.  Packing & Delivery

Size 4100*1250*2300(mm)
Weight 1.2 T
      Packaging Details The normal package is wooden box(Size: 2600*1500*2600). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Visitors and Exhibitions

We participated in many exhibitions of polyurethane raw materials, polyurethane foam products and polyurethane PU foam machines. Our products left a very good impression to everyone at the show, some customers even placed orders on the spot.
