Shutter Door 380V Low Pressure Polyurethane Foam Machine

Short Description:


Product Detail

Product Tags

Voltage: 380V Machine Type: Injection Machine
Dimension(L*W*H): 4100(L)*1250(W)*2300(H)mm Power (kW): 168KW
Weight (KG): 1200 KG After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Key Selling Points: Automatic After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Turkey, Pakistan, India Showroom Location: Turkey, Pakistan, India
Applicable Industries: Manufacturing Plant Name: Polyurethane Foam Filling Machine
Filter: Self-cleaning Filter Material Feeding: Automatic Feeding System
Control System: PLC Metering Pump: Precise Metering
Foam Type: Rigid Foam Tank Volume: 250L
Power: Three-phase Five-wire 380V Port: Ningbo For Polyurethane Foam Filling Machine
High Light:

380V Polyurethane Foaming equipment

,

250L Low Pressure Polyurethane Foam Machine

,

380V Low Pressure Polyurethane Foam Machine

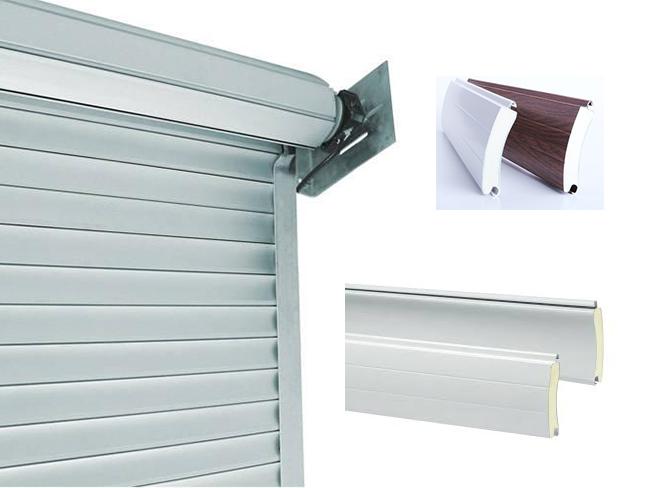

PU Polyurethane Rigid Foam Filling Injection Machine For Shutter Door Application: The door panel is made of color-coated steel coil or aluminum alloy plate, filled with imported polyurethane foam material, which is strong and durable. The interior and exterior door panels can be sprayed in a variety of colors to match the tone of the building’s periphery. The door leaf can be equipped with oval or square windows to increase light transmittance. You can open the door and the door to facilitate passage.The sliding door of polyurethane thermal insulation door panel has good thermal insulation effect and is an ideal choice for exterior doors of factories and logistics. Product Description: Polyurethane low-pressure foaming machine is widely used in multi-mode continuous production of rigid and semi-rigid polyurethane products, such as: petrochemical equipment, directly buried pipelines, cold storage, water tanks, meters and other thermal insulation and sound insulation equipment craft products.

No. Item Technical parameter
1 Foam application Rigid Foam Shutter Door
2 Raw material viscosity(22℃) POL ~3000CPS ISO ~1000MPas
3 Injection flow rate 6.2-25g/s
4 Mixing ratio range 100:28~48
5 Mixing head 2800-5000rpm, forced dynamic mixing
6 Tank Volume 120L
7 Input power Three-phase five-wire 380V 50HZ
8 Rated power About 11KW
9 Swing arm Rotatable 90°swing arm, 2.3m (length customizable)
10 Volume 4100(L)*1300(W)*2300(H)mm, swing arm included
11 Color( customizable) Cream-colored/orange/deep sea blue
12 Weight About 1000Kg

Features of Low Pressure Foam Machine: 1. The pouring amount of the pouring machine can be adjusted from 0 to the maximum pouring amount, and the adjustment accuracy is 1%.
2. This product has a temperature control system that can automatically stop heating when the specified temperature is reached, and its control accuracy can reach 1%.
3. The machine has solvent cleaning and water and air purging systems.
4. This machine has an automatic feeding device, which can feed at any time. Both A and B tanks can hold 120 kg of liquid. The barrel is equipped with a water jacket, which uses water temperature to heat or cool the material liquid. Each barrel has a water sight tube and a material sight tube.
5. This machine adopts a cut-off door to adjust the ratio of A and B material to liquid, and the ratio accuracy can reach 1%.
6. The customer prepares an air compressor, and the pressure is adjusted to 0.8-0.9Mpa to use this equipment for production.

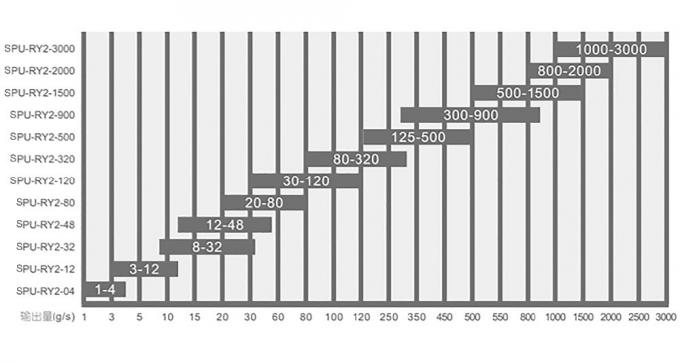

7. Time control system, the control time of this machine can be set between 0-99.9 seconds, and the accuracy can reach 1%.Low Pressure Machine Output-Rigid Foam

Material tank:

Double interlining heating material tank with insulation outer layer, heart rapidly, low energy consumption. Liner, upper and low head all use stainless 304 material, upper head is precision machinery sealing equipped to make sure the air tight agitation.

Mixing head:

Adopting floating mechanical seal device, high shearing spiral mixing head to make sure the even mixing within required adjusting range of casting mixing ratio. Motor speed is accelerated and frequency controlled through triangle belt so to realize the high speed rotation of mixing head in mixing chamber. Electrical control system: 1. Fully controlled by SCM (Single Chip Microcomputer).
2. Using PLC touch screen computer. Temperature,pressure, revolving speed display system.
3. Alarm function with acoustic warning.

Raw Material Formula Solution Support:

We have our own technical team of chemical engineers and process engineers, all of whom have more than 20 years of experience in PU industry. We can independently develop raw material formulas like polyurethane rigid foam, PU flexible foam, polyurethane integral skin foam and polyurea that meet all customer’ s requirements.   Packing & Delivery: For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.

Our Team:

We have professional team of mechanical engineer, chemical engineer, process engineer, etc, all of them have more than 10 years experience in PU foam filed. Meanwhile, our salemen are all professional, they are young but hard-working and experienced. We can meet all of your requirements for PU foam product, pu mold or PU foam machines.

Our Service:

1. Professional and patient consulting service to help you find the suitable solution.
2. Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.
3. Powerful control of the machine production schedule and quality, and keep you posted about details in time.
4. Free training in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.
5. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
6. For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.
7. For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that .
8. We give an accessory box for free.
9. We offer development solutions for raw material formulations.
10. If you need to visit the factory, we will arrange for personnel to pick up the airport. Real Projects: Good Feedback from our Australian client who buy a low pressure PU polyurethane foaming machine.
