Polyurethane PU Plastic Foam Soft Toy Balls Moulding Making Machine

Short Description:

Product Detail

Product Tags

Polyurethane PU Plastic Foam Soft Toy Balls Moulding Making Machine

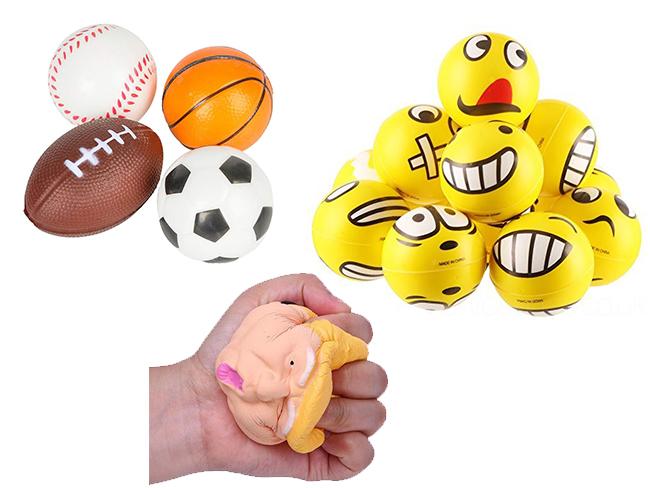

Product Description: PU polyurethane ball production line specializes in the production of various types of polyurethane stress balls, such as PU golf, basketball, football, baseball, tennis and children’s hollow plastic bowling. This PU ball is vivid in color, cute in shape, smooth in surface, good in rebound, long in service life, suitable for people of all ages, and can also customize LOGO, style color size. PU smile balls are popular with the public.

Main Part of the Whole PU Smile Balls Production:

PU low pressure foam machine/ PU high pressure foam dosing machine

Polyurethane foam dosing machines are used in numerous applications in various sectors including construction, furniture, automotive, technical articles, etc.

The machine are equipped with top-quality products and world-renowed brands that allow versatility, reliability and are easy to use.

Our foam equipment is highly customizable and adaptable, it is possible to install numerous types of mixing head supports, such as: swiveling arm, swing arm, articulated arm and many more.

No. Item Technical Parameter
1 Foam application Flexible foam
2 raw material viscosity(22℃) Polyol~3000CPS ISOCYANATE ~1000MPas
3 Injection Output 9.4-37.4g/s
4 Mixing ratio range 100:28~48
5 Mixing head 2800-5000rpm, forced dynamic mixing
6 Tank Volume 120L
7 Metering pump A pump: JR12 Type B Pump: JR6 Type
8 Compressed air requirement dry, oil free P:0.6-0.8MPa Q:600NL/min(Customer-owned)
9 Nitrogen requirement P:0.05MPa Q:600NL/min(Customer-owned)
10 Temperature control system heat:2×3.2kW
11 Input power three-phrase five-wire,380V 50HZ
12 Rated power about 9KW
13 swing arm Rotatable swing arm, 2.3m(length customizable)
14 Volume 4100(L)*1250(W)*2300(H)mm, swing arm included
15 Color( customizable) Cream-colored/orange/deep sea blue
16 Weight 1000Kg

Accept Foam Injection Machine, to make a stress ball, you also need few ball foam molds, pvc transfer printing films, transfer film printing machine and many other supporting equipments.


Rubber foam toy balls, polyurethane foam balls, foam children’s toy balls, and foam educational toy balls are made of natural rubber, with a smooth surface, soft and comfortable feel, vivid and vivid colors, beautiful and cute appearance, durable and resilient Good, safe and non-toxic, with many styles and various sizes.

Packing & Delivery:


1.Are you factory or trading company?

We are professional factory in PU industry with more than 10 years experience, covering high pressure pouring machine,low pressure foaming machine, pu spraying foam machine,pu elastomer casting machine and production line.

2.Where is your factory ?

Our Factory is located in Wuxi city, Jiangsu Province.

3.How can I get your factory?

By air: You can take a plan to WUXI airport from China, if you fly from Korea ,Japan, USA, Singapore, Taiwan, Thailand you will can directly fly to us.
By Train: You can stop at WUXI station, Not WUXI EAST station.

4.Do you provide pick-up service?

Yes, of course. If you are in Wuxi airport or station, we can arrange a special car to pick you up directly to our factory.
