Luggage Wheel 45KW Polyurethane Casting Machine
| Condition: | New | Product Type: | Foam Net |
|---|---|---|---|
| Machine Type: | Foaming Machine | Voltage: | 380V |
| Dimension(L*W*H): | 2300*2000*2300 Mm | Power (kW): | 25~31kW |
| Weight (KG): | 2000 KG | Warranty: | 1YEAR |
| Key Selling Points: | Automation | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey, Pakistan, India | Showroom Location: | Turkey, Pakistan, India |
| Applicable Industries: | Manufacturing Plant, Construction Works | Key Words: | Polyurethane Wheel |
| Mix Head: | Mix Evenly, No Bubble | Injection Pressure: | 0.01-0.1Mpa |
| Injection Time: | 0.5~99.99S (correct To 0.01S) | Temperature Control: | ±2℃ |
| Repeated Injection Accuracy: | ±1% | Color: | Deep Blue/cream Color/red |
| Ratio Between A And B: | 1 : 1 | Raw Material: | Polyol And Isocyanate |
| Port: | Ningbo | ||
| High Light: |
45KW PU casting machine, 150RPM Polyurethane Casting Machine, 45KW Polyurethane Casting Machine |
||

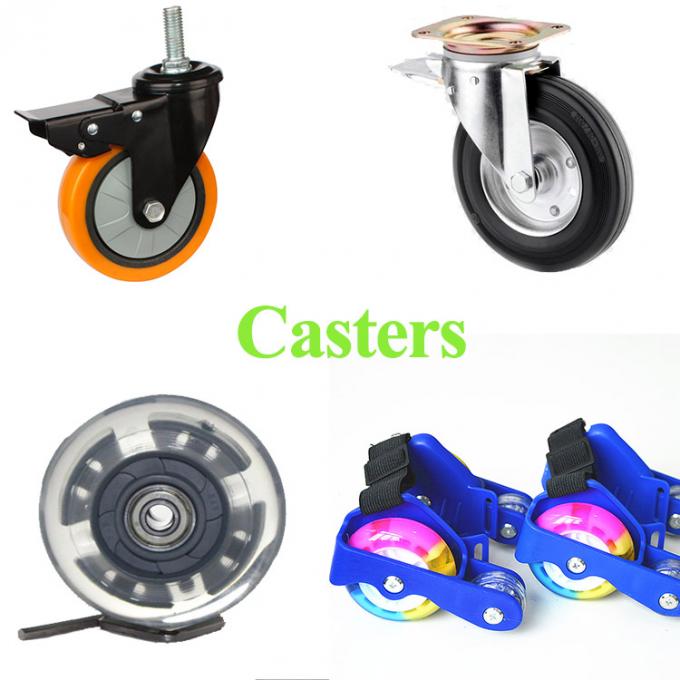

Polyurethane PU Universal Wheel For LuggageApplication: Suitable for PU wheel: The high-tech polyurethane rubber strip is mechanically locked into the polyolefin wheel core, which has high elasticity,
High wear resistance, grease resistance, temperature resistance between -43℃ and 85℃, equipped with integrated precision ball bearings,
Beautiful and very low noise when sliding, suitable for long-distance or frequently moving equipment.
Introduction to PU elastomer casting machine:
Polyurethane elastomer pouring machine is a kind of equipment for producing castable polyurethane elastomer with MOCA or BDO as chain extender. PU elastomer casting machine is suitable for manufacturing various CPU products, such as seals, grinding wheels, rollers, screens, impellers, OA machines, wheel sliding wheels, buffers and so on.
| No. | Item | Technical Parameter |
| 1 | Injection Pressure | 0.1-0.6Mpa |
| 2 | Injection flow rate | 2-5kg/min |
| 3 | Mixing ratio range | 100:6-18(adjustable) |
| 4 | Injection time | 0.5～99.99S (correct to 0.01S) |
| 5 | Temperature control error | ±2℃ |
| 6 | Repeated injection precision | ±1% |
| 7 | Mixing head | Around 5000rpm (4600~6200rpm,adjustable), forced dynamic mixing |
| 8 | Tank volume | 220L/30L |
| A maximum working temperature | 70~110℃ | |
| B maximum working temperature | 110~130℃ | |
| 9 | Cleaning tank | 20L 304# stainless steel |
| 10 | Metering pump | JR50/JR50/JR9 |
| A1 A2 Metering pump displacement | 50CC/r | |
| B Metering pump displacement | 6CC/r | |
| A1-A2-B-C1-C2 PUMPS MAXIMUM SPEED | 150RPM | |
| A1 A2 agitator speed | 23RPM | |
| 11 | Compressed air requirement | Dry, oil free P:0.6-0.8MPa Q:600L/min(Customer-owned) |
| 12 | Vacuum requirement | P:6X10-2Pa(6 BAR) Speed of exhaust:15L/S |
| 13 | Temperature control system | Heating: 18～24KW |
| 14 | Input power | Three-phrase five-wire,380V 50HZ |
| 15 | Heating power | TANK A1/A2: 4.6KW TANK B: 7.2KW |
| 16 | Total power | 34KW |
| 17 | Working Temperature | Room temperature to 200℃ |
| 18 | Swing arm | Fixed arm, 1 meter |
| 19 | Volume | About 2300*2000*2300(mm) |
| 20 | Color (selectable) | Deep blue |
| 21 | Weight | 2000Kg |
PU elastomer casting machine product features:
High temperature resistant low-speed high-precision metering pump, accurate metering, and the random error is within ± 0.5%. The material output is regulated by frequency converter and frequency conversion motor, with high precision pressure and simple and fast speed ratio control. High performance mixing device, adjustable pressure, synchronous and accurate material output and uniform mixing; New mechanical seal structure to avoid backflow problem. Special mixing head high-efficiency vacuum device to ensure that the product is free of bubbles. The heat transfer oil adopts electromagnetic heating mode, which is efficient and energy-saving; Multipoint temperature control system, stable temperature, random error < ± 2 ℃. It adopts PLC and touch screen man-machine interface to control pouring, automatic cleaning and flushing, air purification and stability
Performance. Strong operability, can automatically identify, diagnose, alarm abnormal conditions and display abnormal factors.
It is widely used in the production of cup PU elastomer products with MOCA or BDO as chain extender, such as CPU wheel, caster, roller, sieve plate, impeller, sealing ring, shock absorber, dumbbell, etc. Our factory: Yongjia Polyurethane Co., Ltd. is a professional machinery manufacturing enterprise in polyurethane industry integrating design, development and production. Founded in 2013, with a construction area of more than 10000 square meters, the company is the most cutting-edge polyurethane technology company in China. At present, the company's products include high-pressure pouring machine, low-pressure foaming machine, Pu spraying foaming machine and PU elastomer casting machine, and the production lines can be customized according to customer requirements. For example, in the flexible foaming system, our production lines include PU shoe / sole / midsole production line (Egypt), anti fatigue pad production line (India), memory pillow production line (Iran), Albania Elastic ball production line (Mexico), automobile cushion production line (Morocco), Pu slow rebound earplug production line (India); Hard foaming system our production lines: Pu decorative molding crown and eaves line (Saudi Arabia), floating shovel production line (Saudi Arabia, Pakistan), cold storage board production line (Uzbekistan) and sandwich board production line (Iraq). Elastomer production line: forklift wheel casting production line (lran); Pulverized coal screening production line (Russia).
